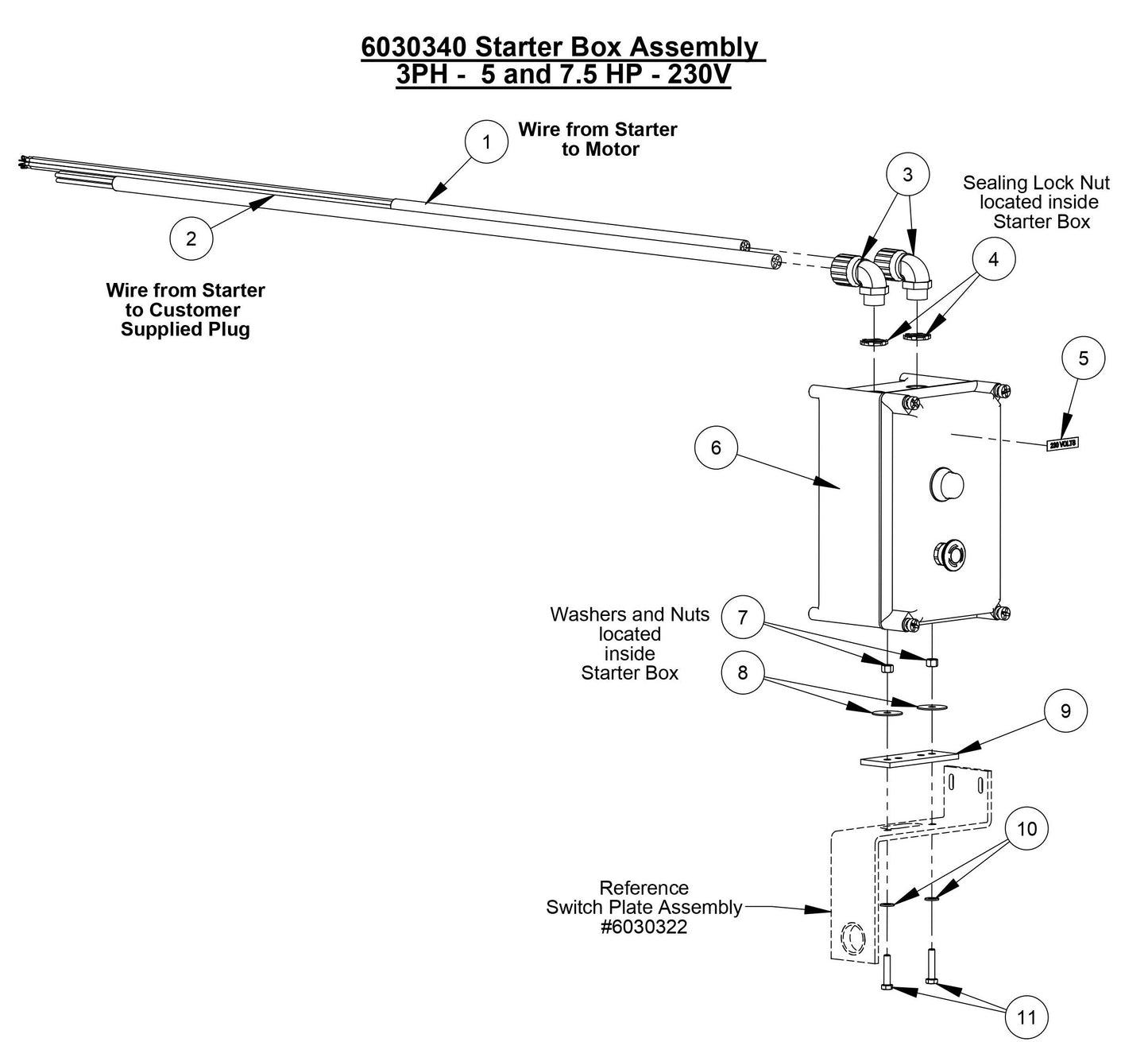

CC800M Starter Box Assembly Parts 3PH - 5 and 7.5 HP - 230V

CC800M Starter Box Assembly Parts 3PH - 5 and 7.5 HP - 230V

  • CC800M Starter Box Assembly 3PH - 5 and 7.5 HP - 230V
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2802052 Cord Connector, 3/4" Thd., .63-75" Cord, 90 Deg. for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$93.67
4
2800050 Lock Nut, 3/4" Sealing for CC1507E Basement Saw Core Cut by Diamond Product
$22.60
5
1800810/11 Voltage Label, 230/460V for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
Call for Price call for price call for price
7
2900039 5/16"-18 Nylock Hex Nut for CC1000 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
1
Diamond Products CORD ASSEMBLY 14/6 X 96" CORD W/16-14 GAGE #10 RING TERMINALS BARE 6070254
$122.76
2
Diamond Products CORD ASSEMBLY 10/4 CORD X 96" 6070253
$75.33
6
Diamond Products STARTER BOX 220V 3 PH CC800 MASONARY SAW 6011553
$1,625.58
8
Diamond Products 5/16"X1-1/2"FENDER WASHER 2900969
$3.99
9
Diamond Products PLATE, 1/4 X 2 X 5 W/4 HOLES 6030183
$22.60
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
