CCE0900 Core Cut Concrete Saw

CCE0900 Core Cut Concrete Saw

  • CCE0900 Core Cut Concrete Saw
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6044318 Main frame weldment for CCE0900 Concrete Saw Core Cut by Diamond Products
$1,048.41
2
6043454 Bearing spacer for CCE0900 Concrete Saw Core Cut by Diamond Products
$24.24
3
6043453 D16 d12.7 X 10L Bushing for CCE0900 Concrete Saw Core Cut by Diamond Products
$10.35
4
6044319 Blade shaft for CCE0900 Concrete Saw Core Cut by Diamond Products
$151.47
5
6043478 D12 d9.5 X 10L Bushing for CCE0900 Concrete Saw Core Cut by Diamond Products
$7.92
7
6043481 Bellow, 25P;Ø40*Ø64*450L(MAX) for CCE0900 Concrete Saw Core Cut by Diamond Products
$139.59
8
6043476 Depth control crank for CCE0900 Concrete Saw Core Cut by Diamond Products
$385.11
9
6043422 Quick release lock pin for CCE0900 Concrete Saw Core Cut by Diamond Products
$50.72
10
6044320 Axle Weldment for CCE0900 Concrete Saw Core Cut by Diamond Products
$255.42
11
6043468 D32 d19 X 5L Spacer for CCE0900 Concrete Saw Core Cut by Diamond Products
$9.60
12
6043467 d19.05 Set collar for CCE0900 Concrete Saw Core Cut by Diamond Products
$16.89
13
6043444 d17 Set collar for CCE0900 Concrete Saw Core Cut by Diamond Products
$24.75
15
2600116 Engine for CCE0900 Concrete Saw Core Cut by Diamond Products
$1,708.80
16
6044321 Motor Tension Plate for CCE0900 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
17
6044324 Garden Hose Assembly for CCE0900 Concrete Saw Core Cut by Diamond Products
$91.47
18
2502000 Micro-V belt, 280PJ 20 rib for CCE0900 Concrete Saw Core Cut by Diamond Products
$106.00
19
6044331 Belt Guard Weldment for CCE0900 Concrete Saw Core Cut by Diamond Products
$226.71
20
6043458 Outer flange w/pin assembly for CCE0900 Concrete Saw Core Cut by Diamond Products
$79.63
21
6043457 Inner flange for CCE0900 Concrete Saw Core Cut by Diamond Products
$110.00
22
6044332 Push Handle for CCE0900 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
23
6043435 Belt adjustment bracket for CCE0900 Concrete Saw Core Cut by Diamond Products
$26.90
24
6044323 Blade Guard for CCE0900 Concrete Saw Core Cut by Diamond Products
$429.66
25
6043439 M16 X 39L - 30 Clevis type pin for CCE0900 Concrete Saw Core Cut by Diamond Products
$20.59
26
6044325 Pointer for CCE0900 Concrete Saw Core Cut by Diamond Products
$65.64
27
6044326 Depth indicator for CCE0900 Concrete Saw Core Cut by Diamond Products
$15.07
28
6044333 1-3/4" - 13/16" Hose clamp for CCE0900 Concrete Saw Core Cut by Diamond Products
$11.34
29
6044327 Push Handle Mounting Bracket A for CCE0900 Concrete Saw Core Cut by Diamond Products
$37.66
30
6044341 Push Handle Mounting Bracket B for CCE0900 Concrete Saw Core Cut by Diamond Products
$81.78
31
6044330 Handle Nut Weldment for CCE0900 Concrete Saw Core Cut by Diamond Products
$36.59
34
6044342 M12 x 1.75 Nylon Nut for CCE0900 Concrete Saw Core Cut by Diamond Products
$4.99
35
6044335 M8 x 1.25 Nylon Nut for CCE0900 Concrete Saw Core Cut by Diamond Products
$2.99
36
6044336 M10 x 1.5 Nylon Nut for CCE0900 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
37
6044343 Emergency Stop Switch for CCE0900 Concrete Saw Core Cut by Diamond Products
$55.96
38
6044358 6 X 6 X 58L Square key for CCE0900 Concrete Saw Core Cut by Diamond Products
$7.62
39
6044337 M8 x 1.25 x 25L Hex bolt for CCE0900 Concrete Saw Core Cut by Diamond Products
$3.99
43
6044334 M8 Wide Washer for CCE0900 Concrete Saw Core Cut by Diamond Products
$2.99
44
6044344 Female 1/2" PT X male 1/2" PT straight ball valve for CCE0900 Concrete Saw Core Cut by Diamond Products
$46.27
45
6043433 M20 Washer for CCE0900 Concrete Saw Core Cut by Diamond Products
$12.36
46
2900576 M6 x 1.0 x 8L Flat point set screw for CCE0900 Concrete Saw Core Cut by Diamond Products
$2.99
47
4600263 (1/4-28 UNF) Grease fitting for CCE0900 Concrete Saw Core Cut by Diamond Products
$6.99
48
2900004 Cotter pin for CCE0900 Concrete Saw Core Cut by Diamond Products
$2.99
49
2500256 Size 27 open-end wrench for CCE0900 Concrete Saw Core Cut by Diamond Products
$47.35
50
6044340 5╱8 Narrow washer inch for CCE0900 Concrete Saw Core Cut by Diamond Products
$6.99
51
2903210 5╱8 - 11 x 1 UNC Hex bolt - Left for CCE0900 Concrete Saw Core Cut by Diamond Products
$52.22
52
6043448 5 x 5 x 20L Square key for CCE0900 Concrete Saw Core Cut by Diamond Products
$6.73
53
6043447 8 x 7 x 56L Square key for CCE0900 Concrete Saw Core Cut by Diamond Products
$10.76
54
6043417 1" (25.4mm) Bore micro-V pulley (D65mm) for CCE0900 Concrete Saw Core Cut by Diamond Products
$288.09
55
6043456 1-1/4" (31.75mm) Bore micro-V pulley (D90mm) for CCE0900 Concrete Saw Core Cut by Diamond Products
$343.53
56
6044317 Female 1/2" PT X female 1/2" PT elbow fitting for CCE0900 Concrete Saw Core Cut by Diamond Products
$11.84
58
3200022 Female 3/4" Garden swivel X female 1/2 PT straight fitting for CCE0900 Concrete Saw Core Cut by Diamond Products
$11.40
59
6044359 Male 1/2" PT X male 1/2" PT straight thread for CCE0900 Concrete Saw Core Cut by Diamond Products
$24.75
60
6043443 4" (D125) d17 X 55W Wheel for CCE0900 Concrete Saw Core Cut by Diamond Products
$179.60
63
6044360 1╱2 - 13 UNC Nylon Nut for CCE0900 Concrete Saw Core Cut by Diamond Products
$6.99
64
6044361 3╱8 - 16 UNC x 1-1╱2L Square neck bolt for CCE0900 Concrete Saw Core Cut by Diamond Products
$4.99
65
6044362 1╱2 - 13 UNC x 1-3╱4L Square neck bolt for CCE0900 Concrete Saw Core Cut by Diamond Products
$6.99
66
6043479 UCFL204-12 3/4" Flange caster bearing for CCE0900 Concrete Saw Core Cut by Diamond Products
$55.79
67
2504038 UC207-20 Flange caster bearing for CCE0900 Concrete Saw Core Cut by Diamond Products
$90.16
68
6044345 M20 Nylon washer for CCE0900 Concrete Saw Core Cut by Diamond Products
$3.99
69
6044346 CCE0911 Water Tank for CCE0900 Concrete Saw Core Cut by Diamond Products
$117.00
70
6044347 GX390 Oil hose assembly for CCE0900 Concrete Saw Core Cut by Diamond Products
$87.16
71
6044348 20" Hooked bungee cord for CCE0900 Concrete Saw Core Cut by Diamond Products
$24.75
72
6044349 CCE0911H-20 Emergency stop wire bundle for CCE0900 Concrete Saw Core Cut by Diamond Products
$3,249.00
73
6044350 point rope for CCE0900 Concrete Saw Core Cut by Diamond Products
$13.99
75
6044351 M10 x 1.5 x 50L - 26shx Square neck bolt for CCE0900 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
76
6044352 Rectangular washer for CCE0900 Concrete Saw Core Cut by Diamond Products
$20.45
6
6043480 Bellow mount washer fits CCE0900 by Core Cut Diamond Products
$24.75
77
6044400 Handle Grip fits CCE0900 by Core Cut Diamond Products
$11.88
14
6044399 Adjustment shaft fits CCE0900 by Core Cut Diamond Products
$154.44
32
2901357 M12 Regular Washer fits CCE0900 by Core Cut Diamond Products
$2.99
33
2901356 Flat Washer M10 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900329 Cap Screw, Hex Hd., M8-1.25 x 20mm for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
41
2900763 Lock Washer M8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
42
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
57
3200155 Fitting, 1/2" M. Pipe to 3/4" M. Garden for CC1113-XL Concrete Saw Core Cut by Diamond Products
$11.27
61
2501439 8" (D203.2) d19.05 X 53W Wheel fits CCE0900 by Core Cut Diamond Products
$65.30
62
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
74
2900304 Lock Nut, M10-1.5 Nylon Insert fits CC1823BVXLP by Core Cut Diamond Products
$2.99
41
Call for Price call for price call for price
33
Call for Price call for price call for price
42
Call for Price call for price call for price
61
Call for Price call for price call for price
62
Call for Price call for price call for price
View full details

Frequently asked questions

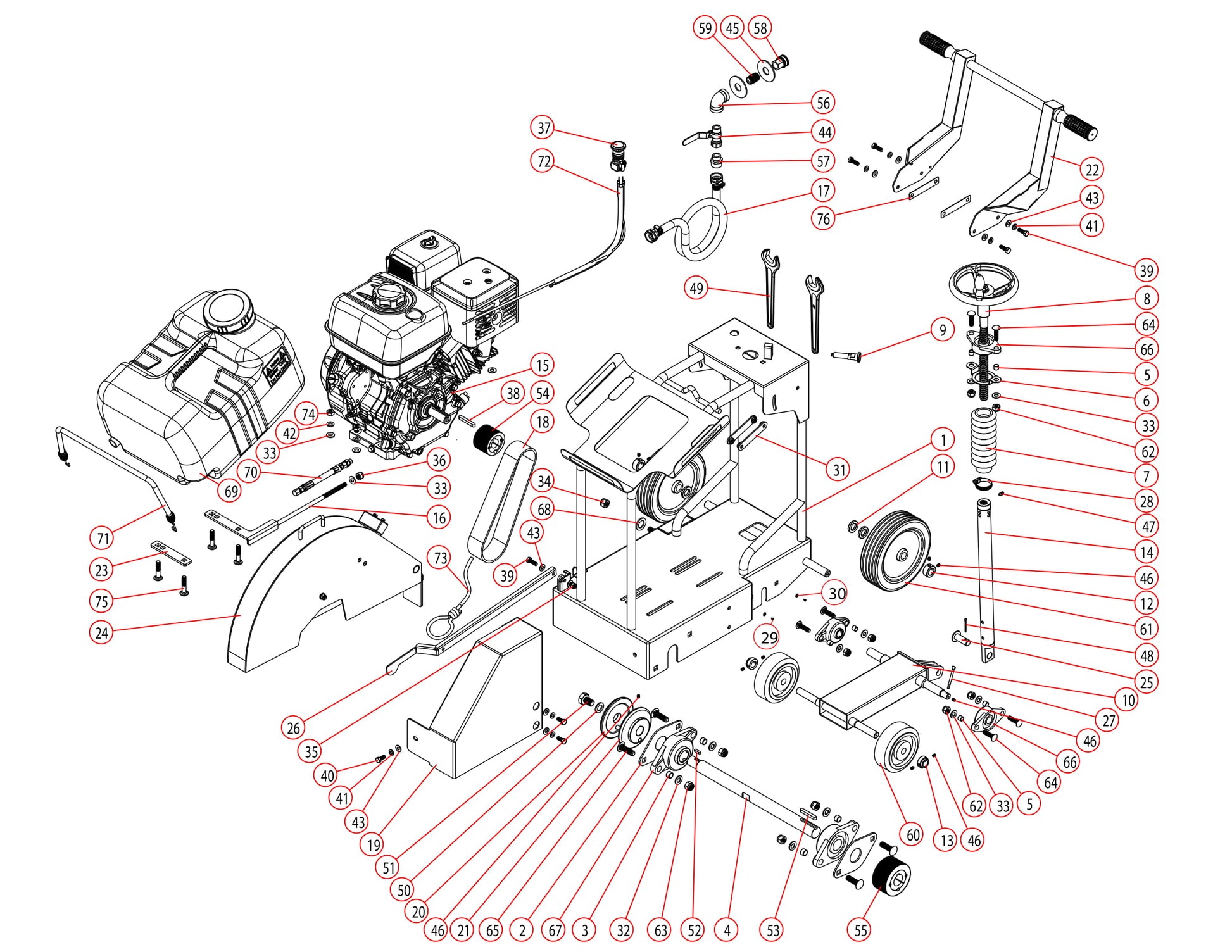

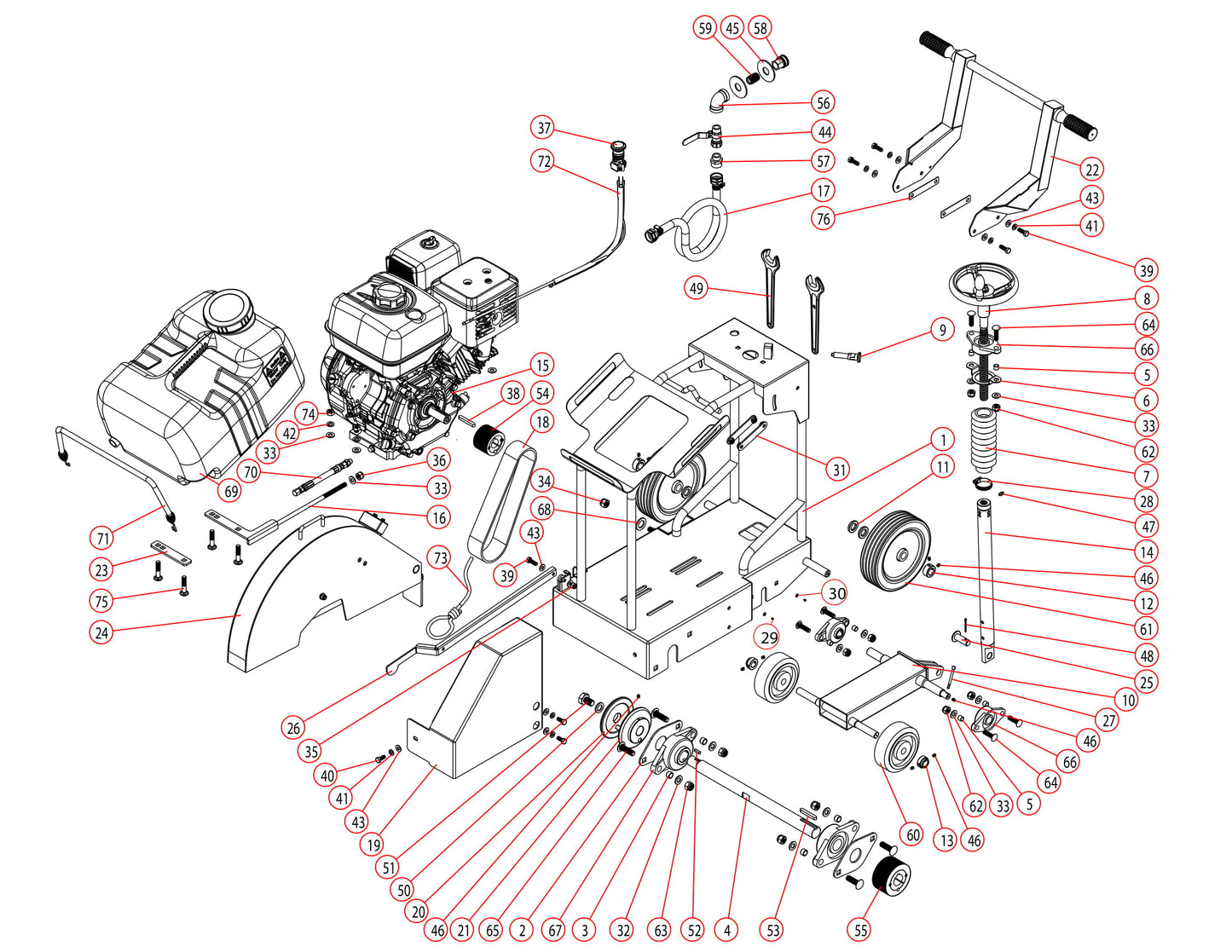

How do I use this diagram?
