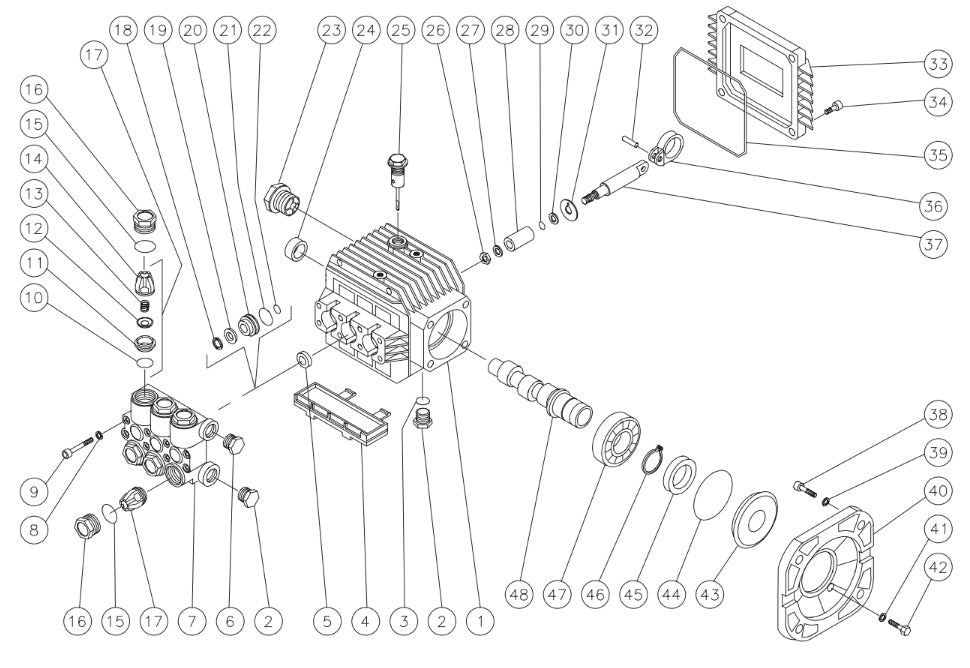

CD-1002-0MUC/0MUH, CD-1502-0MUC/0MUH/1MUC/1MUH Pump Assembly Parts By Mi-T-M

CD-1002-0MUC/0MUH, CD-1502-0MUC/0MUH/1MUC/1MUH Pump Assembly Parts By Mi-T-M

  • CD-1002-0MUC/0MUH, CD-1502-0MUC/0MUH/1MUC/1MUH Pump Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
46-0221 Crankcase for MiTM Pressure Washers 460221 46-0221 Crankcase for MiTM Pressure Washers 460221
$757.83
4
46-0229 Drip Pan for MiTM Pressure Washers 460229 46-0229 Drip Pan for MiTM Pressure Washers 460229
$87.78
7
46-0163 Manifold Pump Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 460163 46-0163 Manifold Pump Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 460163
$692.93
8
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
41
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
9
27-8406 Bolt for MiTM Pressure Washers 278406 27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
20
46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158 46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158
$28.58
21
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141 25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
22
25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128 25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128
$3.99
23
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114 46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
28
46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148 46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148
$107.42
33
46-0151 Crankcase Cover for MiTM Pressure Washers 460151 46-0151 Crankcase Cover for MiTM Pressure Washers 460151
Call for Price call for price call for price
34
27-8409 Bolt for MiTM Pressure Washers 278409 27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
42
27-8409 Bolt for MiTM Pressure Washers 278409 27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
39
29-0155 Lockwasher for MiTM Pressure Washers 290155 29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
40
38-0032 Flange Pump Electric for AC1-PE15-20M1 Air Compressor by Mi-T-M 380032 38-0032 Flange Pump Electric for AC1-PE15-20M1 Air Compressor by Mi-T-M 380032
$87.82
45
26-0126 Seal Oil for AC1-PE15-20M1 Air Compressor by Mi-T-M 260126 26-0126 Seal Oil for AC1-PE15-20M1 Air Compressor by Mi-T-M 260126
$30.95
46
46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245 46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245
$4.85
48
46-0277 Crankshaft for MiTM Pressure Washers 460277 46-0277 Crankshaft for MiTM Pressure Washers 460277
$792.50
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009 70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0024 Kit Packing for AC1-PE15-20M1 Air Compressor by Mi-T-M 700024 70-0024 Kit Packing for AC1-PE15-20M1 Air Compressor by Mi-T-M 700024
$54.48
-
70-0023 Isolator 2" Od X 1.95 for AM2-PR09-30M Air Compressor by Mi-T-M 700023 70-0023 Isolator 2" Od X 1.95 for AM2-PR09-30M Air Compressor by Mi-T-M 700023
$64.05
2
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018 39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
3
25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052 25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052
$5.99
5
26-0111 Oil Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 260111 26-0111 Oil Seal for AC1-HE02-05M1 Air Compressor by Mi-T-M 260111
$24.10
6
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017 39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
15
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012 25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
16
39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035 39-0035 Valve Plug for AC1-HE02-05M1 Air Compressor by Mi-T-M 390035
$34.46
24
48-0019 Bearing Needle for AC1-HE02-05M1 Air Compressor by Mi-T-M 480019 48-0019 Bearing Needle for AC1-HE02-05M1 Air Compressor by Mi-T-M 480019
$76.05
25
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143 46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
26
46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168 46-0168 Nut for AC1-HE02-05M1 Air Compressor by Mi-T-M 460168
$13.97
27
46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166 46-0166 Washer Copper Gasket for AC1-HE02-05M1 Air Compressor by Mi-T-M 460166
$5.99
29
25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045 25-0045 O-Ring 7/32 X 11/32 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250045
$1.99
30
25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143 25-0143 Ring Anti-Extrusion for AC1-HE02-05M1 Air Compressor by Mi-T-M 250143
$5.99
31
46-0167 Washer Slinger Copper for AC1-HE02-05M1 Air Compressor by Mi-T-M 460167 46-0167 Washer Slinger Copper for AC1-HE02-05M1 Air Compressor by Mi-T-M 460167
$7.02
32
43-0044 Pin Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 430044 43-0044 Pin Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 430044
$19.13
35
25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332 25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332
$12.31
36
46-0152 Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 460152 46-0152 Connecting Rod for AC1-HE02-05M1 Air Compressor by Mi-T-M 460152
$63.60
37
46-0149 Piston Guide for AC1-HE02-05M1 Air Compressor by Mi-T-M 460149 46-0149 Piston Guide for AC1-HE02-05M1 Air Compressor by Mi-T-M 460149
$101.28
38
27-0117 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270117 27-0117 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270117
$1.99
43
46-0087 Spacer Bearing for AC1-HE02-05M1 Air Compressor by Mi-T-M 460087 46-0087 Spacer Bearing for AC1-HE02-05M1 Air Compressor by Mi-T-M 460087
$27.06
44
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060 25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060
$8.44
47
48-0024 Ball Bearing for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 480024 48-0024 Ball Bearing for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 480024
$67.11
