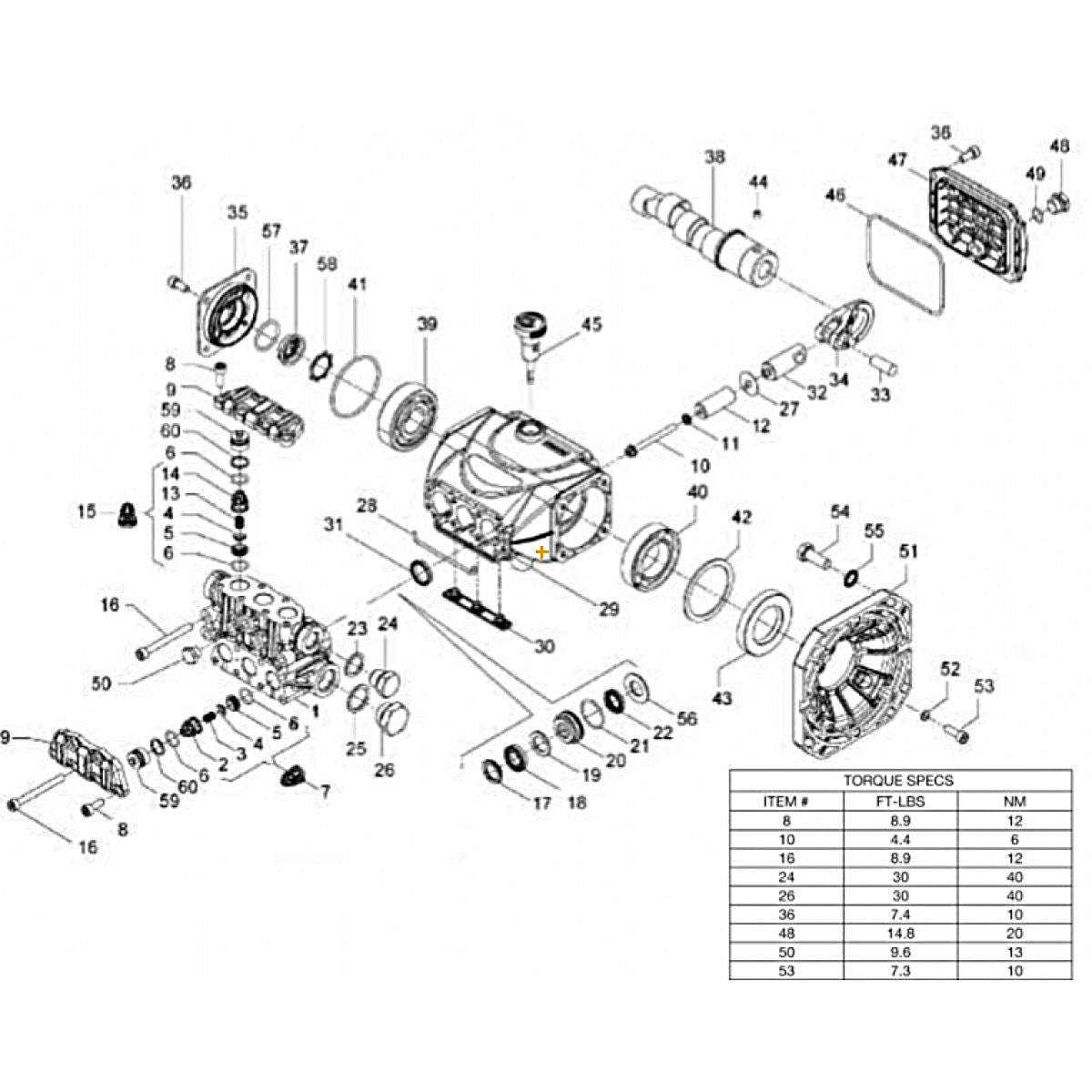

CD-1002-4MUH, CD-1502-4MUH (sn:0-99999999) Pump Assembly Parts by MI-T-M

CD-1002-4MUH, CD-1502-4MUH (sn:0-99999999) Pump Assembly Parts by MI-T-M

  • CD-1002-4MUH, CD-1502-4MUH (sn:0-99999999) Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
7
46-1870 Valve Assembly (See Kit 70-0701) for MiTM Pressure Washers 461870
$93.48
8
27-1406 Screw - Hhc (M6X16) for MiTM Pressure Washers by MiTM 271406
$7.71
10
27-0907 Plunger Bolt - M5 X 55 for MiTM Pressure Washers by MiTM 270907
$43.85
11
28-0071 Washer - M5 X M11.5 X 0.4Mm for MiTM Pressure Washers by MiTM 280071
$30.00
12
46-1790 Plunger - 15 X 38.5Mm for MiTM Pressure Washers 461790
$224.55
15
46-1871 Complete Outlet Valve (See Kit 70-0701) for MiTM Pressure Washers 461871
$93.68
16
27-0908 Screw for MiTM Pressure Washers 270908
$28.05
17
46-1872 Head Ring (See Kit 70-0754) for MiTM Pressure Washers 461872
$36.18
18
46-1873 Packing - 24 X 5.4/3.4 Hp (See Kit 70-0754) for MiTM Pressure Washers 461873
$94.82
19
46-1874 Anti-Ext. Ring - 24 X 2 (See Kit 70-0754) for MiTM Pressure Washers 461874
$32.61
21
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
22
46-1876 Packing - 22 X 5 Lp (See Kit 70-0754) for MiTM Pressure Washers 461876
$113.96
23
28-0079 Washer for MiTM Pressure Washers 280079
$16.98
24
39-0397 Plug - 3/8" X 13 for MiTM Pressure Washers 390397
$56.07
25
46-1402 Washer for MiTM Pressure Washers by MiTM 461402
$9.11
26
39-0394 Plug - 1/2" Bspx10 for MiTM Pressure Washers 390394
$73.86
27
26-0419 Gasket - 7.5 X 23 X 0.5Mm for MiTM Pressure Washers 260419
$40.77
28
26-0420 Gasket - 3 X 85Mm for MiTM Pressure Washers 260420
$15.30
29
46-1792 Crankcase for MiTM Pressure Washers 461792
$253.61
30
46-1734 Drip Cover for MiTM Pressure Washers by MiTM 461734
$15.30
32
46-1798 Piston Guide for MiTM Pressure Washers 461798
$416.16
33
43-0163 Piston Pin for MiTM Pressure Washers 430163
$83.10
34
43-0164 Connecting Rod for MiTM Pressure Washers 430164
$253.61
35
46-1786 Side Cover Housing for MiTM Pressure Washers 461786
$98.96
36
27-8401 Bolt for MiTM Pressure Washers 278401
$15.75
37
46-1725 Oil Level Indicator for MiTM Pressure Washers by MiTM 461725
$32.31
38
46-1225 Crankshaft for MiTM Pressure Washers 461225
$772.56
39
48-0107 Bearing 15Mm - 18Mm for MiTM Pressure Washers 480107
$194.67
40
48-0013 Ball Bearing for MiTM Pressure Washers 480013
$306.00
41
25-0158 O-Ring 56.82 X 2.62Mm for MiTM Pressure Washers by MiTM 250158
$12.75
42
46-1224 Spacer for MiTM Pressure Washers 461224
$50.97
43
46-1791 Stop Ring for MiTM Pressure Washers 461791
$128.87
44
27-1412 Screw - M6 X 6Mm for MiTM Pressure Washers 271412
$24.48
45
46-1877 Oil Dipstick - 3/8" X 45Mm for MiTM Pressure Washers 461877
$89.10
46
25-0332 O-Ring 88.57 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250332
$12.31
48
39-0420 Plug - 3/8" X 9Mm for MiTM Pressure Washers 390420
$78.83
49
25-0310 O-Ring .426 X .070 for AP1-PI65-08M Air Compressor by Mi-T-M 250310
$7.28
50
39-0395 Plug - 1/8" X 8 for MiTM Pressure Washers 390395
$60.00
54
27-0117 Bolt for ABS Air Compressor by Mi-T-M 270117
$1.99
55
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
56
46-1878 Support Ring (See Kit 70-0754) for MiTM Pressure Washers 461878
$89.49
58
46-1726 Stop Ring for MiTM Pressure Washers by MiTM 461726
$32.31
59
46-1879 Inlet/Outlet Valve Cap for MiTM Pressure Washers 461879
$102.69
60
46-1880 Stop Ring for MiTM Pressure Washers 461880
$43.83
20
Call for Price call for price call for price
