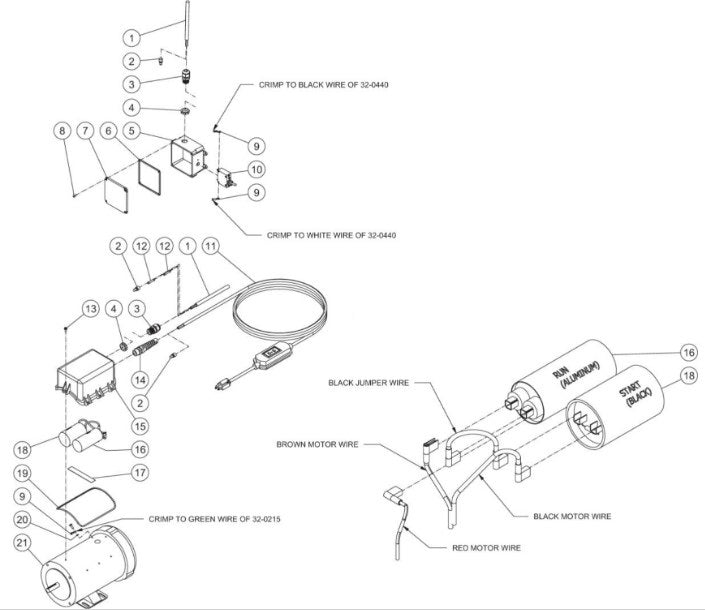

CD-1502-3MUH1 (sn:0-11370102) Motor Assembly Parts

CD-1502-3MUH1 (sn:0-11370102) Motor Assembly Parts

  • CD-1502-3MUH1 (sn:0-11370102) Motor Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
32-0440 Cord 12/3 for AC1-HE02-05M1 Air Compressor by Mi-T-M 320440
$9.61
2
32-0359 Crimped Wire Splice 18-12 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320359
$2.85
3
32-0437 Strain Relief for AC1-HE02-05M by Mi-T-M 320437
$6.40
4
32-0108 Locknut 1/2" Electrical for AC1-HE02-05M by Mi-T-M 320108
$3.99
5
32-1221 Box 4X4X2 Carlon Elec W/Holes for MiTM Pressure Washers 321221
$230.81
9
32-0099 Terminal 14 Ga #10 Ring Blue for AC1-HR45-05M Air Compressor by Mi-T-M 320099
$1.99
10
32-0348 Switch 20 Amp Sealed for AM2-PE75-30M Air Compressor by Mi-T-M 320348
$135.90
11
32-0215 Cord 12/3 W/Gfi Plug Nema5-20P for AC1-HE15-04M Air Compressor by Mi-T-M 320215
$134.04
12
32-0122 Connector Butt #14-16 Awg for MiTM Pressure Washers 320122
$7.49
13
27-8389 Hex Screw for MiTM Pressure Washers 278389
$5.93
14
32-0407 Cord Strain Relief W/ Pigtail for AC1-HE02-05M1 Air Compressor by Mi-T-M 320407
$9.72
15
52-0061A01 Capacitor Box for MiTM Pressure Washers 520061A01
$165.36
16
32-0413 Capacitor-Run 2-0083 & 2-0084 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320413
$156.24
17
52-0042 Motor Box Strap for MiTM Pressure Washers 520042
$5.93
18
32-0412 Capacitor-Start-2-0084 for AM2-PE75-30M Air Compressor by Mi-T-M 320412
$210.26
19
25-0338 O-Ring for AC1-PE15-20M1 Air Compressor by Mi-T-M 250338
$5.99
20
28-1009 Star Washer for MiTM Pressure Washers by MiTM 281009
$4.49
21
2-0084 Motor 2.0 Hp Ul-1776 Tefc 120V for MiTM Pressure Washers 20084
$1,092.77
