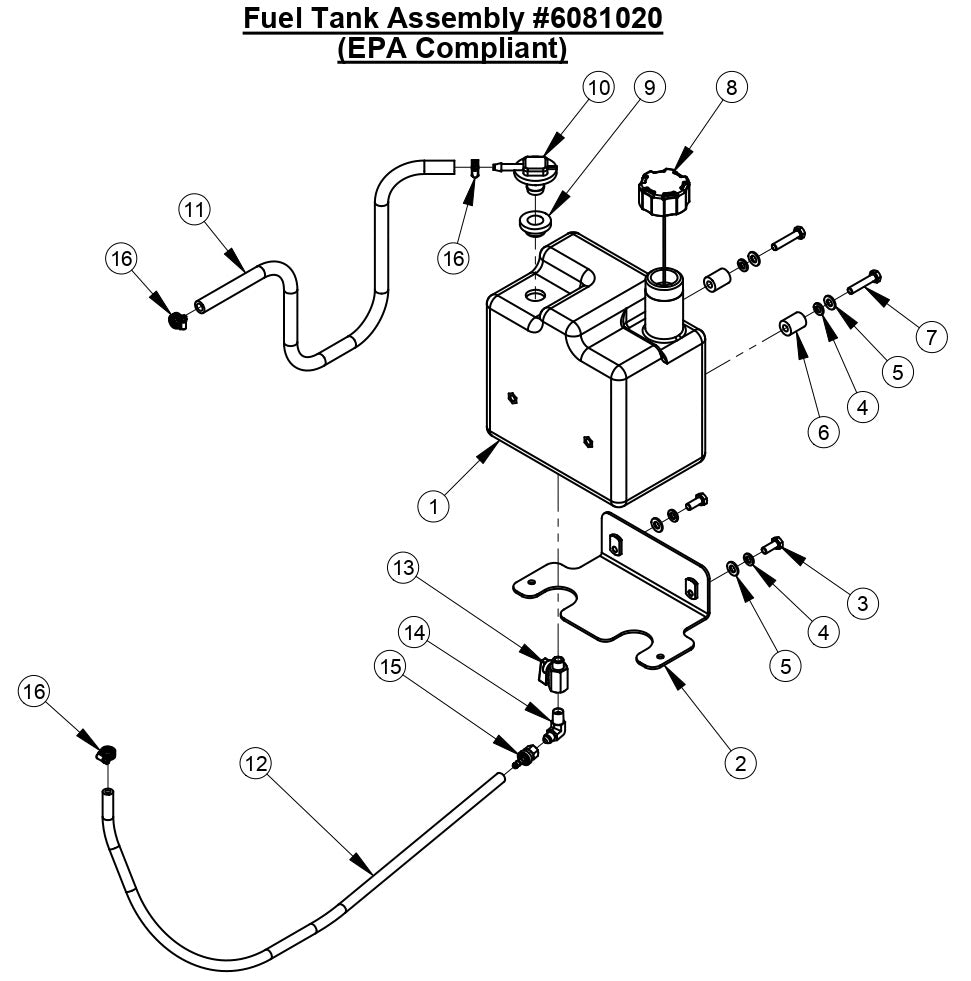

CG-1 Fuel Tank Assembly (EPA Compliant)

CG-1 Fuel Tank Assembly (EPA Compliant)

  • CG-1 Fuel Tank Assembly (EPA Compliant)
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6010846 Fuel Tank, 1.5 Gallon for CG-1 MINI-GROOVER Core Cut by Diamond Products
$223.20
2
6048327 Bracket for CG-1 MINI-GROOVER Core Cut by Diamond Products
$54.77
4
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900797 Standoff, 3/4 x 1" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$1.99
7
2900792 Cap Screw, Hex Hd., M8 x 40mm for CG-1 MINI-GROOVER Core Cut by Diamond Products
$1.99
8
2506718 Fuel Tank Cap, 1-3/4" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$36.78
9
2506716 Grommet for CG-1 MINI-GROOVER Core Cut by Diamond Products
$3.94
10
2505503 Roll Over Vent, 3/8" Hose Barb for CG-1 MINI-GROOVER Core Cut by Diamond Products
Call for Price call for price call for price
11
6080024 Fuel Vapor Exhaust Line for CG-1 MINI-GROOVER Core Cut by Diamond Products
Call for Price call for price call for price
12
6080023 Fuel Supply Line, 1/4" for CG-1 MINI-GROOVER Core Cut by Diamond Products
Call for Price call for price call for price
13
3200108 Ball Valve, 1/4" NPT for CC190PRO Concrete Saw Core Cut by Diamond Products
$38.47
14
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.37
15
3200091 Fitting, 1/4" F. JIC to 1/4" Push Lock for CC3500J Concrete Saw Core Cut by Diamond Products
$6.26
16
3200390 Hose Clamp #6 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$2.24
3
Call for Price call for price call for price
