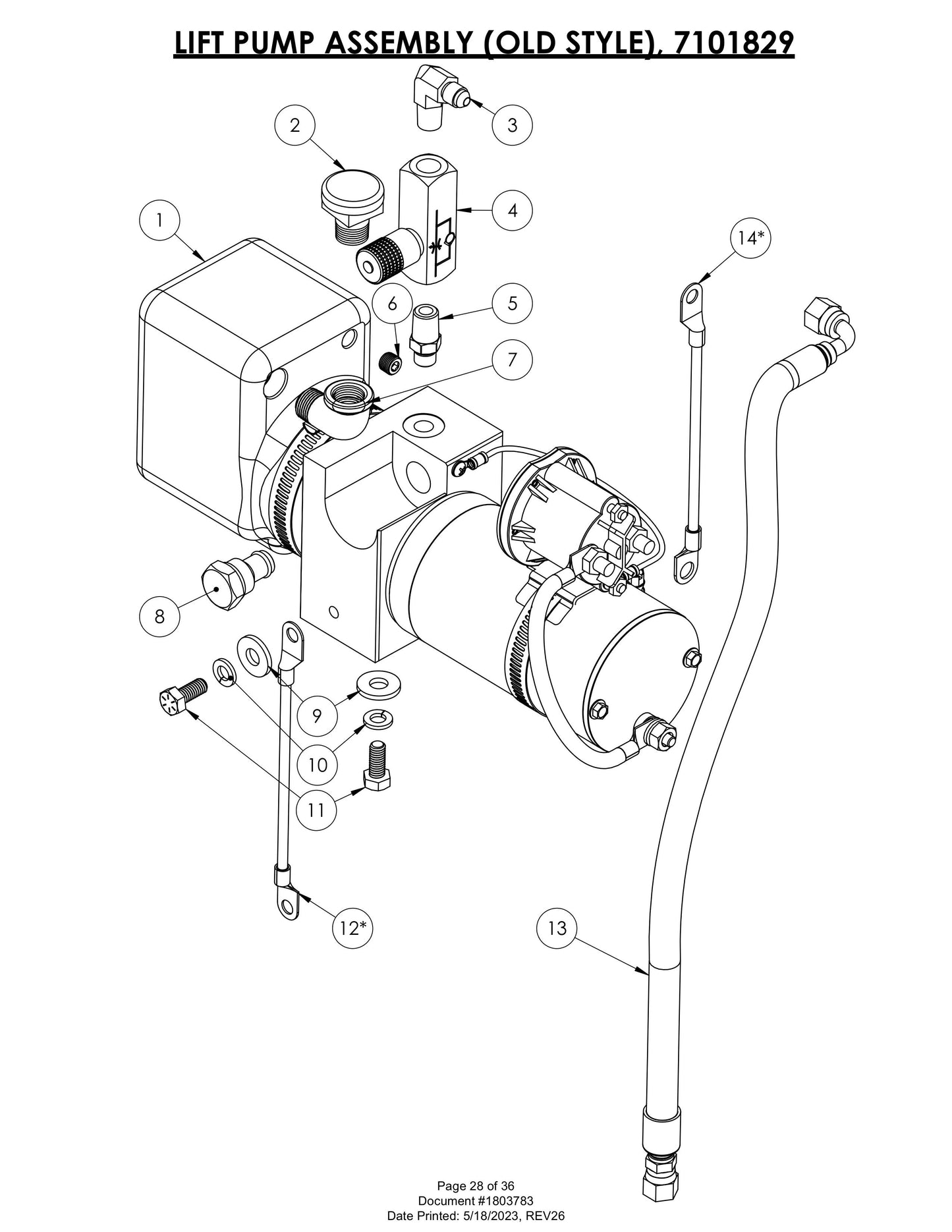

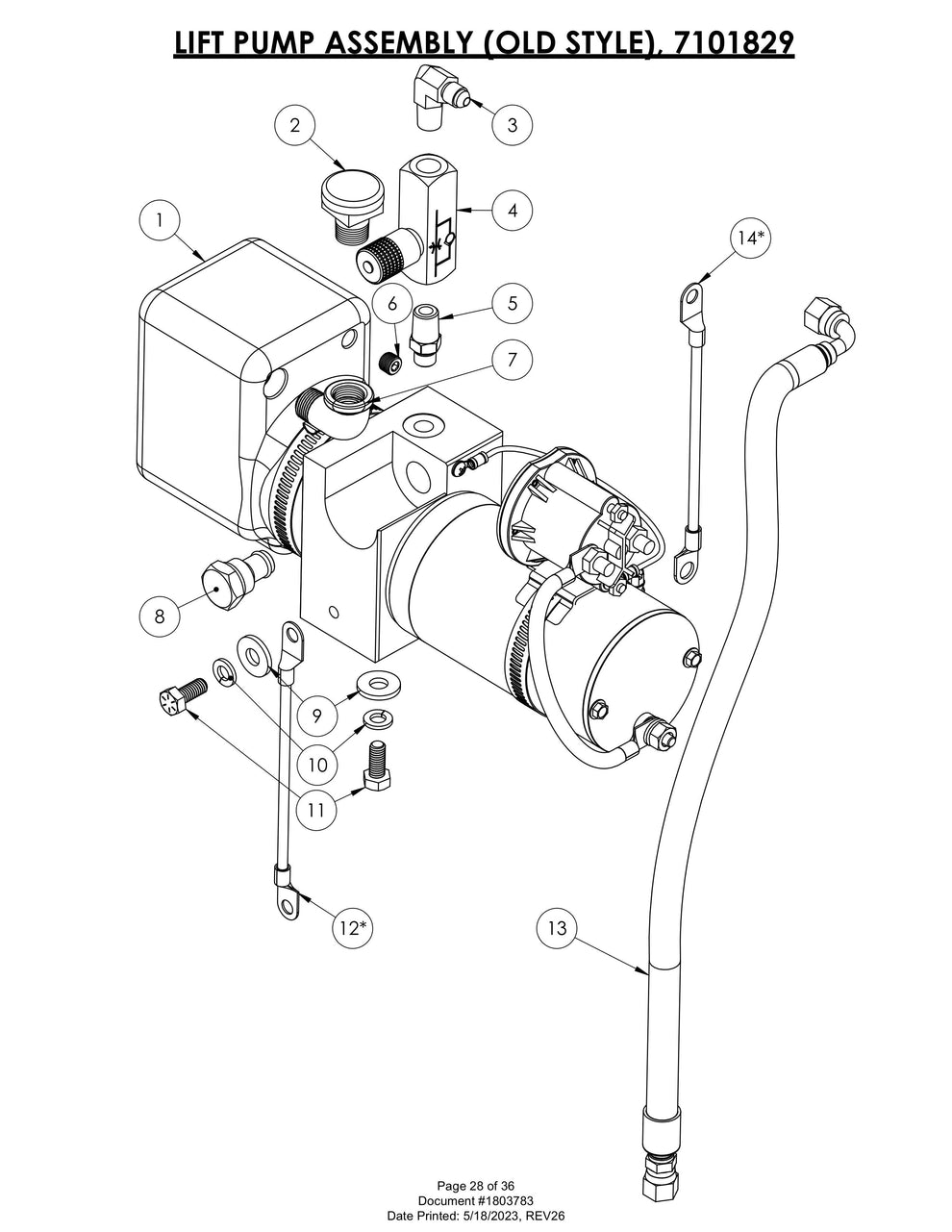

CG-1 Lift Pump Assembly (Old Style) Parts

CG-1 Lift Pump Assembly (Old Style) Parts

  • CG-1 Lift Pump Assembly (Old Style) Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2600692 Electro/Hydraulic Pump Unit fits CC4144DXL by Core Cut Diamond Products
$1,326.60
2
Diamond Products BREATHER, 3/8" MNPT 2706599
$67.79
3
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CG-1 MINI-GROOVER Core Cut by Diamond Products
$5.60
4
3200056 Flow Control Valve, 1/4" NPT for CG-1 MINI-GROOVER Core Cut by Diamond Products
$119.00
5
3200758 Adapter, 1/4" M. O-Ring to 1/4" MPT for CG-1 MINI-GROOVER Core Cut by Diamond Products
$6.66
6
3201094 1/8" Pipe Plug for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$3.99
7
Diamond Products 3/8" STREET ELBOW BRASS 3201356
$21.52
8
Diamond Products CAVITY PLUG (LIFT UNIT) 3205636
$49.50
9
Diamond Products 5/16 FLAT WASHER THRU-HARDENED, SAE 2901818
$3.99
11
Diamond Products 5/16-18X3/4 HEX CAP SCREW GRADE 8 2901665
$4.99
12*
6048358 Battery Cable, Neg, 18" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$58.10
13
3205737 Hydraulic Hose Assembly, 16" Long for CG-1 MINI-GROOVER Core Cut by Diamond Products
$81.05
14*
6080100 Battery Cable, Pos., 18" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$24.71
10
Call for Price call for price call for price
View full details
