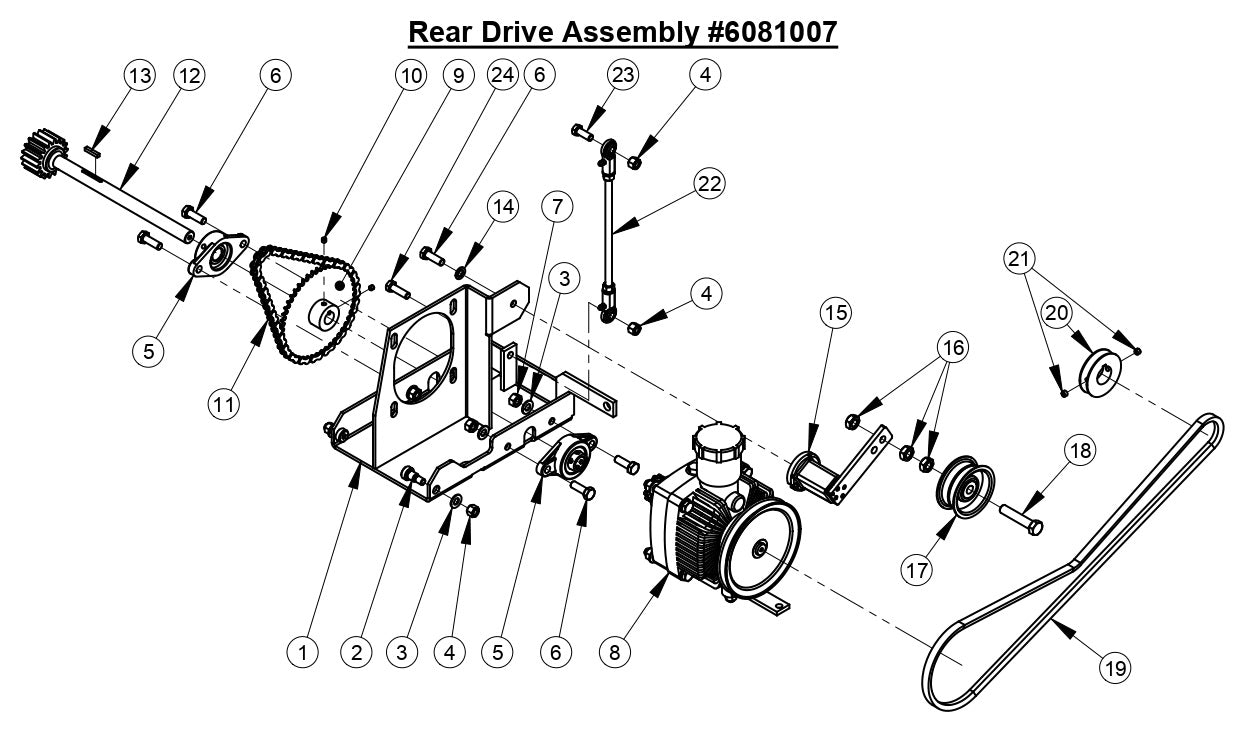

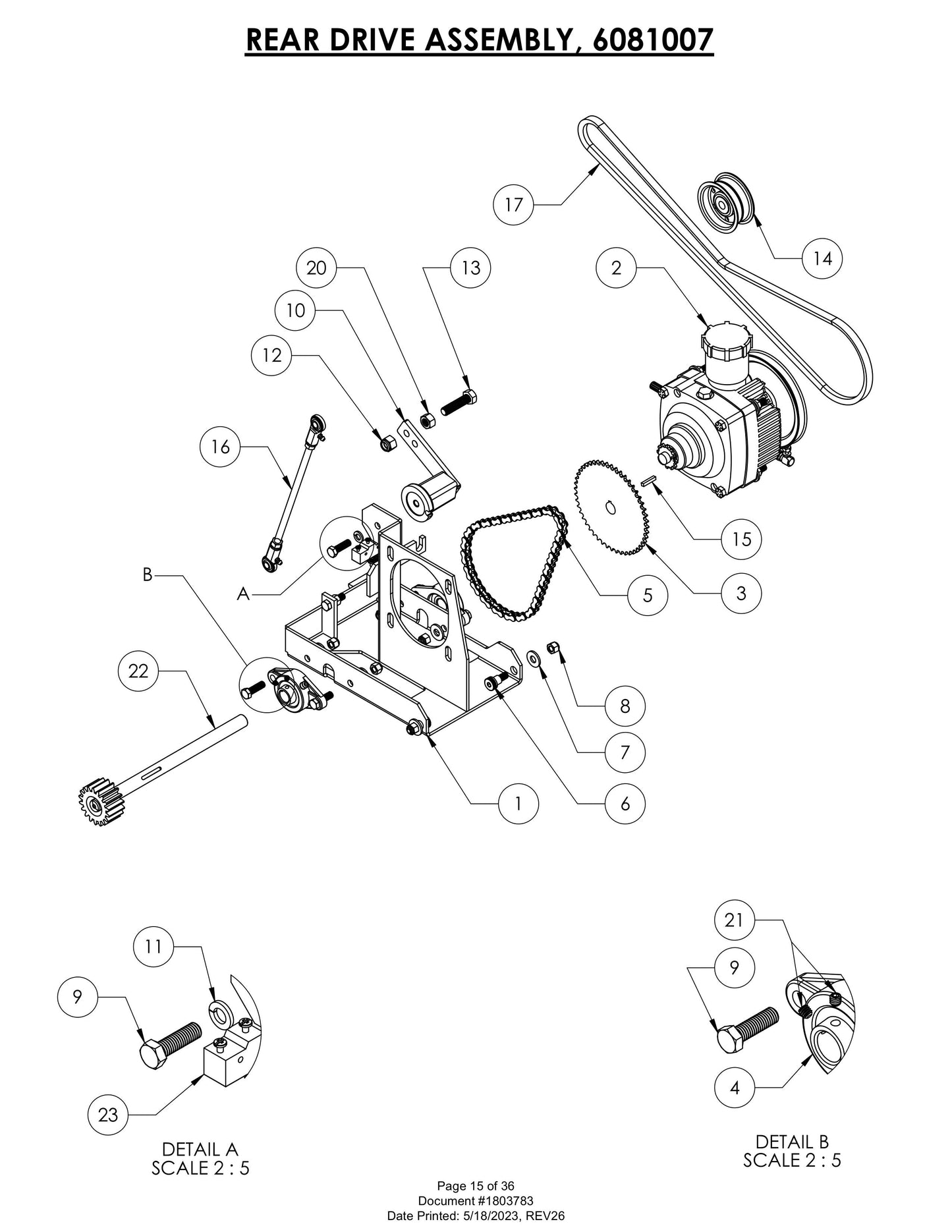

CG-1 Rear Drive Assembly Parts

CG-1 Rear Drive Assembly Parts

  • CG-1 Rear Drive Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6080007 Transmission Platform, CG-1 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$456.00
2
6081006 Eaton Transmission Assembly, CG-1 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$1,805.76
3
2500018 Sprocket, 48 Teeth w/ Setscrews for CG-1 MINI-GROOVER Core Cut by Diamond Products
$46.37
4
2500011 Flange Mt. Bearing 3/4" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$41.76
5
6048232 Chain, #35 x 63 Pitch for CG-1 MINI-GROOVER Core Cut by Diamond Products
$24.94
6
2900588 Shoulder Screw, 1/2" x 1/2" (3/8-16) for CG-1 MINI-GROOVER Core Cut by Diamond Products
$11.84
7
Diamond Products 3/8 FLAT WASHER THRU-HARDENED, SAE 2901829
$2.99
8
Diamond Products 3/8-16 LOCK NUT, GRADE 8 NYLON INSERT 2901747
$3.99
9
Diamond Products 3/8-16X1.25 HEX CAP SCREW GRADE 8 2901660
$4.99
10
2502666 Idler Tensioner for CG-1 MINI-GROOVER Core Cut by Diamond Products
$304.92
11
Diamond Products 3/8 SPLIT LOCK WASHER HIGH ALLOY 2907045
$2.99
12
Diamond Products 1/2-13 LOCK NUT, GRADE 8 NYLON INSERT 2901749
$4.99
13
Diamond Products 1/2-13X2 HEX CAP SCREW GRADE 8 2901680
$6.99
14
2502566 Idler Pulley, 2-3/4" Flat for CG-1 MINI-GROOVER Core Cut by Diamond Products
$89.32
15
6010170 Key, 3/16" Sq. x 1" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$2.99
16
6010703 Linkage Assembly 11-1/2" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$75.46
17
2506423 V-Belt, AX53 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$57.03
18
2506424 Control Cable, 56" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$365.31
19
2502132 Ball Joint, QD, #10-32 x 1/4"-28 for CG-1 MINI-GROOVER Core Cut by Diamond Products
$119.00
20
Diamond Products 1/2-13 HEX NUT GRADE 8 2901695
$3.99
21
2900056 Socket Head Set Screw 1/4-20 x 1/4" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$2.99
22
Diamond Products TRANSMISSION SHAFT CG-1 7800236
$116.64
23
2800926 Door Interlock Switch for CC6571 Concrete Saw Core Cut by Diamond Products
$64.57
View full details
