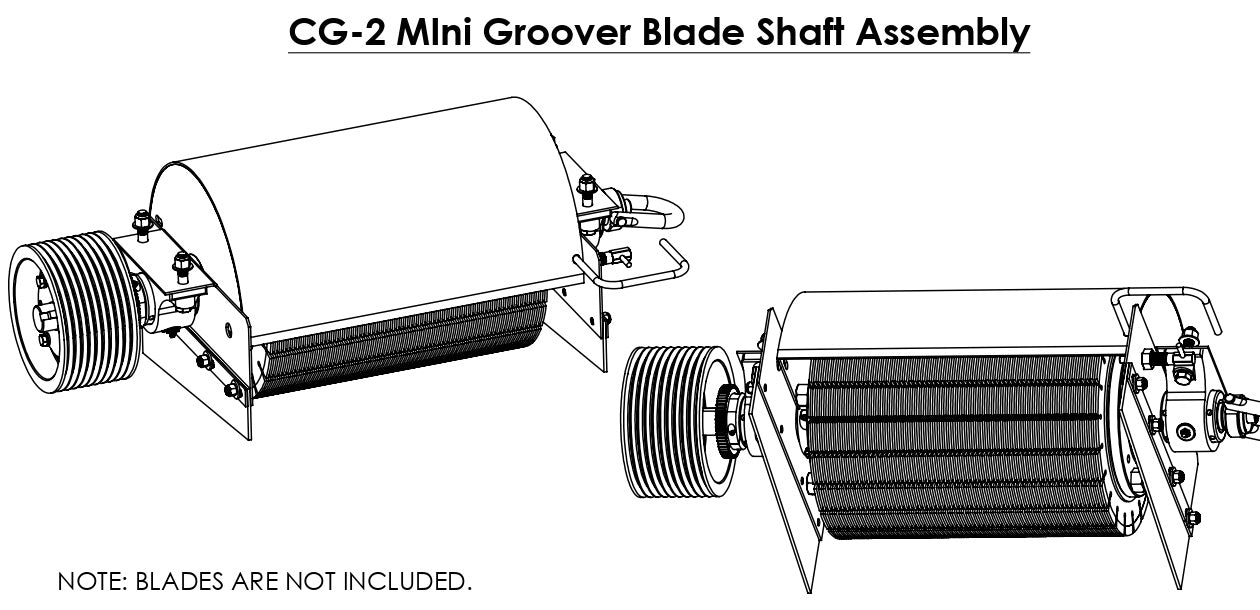

CG-2 (Diesel) Mini Groover Blade Shaft Assembly Parts

CG-2 (Diesel) Mini Groover Blade Shaft Assembly Parts

  • CG-2 (Diesel) Mini Groover Blade Shaft Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2705403 Bearing, 1-7/16" Pillow Block for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$767.25
2
6082007 Blade Shaft, CG-2 for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
3
6030317 Blade Flange for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
4
6078034-1 Key, 3/8" Sq. x 5/8" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
5
6091574 Threaded Rod, 3/4"-10 x 18.625" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
6
2500440 Sheave, 8" x 10 Groove QD Style for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$594.00
7
6075416 Blade Cover Weldment for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$404.91
8
6075414 Blade Cover Side Mount Weldment, Right for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$207.90
9
6075415 Blade Cover Side Mount Weldment, Left for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$220.77
10
6091589 Outer Bearing, Blade Cover, Top for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$269.28
12
2900062 Grease Fitting, 1/8" NPT for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$3.99
13
2503351 Locking Spring Plunger, L-Handle for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$93.55
14
6010230 Shaft Tach Gear for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$194.04
15
2903091 1/2-13 x 3.00" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.99
16
2900058 1/2 FLAT WASHER for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
17
2900026 1/2-13 Nylon-Insert Hex Locknut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
18
6079262 CG-2 Blade Side Splash Shield for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$61.34
19
6079263 CG-2 Water Shield Side Strip for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$52.15
20
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
21
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
22
2506550 Bushing, QD, SF 1-7/16" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$181.17
23
2903134 3/4-10 Hex Nut Hex Nut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
24
7600292 Sleeve, Tach Gear for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$155.43
26
2900080 3/8-16 x 2.00" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$8.97
27
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
28
2900142 5/16-10 x .375" Cup Point Set Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
29
2503468 CG-2 Blade Sheave Key for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$16.14
32
2504720 1/2-13" Hoist Ring for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$441.54
View full details

Frequently asked questions

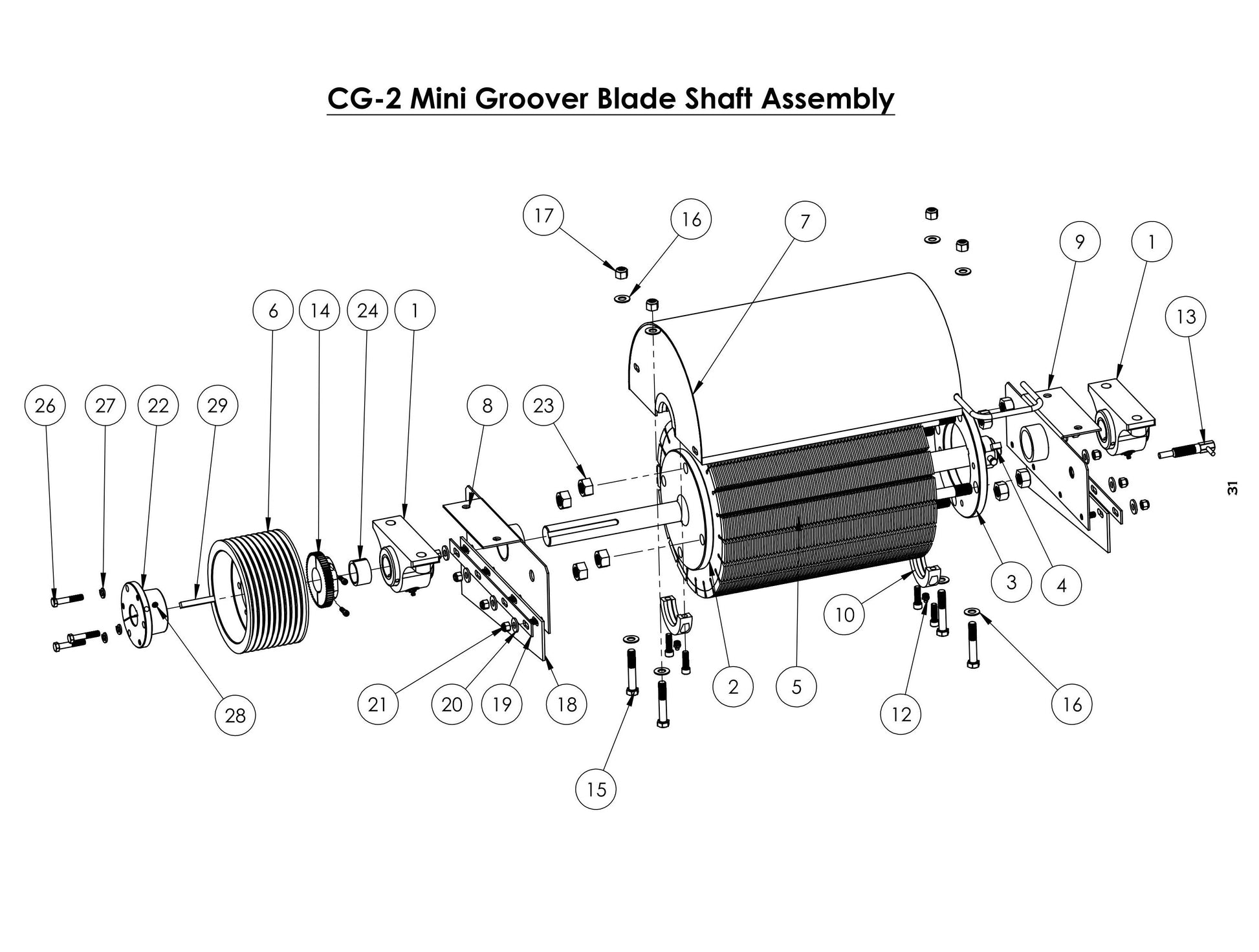

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
