CG-2 (Diesel) Mini Groover Engine Assembly Parts

CG-2 (Diesel) Mini Groover Engine Assembly Parts

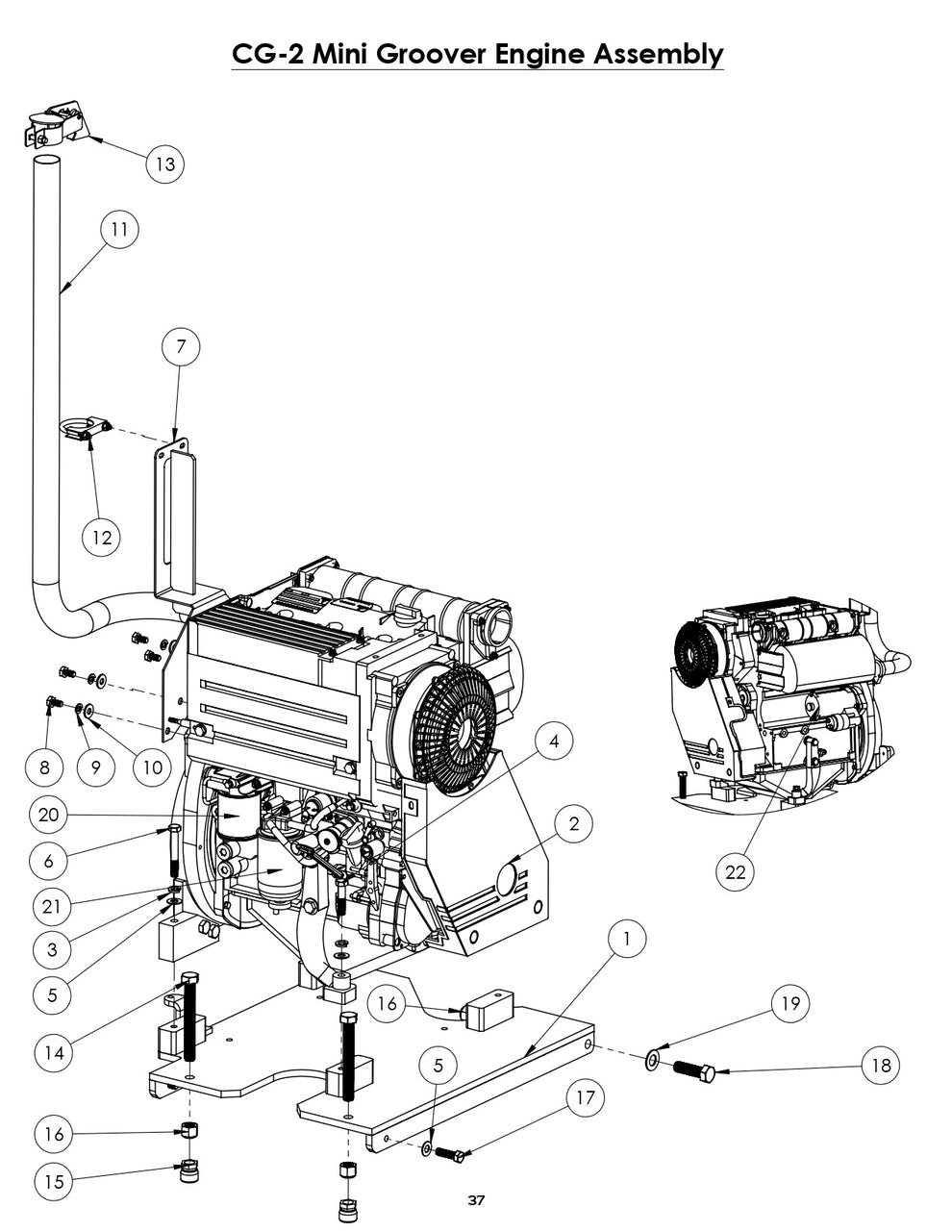

  • CG-2 (Diesel) Mini Groover Engine Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2600580 Deutz Model D2011L03i 49 HP for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$21,765.15
3
2900084 1/2 SPLIT LOCK WASHER for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
4
2900192 1/2-13 x 2.25" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$4.99
5
2900058 1/2 FLAT WASHER for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
6
2903092 1/2-13 x 3.50" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$10.33
7
6075508 Exhaust Stabilizer Mount for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$199.98
8
2903164 M10-1.5 x 20 Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
9
2900321 Lock Washer M10 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2903018 3/8" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
11
2707350 Exhaust Pipe for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$136.62
12
3201167 U-Bolt, Clamping, 2" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$23.67
13
2700747 Rain Cap 2" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$46.27
14
2903520 3/4-10 x 6.00" F/T Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
15
2900476 Swivel Pad Nut, 3/4-10 for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$40.89
16
2900467 3/4-10 Nylon-Insert Hex Locknut for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$4.99
17
2900139 1/2-13 x 1.75" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
18
2900717 3/4-10 x 2.50" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$15.55
19
2900003 3/4" SAE Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
20
2701775 Deutz Oil Filter for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$53.15
21
2701339 Deutz Fuel Filter for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$83.82
22
2702274 Deutz Starter for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$877.14
1
6075509 Engine Mount Weldment for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$1,863.18
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
