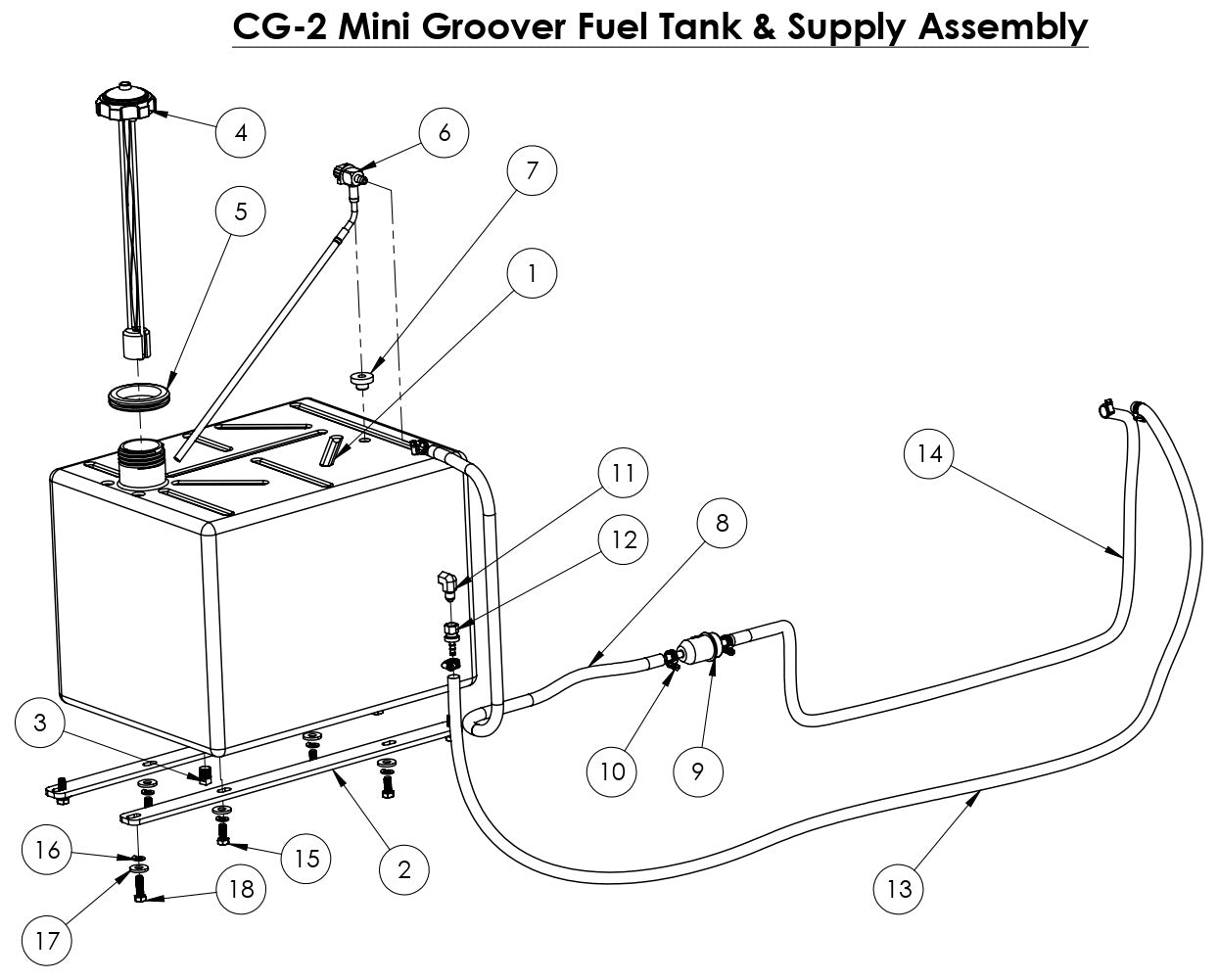

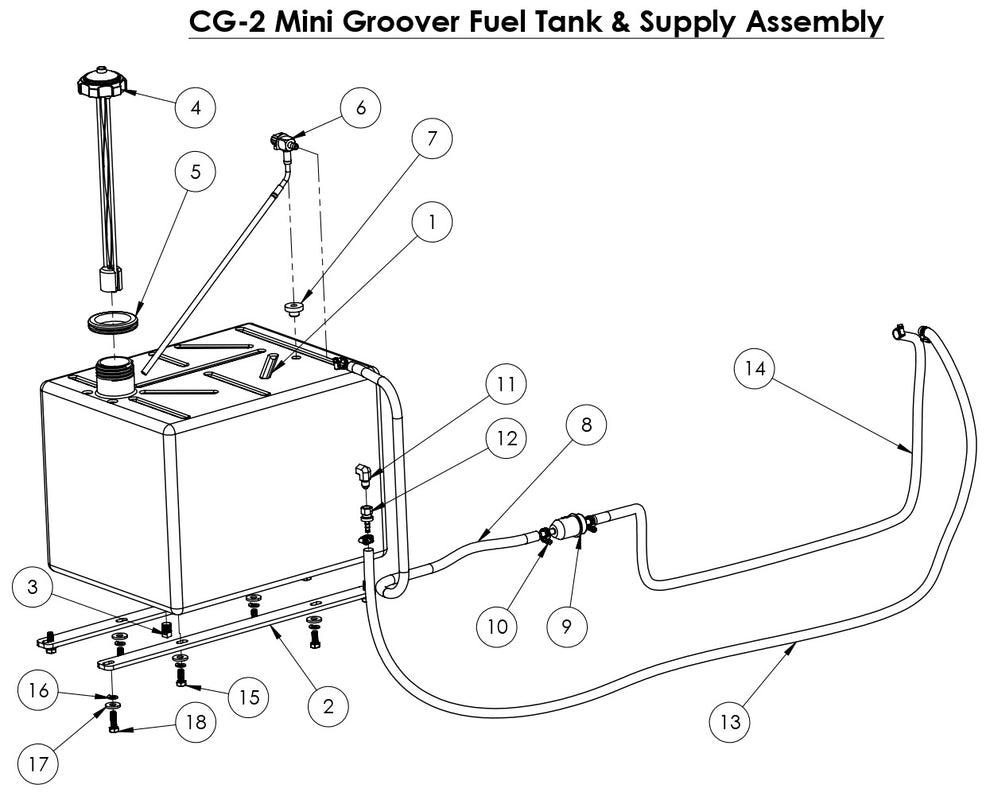

CG-2 (Diesel) Mini Groover Fuel Tank & Supply Assembly Parts

CG-2 (Diesel) Mini Groover Fuel Tank & Supply Assembly Parts

  • CG-2 (Diesel) Mini Groover Fuel Tank & Supply Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2501784 Fuel Tank for CG-2 Diesel Mini Groover Core Cut by Diamond Products
Call for Price call for price call for price
2
6010257 Fuel Tank Mount Bar for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$26.65
3
3200206 Pipe Plug, 1/4" NPT for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$6.99
4
2504786 Fuel Tank Cap & Gauge for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$69.98
5
2500205 Fuel Tank Grommet for CC-DC-SS Deep Cut Saw Core Cut by Diamond Products
$6.91
6
2501777 Fuel Valve w/Pick-Up for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$35.17
7
2501215 Bushing, Rubber, Tank for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$4.99
9
2501785 Filter, Diesel Fuel for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$34.44
10
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
11
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.37
12
3200091 Fitting, 1/4" F. JIC to 1/4" Push Lock for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$6.26
13
6010103 Fuel Return Hose, 5/16" I.D x 48" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$26.13
14
6013095 Fuel Supply Hose, 5/16" I.D. x 54" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$9.80
16
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900567 5/16" Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
18
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
8
6010693 Fuel Supply Hose, 5/16" I.D. x 30" for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$38.18
15
2900019 5/16-18x .750" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
