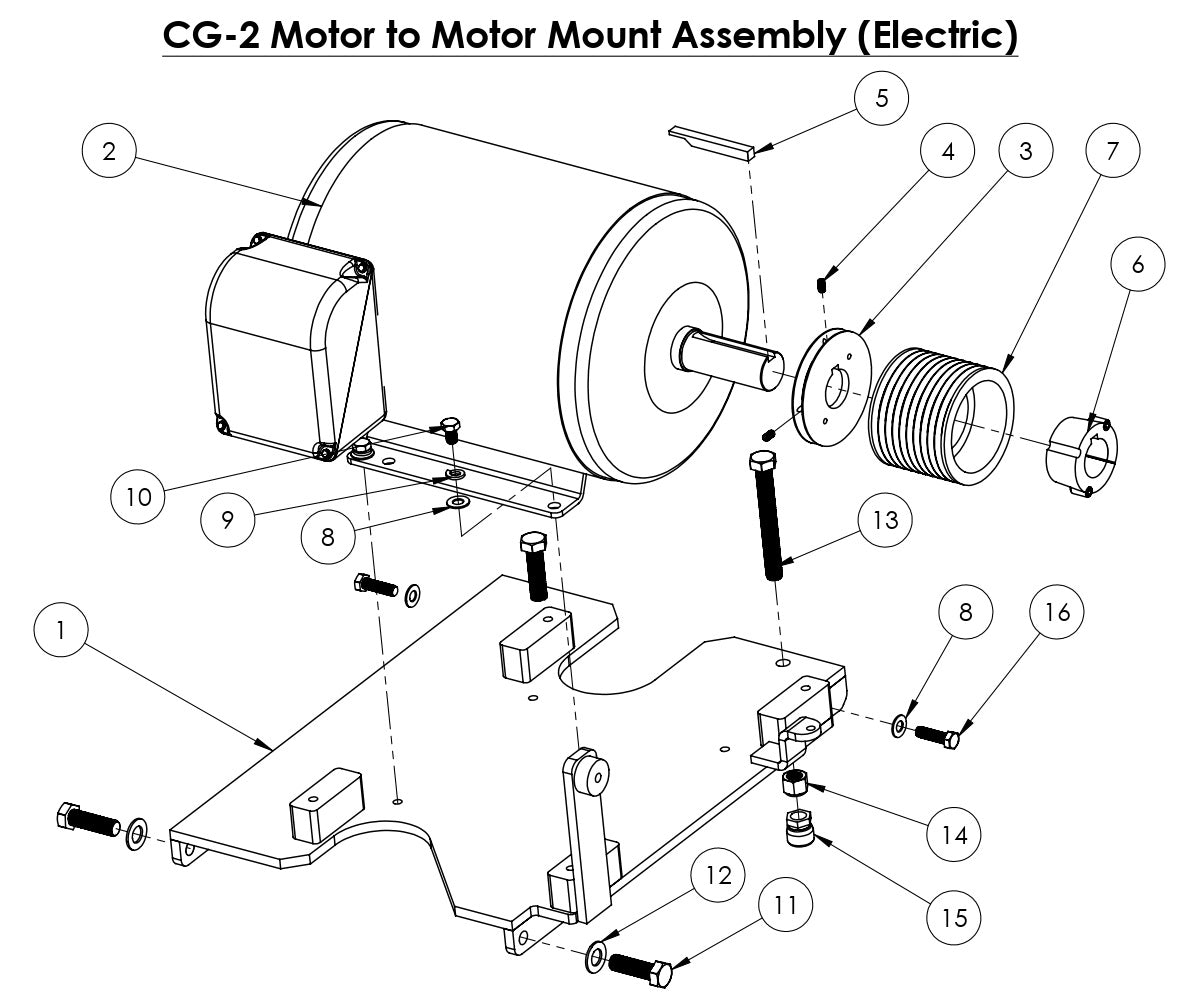

CG-2 (Electric) Mini Groover Motor to Motor Mount Assembly Parts

CG-2 (Electric) Mini Groover Motor to Motor Mount Assembly Parts

  • CG-2 (Electric) Mini Groover Motor to Motor Mount Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6075509 Engine Mount Weldment for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$1,863.18
2
2600182 Motor, 30hp Lincoln for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$7,593.60
3
6012019 Pulley, Accessory Drive for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$154.44
4
2900418 5/16-18 x .625" Cup Point Set Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$2.99
5
6082015 Bevel/Step Key for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
Call for Price call for price call for price
6
2500392 Taper Bushing, 1-7/8" w/Setscrews for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$85.01
7
2506429 Sheave 5.6" x 10 Groove QD Style for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
Call for Price call for price call for price
8
2900058 1/2 FLAT WASHER for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
9
2900084 1/2 SPLIT LOCK WASHER for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$2.99
10
2900495 1/2-13 x .750" Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$4.99
11
2900717 3/4-10 x 2.50" Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$15.55
12
2900003 3/4" SAE Flat Washer for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
13
2903520 3/4-10 x 6.00" F/T Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
Call for Price call for price call for price
14
2900467 3/4-10 Nylon-Insert Hex Locknut for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$4.99
15
2900476 Swivel Pad Nut, 3/4-10 for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$40.89
16
2900139 1/2-13 x 1.75" Hex Head Cap Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
