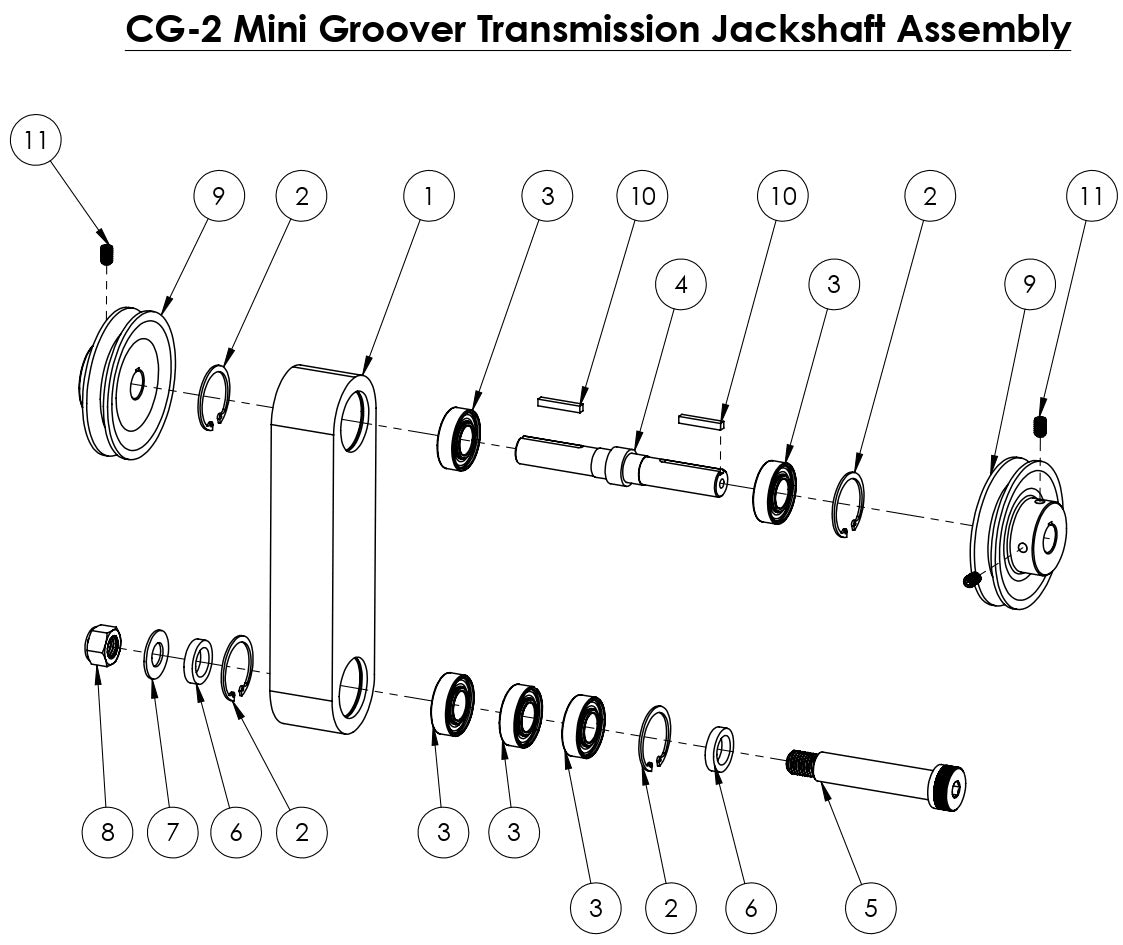

CG-2 (Electric) Mini Groover Transmission Jackshaft Assembly Parts

CG-2 (Electric) Mini Groover Transmission Jackshaft Assembly Parts

  • CG-2 (Electric) Mini Groover Transmission Jackshaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010667 Jackshaft Pivot Housing for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$141.57
2
2501748 Retaining Ring, 42mm Internal for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$4.99
3
2501743 Ball Bearing, 20mm x 42mm x 12mm for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$13.99
4
6010666 Idler Jackshaft for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$75.41
5
2900669 20mm x 90mm (M16) Shoulder Bolt for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$39.82
6
6010685 Bearing Spacer, 1/4" for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$40.03
7
2900202 5/8 SAE Flat Washer for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
8
2900670 M16 Nylon-Insert Hex Locknut for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$3.99
9
2500455A Pulley, 4" Single Groove for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
Call for Price call for price call for price
10
6048229 Key, 3/16" Sq. x 1-1/4" for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$2.99
11
2900617 5/16-18 x .500" Cup Point Set Screw for CG-2 Mini Groover (ELECTRIC) Core Cut by Diamond Products
$6.02
