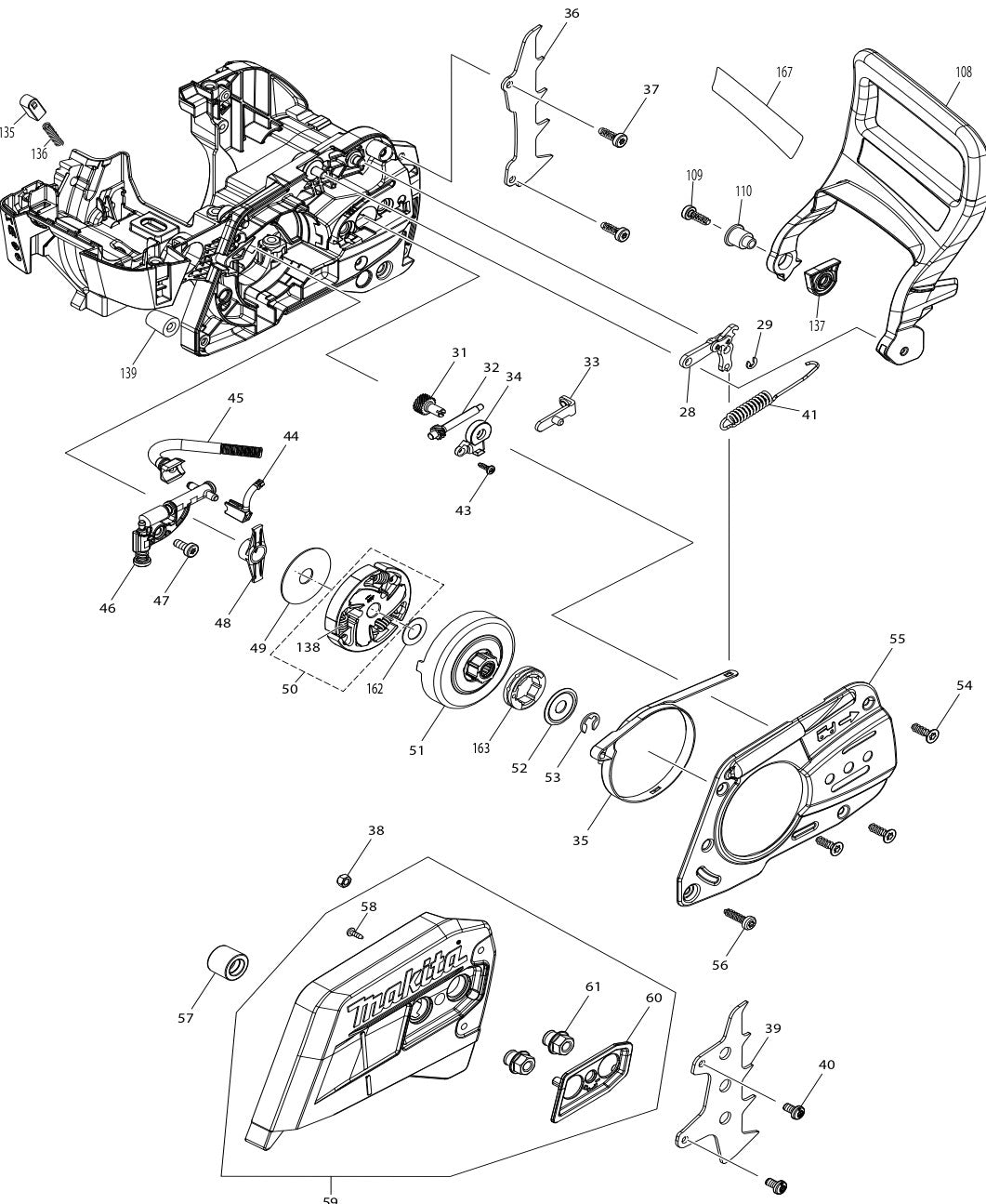

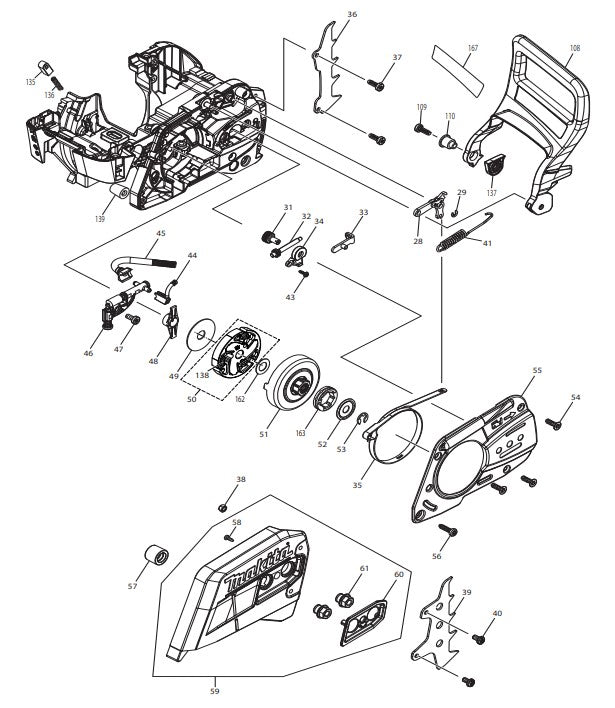

Oil Pump, Chain Brake, Clutch Assembly Parts For EA5600FREG, EA5600FRGG Gas Chain Saw Parts by Makita

Oil Pump, Chain Brake, Clutch Assembly Parts For EA5600FREG, EA5600FRGG Gas Chain Saw Parts by Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
28
185213100 LINK PLATE CPL, EA5600F BY MAKITA
$9.71
29
9610119 STOP RING E4, LS1016L BY MAKITA
$3.99
29
2579340 STOP RING E4, EA4300F BY MAKITA
$3.99
29
927304000 SAFETY WASHER , DCS431 BY MAKITA
$3.99
31
181213250 ADJUSTING SCREW, DCS510 BY MAKITA
$15.64
32
2277431 HELICAL GEAR 11, EA3200S BY MAKITA
$18.20
32
181213230 TENSIONING SCREW, DCS510 BY MAKITA
$17.25
33
130213251 TENSION SLIDE, EA6100 BY MAKITA
$19.63
33
130213250 TENSION SLIDE, EA6100 BY MAKITA
$10.35
33
130213240 TENSION SLIDE, EA6100 BY MAKITA
$7.76
34
4526674 GEAR COVER, EA4300F BY MAKITA
$5.99
35
3460295 BRAKE BAND, EA4300F BY MAKITA
$16.98
36
130250011 SPIKE BAR, EA5600F BY MAKITA
$12.76
37
2664789 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
109
2664789 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
38
920405000 HEXAGONAL NUT M5 (MP 50), DCS6401 BY MAKITA
$3.99
39
3266483 SPIKE BAR, EA5600F BY MAKITA
$5.99
40
2668505 H.L. BIND BOLT M5X10, EA3601F BY MAKITA
$3.99
41
181213023 TENSION SPRING, DCS5121 BY MAKITA
$11.31
43
2664218 TAPPING SCREW 3X10, HR2811F BY MAKITA
$3.99
58
2664218 TAPPING SCREW 3X10, HR2811F BY MAKITA
$3.99
44
4241789 OIL TUBE, EA4300F BY MAKITA
$16.98
45
181245300 OIL LINE CPL., EA5000P BY MAKITA
$23.93
46
1613460 OIL PUMP CPL., EA3201S BY MAKITA
$47.00
47
908705125 CYLINDER SCREW M5X12, DCS460 BY MAKITA
$3.99
48
4509561 PUMP DRIVE, EA4300F BY MAKITA
$16.76
49
2673891 GUIDE DISC, EA6100 BY MAKITA
$7.76
49
001182042 GUIDE DISC, DCS6401 BY MAKITA
$9.32
50
1274432 CLUTCH ASS'Y, EA4300F BY MAKITA
$36.38
50
181180300 CLUTCH ASS'Y, EA4300F BY MAKITA
$34.50
51
181223200 CLUTCH DRUM CPL., EA5000 BY MAKITA
$26.45
52
2678207 WASHER 29, EA4300F BY MAKITA
$8.79
53
2590457 STOP RING E8, EA4300F BY MAKITA
$3.99
54
913850155 SCREW 5X15, EK6101 BY MAKITA
$3.99
55
3266475 CHAIN BRAKE COVER, EA5600F BY MAKITA
$5.99
56
2664755 TAPPING SCREW TORX 5.5X20, EK7651H BY MAKITA
$3.99
56
913455204 SCREW M5.5X20, DCS6800I BY MAKITA
$3.99
57
4563783 CHAIN CATCHER, EA5600F BY MAKITA
$3.99
59
131213642 SPROCKET GUARD ASS'Y (RED), EA5600F BY MAKITA
$52.00
59
131213641 SPROCKET GUARD ASS'Y (RED), EA5600F BY MAKITA
$52.00
59
131213640 SPROCKET GUARD ASS'Y (RED), EA5600F BY MAKITA
$52.90
60
4566749 NUT COVER, EA5600F BY MAKITA
$3.99
61
1624930 FLANGE NUT CPL., XCU07 BY MAKITA
$5.99
61
1446895 FLANGE NUT CPL., EA5600F BY MAKITA
$5.99
108
131213050 HAND GUARD GUIDE, EA5600F BY MAKITA
$14.81
110
3266768 BUSH 10, EA5600F BY MAKITA
$5.99
135
3132129 HAND GUARD GUIDE, EA3201S BY MAKITA
$3.99
136
181213060 COMPRESSION SPRING, DOLMAR, PS32 BY MAKITA
$3.99
137
4566139 SPACER, EA5600F BY MAKITA
$3.99
138
2323523 TENSION SPRING, EK7301 BY MAKITA
$5.99
138
181184020 TENSION SPRING, EK7301 BY MAKITA
$5.99
139
181111230 IMPACT PROTECTION, DCS510 BY MAKITA
$7.76
162
181224090 SHIM, DCS5121 BY MAKITA
$5.99
163
026224010 RIM SPROCKET 3/8",DCS520I BY MAKITA
$12.01
30
2277449 HELICAL GEAR 18, PS32C BY MAKITA
$14.99
45
Call for Price call for price call for price
51
Call for Price call for price call for price
54
Call for Price call for price call for price
59
Call for Price call for price call for price
167
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
