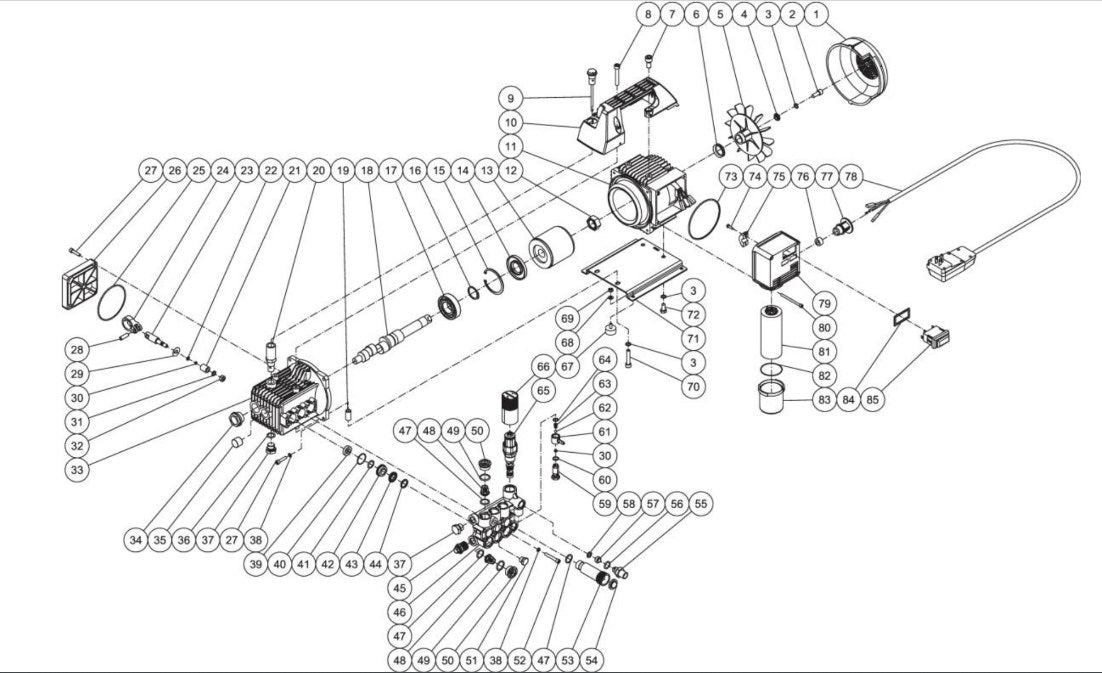

CM-1250-0MEH (sn:10346736-99999999), CM-1400-0MEH (sn:0-10568358) Pump Assembly Parts by MiTM

CM-1250-0MEH (sn:10346736-99999999), CM-1400-0MEH (sn:0-10568358) Pump Assembly Parts by MiTM

  • CM-1250-0MEH (sn:10346736-99999999), CM-1400-0MEH (sn:0-10568358) Pump Assembly Parts by MiTM
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
62-0168 Fan Cover BY MITM
$41.45
2
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
3
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
4
9-0079 Fan Bushing BY MITM
$12.83
5
52-0060 Motor Fan BY MITM
$34.64
6
26-0281 Ring Seal Fan BY MITM
$16.68
7
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
8
27-9569 BOLT BY MITM
$3.99
9
46-0155 Oil Dipstick BY MITM
$20.12
10
62-0169 Handle BY MITM
$66.83
11
26-0280 Seal BY MITM
$20.33
12
46-0106 Ring Snap BY MITM
$8.78
13
46-0245 Ring Snap for AC1-PE15-20M1 Air Compressor by Mi-T-M 460245
$4.85
14
33-0420 Baseplate Spacer BY MITM
$16.20
15
46-0154 Spacer BY MITM
$15.60
16
46-0148 Plunger for AC1-PE15-20M1 Air Compressor by Mi-T-M 460148
$107.42
17
46-1110 Crankcase Cover BY MITM
$35.78
18
27-8869 Screw BY MITM
$1.35
19
46-1112 Crankcase BY MITM
$786.11
20
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
21
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
22
25-0141 O-Ring 25.12 X 1.78Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250141
$4.85
23
25-0128 O-Ring 15.08 X 2.62Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 250128
$3.99
24
46-0158 Packing Retainer 15Mm for AC1-PE15-20M1 Air Compressor by Mi-T-M 460158
$28.58
25
46-0157 Packing BY MITM
$13.98
26
46-0156 Head Ring for MiTM Pressure Washers 460156
$76.83
27
22-0370 Valve-Thermal Relief BY MITM
$18.77
28
46-0279 Manifold BY MITM
$430.95
29
25-0053 O-Ring (See Kit 70-0028) for MiTM Pressure Washers by MiTM 250053
$7.49
30
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
31
27-8406 Bolt for MiTM Pressure Washers 278406
$18.42
32
23-0433 Inlet Fitting BY MITM
$103.55
33
8-0130 Nipple for AC1-HE15-05M Air Compressor by Mi-T-M 80130
$47.30
34
25-0051 O-Ring 9/16 X 3/4 for AP1-PI65-08M Air Compressor by Mi-T-M 250051
$2.99
35
62-170 Nozzle Unloader BY MITM
Call for Price call for price call for price
36
25-0050 O-Ring 9.92 X 2.60Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250050
$10.16
37
8-0174 Valve Seat Injector for AP1-PI65-08M Air Compressor by Mi-T-M 80174
$64.52
38
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
39
46-0789 Pump Hose Barb for AP1-PI65-08M Air Compressor by Mi-T-M 460789
$9.42
40
50-0012 Ball .218 Dia Ss for AP1-PI65-08M Air Compressor by Mi-T-M 500012
$8.99
41
49-0020 Spring 4.3/7.3 X 11 .01Ss for AP1-PI65-08M Air Compressor by Mi-T-M 490020
$5.99
42
25-0120 O-Ring 3/8 X 1/2 for AC1-HE15-05M Air Compressor by Mi-T-M 250120
$1.99
43
8-0545 Unloader BY MITM
$256.50
44
7-0071 Knob BY MITM
$20.93
45
14-0094 Rubber Isolator Foot BY MITM
$14.12
46
28-0200 WASHER BY MITM
$2.03
47
30-3024 Nut for MiTM Pressure Washers 303024
$7.65
48
27-9590 Bolt BY MITM
$2.03
49
5-0193 Base Plate BY MITM
$64.80
50
27-8042 Bolt-With Pump for MiTM Pressure Washers 278042
$7.65
51
25-0554 O-ring BY MITM
Call for Price call for price call for price
52
27-5029 Screw BY MITM
Call for Price call for price call for price
53
62-0167 Wire Clamp BY MITM
$4.32
54
26-0282 Gasket BY MITM
$3.38
55
32-0795 Power Cord Strain Relief BY MITM
$10.13
56
32-0796 Cord BY MITM
$34.70
57
62-0166 Electrical Box BY MITM
$89.78
58
27-8395 Screw BY MITM
$4.05
59
32-0185 Capacitor BY MITM
$212.57
60
25-0140 O-ring BY MITM
$3.51
61
62-0165 Capacitor Cover BY MITM
$22.28
62
26-0283 Power Switch Gasket BY MITM
$10.80
63
32-0797 Power Switch BY MITM
$206.82
64
70-0378 V-Packing Kit (Inc. 3 each of 40, 41, 43, 44) BY MITM
$57.32
65
70-0379 V-Packing Assembly (Inc. 1 each og 40, 41, 42, 43, 44) BY MITM
$32.40
