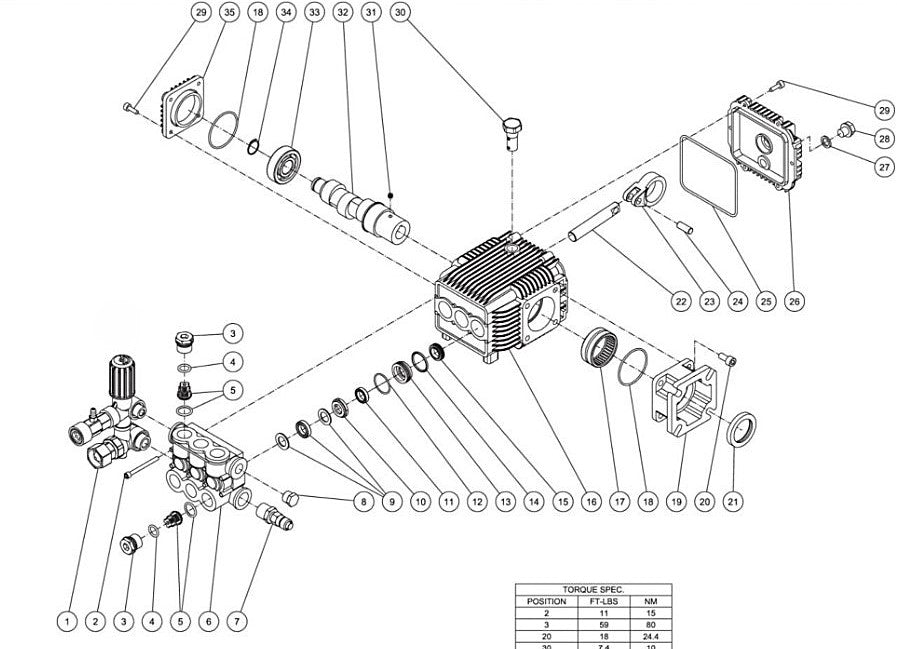

CM-3000-0MLB, CM-3000-0MLB-C, CM-3000-CMLB (sn:10817969-10845374), CM-3200-0MMB (sn:0-10845374) Pump assembly Parts by MiTM

CM-3000-0MLB, CM-3000-0MLB-C, CM-3000-CMLB (sn:10817969-10845374), CM-3200-0MMB (sn:0-10845374) Pump assembly Parts by MiTM

  • CM-3000-0MLB, CM-3000-0MLB-C, CM-3000-CMLB (sn:10817969-10845374), CM-3200-0MMB (sn:0-10845374) Pump assembly Parts by MiTM
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
8-0632 UNLOADER BY MITM
$78.98
2
27-0898 Bolt for MiTM Air Compressors by MiTM 270898
$2.99
3
39-0231 Valve Plug M22-1.5P for AM2-VE75-80M Air Compressor by Mi-T-M 390231
$11.82
4
25-0622 O-Ring 18.38 X 2.62Mm for MiTM Air Compressors by MiTM 250622
$4.43
5
70-0502 Kit Valves W/O-Rings for AM2-VE75-80M Air Compressor by Mi-T-M 700502
$36.36
6
46-1503 Manifold Head Brass for MiTM Air Compressors by MiTM 461503
$218.36
7
70-0501 Kit High Pressure Seal Kit for AM2-VE75-80M Air Compressor by Mi-T-M 700501
$53.04
8
46-1311 Intermediate Seal Retainer for AM2-VE75-80M Air Compressor by Mi-T-M 461311
$12.21
9
46-1312 Lp Retainer Ring for AM2-VE75-80M Air Compressor by Mi-T-M 461312
$8.99
10
25-0663 O-Ring 15 X 2.5 Mm for MiTM Air Compressors by MiTM 250663
$4.43
11
46-1313 Oil Seal 24Mm X 15Mm X 6Mm for AM2-VE75-80M Air Compressor by Mi-T-M 461313
$14.70
12
48-0096 Bearing-Needle 52Mmx43Mmx20Mm for MiTM Air Compressors by MiTM 480096
$40.47
13
25-0603 O-Ring 50.47 X 2.62Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250603
$2.99
14
46-1314 Flange for AM2-VE75-80M Air Compressor by Mi-T-M 461314
$38.04
15
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
16
26-0320 Oil Seal 50Mm X 36Mm X 7Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260320
$8.99
17
46-1504 Piston Ceramic Coated for MiTM Air Compressors by MiTM 461504
$29.94
18
46-1505 Piston- Wrist - Pin for MiTM Air Compressors by MiTM 461505
$11.03
19
25-0604 O-Ring 130Mm X 2.65Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250604
$5.99
20
46-1317 1506 Backplate W/Sight Glass for AM2-VE75-80M Air Compressor by Mi-T-M 461317
$32.57
21
26-0322 Gasket 17.5Mm X 12Mm X 2Mm for AM2-VE75-80M Air Compressor by Mi-T-M 260322
$2.99
22
39-0232 Drain Plug M13-1.3P X 10Mm for AM2-VE75-80M Air Compressor by Mi-T-M 390232
$5.99
23
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
24
70-0503 Kit Dipstick Complete for AM2-VE75-80M Air Compressor by Mi-T-M 700503
$7.28
25
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
26
46-1506 Snap Ring for MiTM Pressure Washers by MiTM 461506
$2.99
27
46-1507 Crankshaft Cover for MiTM Pressure Washers by MiTM 461507
$18.60
View full details
