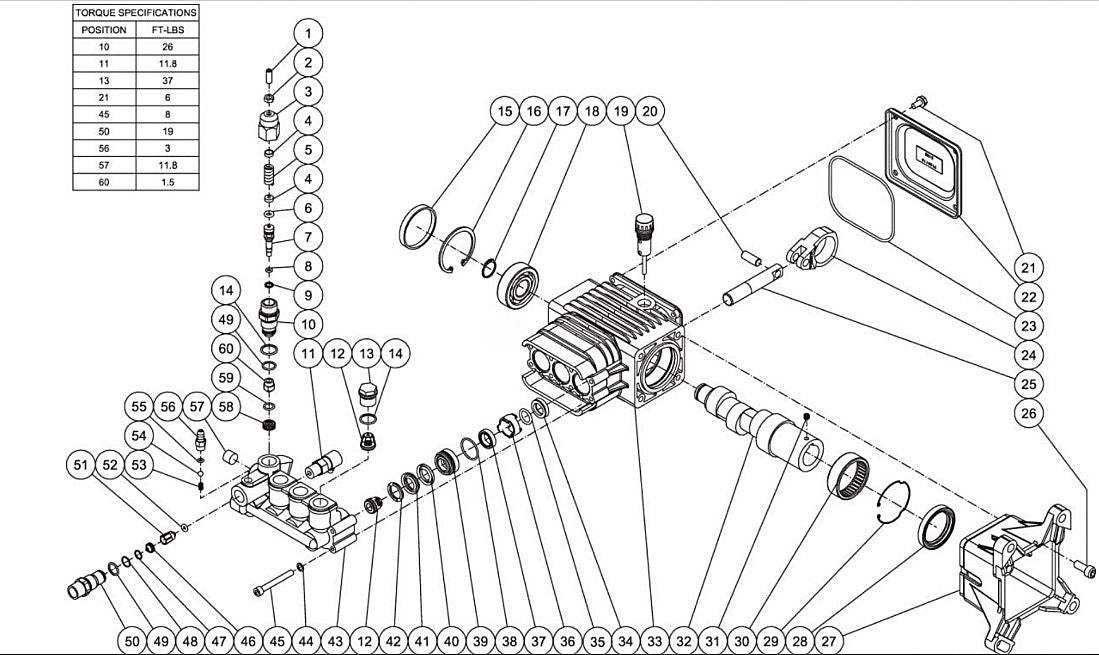

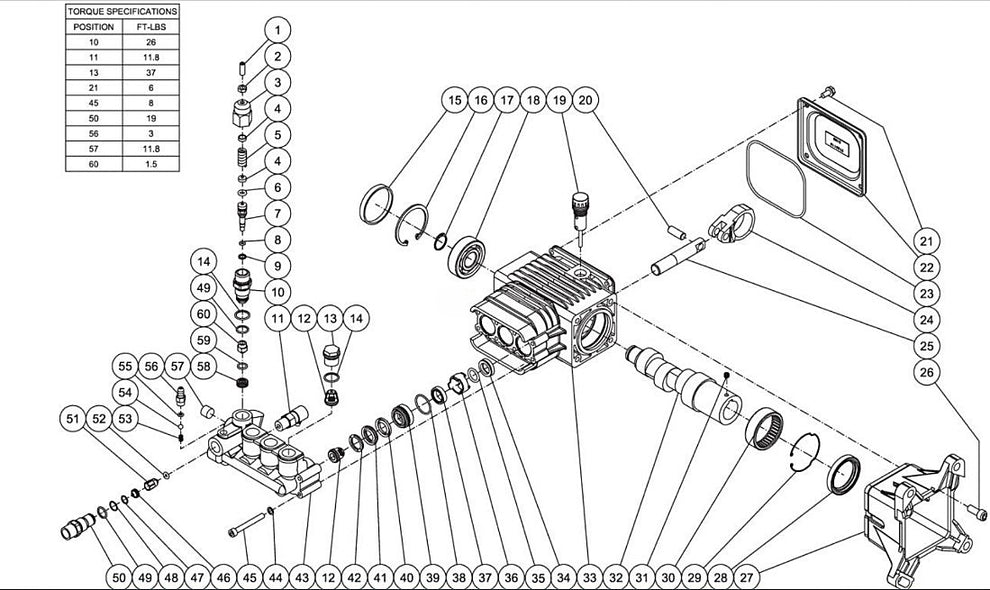

CM-4000-0MLB Pump assembly Parts by MiTM

CM-4000-0MLB Pump assembly Parts by MiTM

  • CM-4000-0MLB Pump assembly Parts by MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
1
27-9596 SET SCREW (SEE KIT 70-0461) BY MITM 27-9596 SET SCREW (SEE KIT 70-0461) BY MITM
$137.91
2
30-6024 Nut for MiTM Air Compressors by MiTM 306024 30-6024 Nut for MiTM Air Compressors by MiTM 306024
$4.43
3
8-0551 ADJUSTMENT BARREL - BRASS (SEE KIT 70-0461) BY MITM 8-0551 ADJUSTMENT BARREL - BRASS (SEE KIT 70-0461) BY MITM
$31.73
4
8-0501 Spring Button Brass for AM2-S305-80M Air Compressor by Mi-T-M 80501 8-0501 Spring Button Brass for AM2-S305-80M Air Compressor by Mi-T-M 80501
$7.28
5
49-0157 SPRING (SEE KIT 70-0461) BY MITM 49-0157 SPRING (SEE KIT 70-0461) BY MITM
$8.10
6
25-0526 O-Ring 6.02 X 2.62Mm for AC2-SV09-20M Air Compressor by Mi-T-M 250526 25-0526 O-Ring 6.02 X 2.62Mm for AC2-SV09-20M Air Compressor by Mi-T-M 250526
$14.85
7
8-0565 PISTON (SEE KIT 70-0461) BY MITM 8-0565 PISTON (SEE KIT 70-0461) BY MITM
$25.65
8
25-0163 O-Ring 6.07 X 1.78Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250163 25-0163 O-Ring 6.07 X 1.78Mm for AM2-VE75-80M Air Compressor by Mi-T-M 250163
$2.99
9
25-0589 BACK-UP RING (SEE KIT 70-0461) BY MITM 25-0589 BACK-UP RING (SEE KIT 70-0461) BY MITM
$2.03
10
8-0585 PISTON GUIDE (SEE KIT 70-0461) BY MITM 8-0585 PISTON GUIDE (SEE KIT 70-0461) BY MITM
$40.10
11
22-0408 THERMAL RELIEF VALVE BY MITM 22-0408 THERMAL RELIEF VALVE BY MITM
$24.30
13
39-0364 VALVE CAP (SEE KIT 70-0610) BY MITM 39-0364 VALVE CAP (SEE KIT 70-0610) BY MITM
$24.78
14
25-0159 O-Ring 15.60 X 1.78Mm for AC1-PR06-20M Air Compressor by Mi-T-M 250159 25-0159 O-Ring 15.60 X 1.78Mm for AC1-PR06-20M Air Compressor by Mi-T-M 250159
$7.28
15
46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725 46-0725 Pump Bearing Cap for AC1-HE02-05M by Mi-T-M 460725
$18.73
16
46-0676 Retaining Ring for AC1-SE05-60M Air Compressor by Mi-T-M 460676 46-0676 Retaining Ring for AC1-SE05-60M Air Compressor by Mi-T-M 460676
$11.10
17
46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732 46-0732 Pump Retainer for AC1-HE02-05M by Mi-T-M 460732
$2.85
18
48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063 48-0063 Bearing Ball for AC1-HE02-05M by Mi-T-M 480063
$83.17
19
39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090 39-0090 Oil Dipstick for AC1-HE02-05M by Mi-T-M 390090
$27.14
20
46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721 46-0721 Pump Piston Pin for AC1-HE02-05M by Mi-T-M 460721
$11.57
21
27-8874 BOLT BY MITM 27-8874 BOLT BY MITM
Call for Price call for price call for price
22
46-1245 PUMP REAR COVER BY MITM 46-1245 PUMP REAR COVER BY MITM
Call for Price call for price call for price
23
25-0317 O-Ring 101.27 X 2.62Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250317 25-0317 O-Ring 101.27 X 2.62Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250317
$14.31
24
46-1252 Connecting Rod BY MITM 46-1252 Connecting Rod BY MITM
$54.95
25
46-1247 PISTON (SEE KIT 70-0457) BY MITM 46-1247 PISTON (SEE KIT 70-0457) BY MITM
$82.56
26
27-9597 BOLT BY MITM 27-9597 BOLT BY MITM
$3.05
27
46-1244 Pump Flange for MiTM Pressure Washers by MiTM 461244 46-1244 Pump Flange for MiTM Pressure Washers by MiTM 461244
$126.12
28
26-0192 Seal Oil for AC1-SE05-80M Air Compressor by Mi-T-M 260192 26-0192 Seal Oil for AC1-SE05-80M Air Compressor by Mi-T-M 260192
$63.32
29
46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667 46-0667 Retaining Ring for AC1-HE02-05M by Mi-T-M 460667
$27.90
30
48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059 48-0059 Bearing Needle for AC1-HE02-05M by Mi-T-M 480059
$87.81
31
27-8886 Screw for MiTM Air Compressors by MiTM 278886 27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
32
46-1253 Crankshaft BY MITM 46-1253 Crankshaft BY MITM
$399.60
33
46-1243 PUMP HOUSING BY MITM 46-1243 PUMP HOUSING BY MITM
$222.08
34
26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193 26-0193 Seal Oil for AC1-HE02-05M by Mi-T-M 260193
$22.85
35
25-0305 O-Ring 13.95 X 2.62Mm for Mi-T-M CA-2504-0MHB by MiTM 250305 25-0305 O-Ring 13.95 X 2.62Mm for Mi-T-M CA-2504-0MHB by MiTM 250305
$11.24
36
46-1248 SPACER BY MITM 46-1248 SPACER BY MITM
$3.11
37
46-0727 Pump Low Pressure Seal for AM2-S375-30M Air Compressor by Mi-T-M 460727 46-0727 Pump Low Pressure Seal for AM2-S375-30M Air Compressor by Mi-T-M 460727
$25.91
38
25-0399 O-Ring for MiTM Air Compressors by MiTM 250399 25-0399 O-Ring for MiTM Air Compressors by MiTM 250399
Call for Price call for price call for price
39
46-1108 RETAINER BY MITM 46-1108 RETAINER BY MITM
$9.45
43
46-1246 PUMP HEAD BY MITM 46-1246 PUMP HEAD BY MITM
$280.13
44
29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153 29-0153 Lockwasher for MiTM Air Compressors by MiTM 290153
$7.43
45
27-9598 Screw for MiTM Air Compressors by MiTM 279598 27-9598 Screw for MiTM Air Compressors by MiTM 279598
$9.05
46
46-1250 Orifice for MiTM Pressure Washers 461250 46-1250 Orifice for MiTM Pressure Washers 461250
$45.51
47
25-0500 O-Ring 8.4 X 1Mm for MiTM Pressure Washers 250500 25-0500 O-Ring 8.4 X 1Mm for MiTM Pressure Washers 250500
$5.93
48
25-0596 O-Ring 12Mm X 1Mm for MiTM Pressure Washers 250596 25-0596 O-Ring 12Mm X 1Mm for MiTM Pressure Washers 250596
$5.93
49
25-0407 O-Ring 12.42 X 1.78Mm for AC2-SR09-20M Air Compressor by Mi-T-M 250407 25-0407 O-Ring 12.42 X 1.78Mm for AC2-SR09-20M Air Compressor by Mi-T-M 250407
$8.88
50
46-1251 Detergent Injector for MiTM Pressure Washers 461251 46-1251 Detergent Injector for MiTM Pressure Washers 461251
$112.17
51
46-1249 Non-Return Valve for MiTM Pressure Washers 461249 46-1249 Non-Return Valve for MiTM Pressure Washers 461249
$38.46
52
25-0406 O-Ring 4 X 2.5Mm for AM2-S305-80M Air Compressor by Mi-T-M 250406 25-0406 O-Ring 4 X 2.5Mm for AM2-S305-80M Air Compressor by Mi-T-M 250406
$4.28
53
8-0520 Spring for AM2-S375-80M Air Compressor by Mi-T-M 80520 8-0520 Spring for AM2-S375-80M Air Compressor by Mi-T-M 80520
$5.99
54
8-0521 Ball for AM2-S375-80M Air Compressor by Mi-T-M 80521 8-0521 Ball for AM2-S375-80M Air Compressor by Mi-T-M 80521
$7.28
55
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371 25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
56
46-0869 Hose Barb-1/8"-27 Bsppx8Mm Hb for AO1-HE15-04M Air Compressor by Mi-T-M 460869 46-0869 Hose Barb-1/8"-27 Bsppx8Mm Hb for AO1-HE15-04M Air Compressor by Mi-T-M 460869
$21.41
57
39-0363 Hex Socket Plug 1/4G for MiTM Pressure Washers 390363 39-0363 Hex Socket Plug 1/4G for MiTM Pressure Washers 390363
$8.93
58
8-0586 UNLOADER SEAT (SEE KIT 70-0461) BY MITM 8-0586 UNLOADER SEAT (SEE KIT 70-0461) BY MITM
$10.53
59
25-0255 O-Ring 11.11 X 1.78Mm for AC1-PR07-08M Air Compressor by Mi-T-M 250255 25-0255 O-Ring 11.11 X 1.78Mm for AC1-PR07-08M Air Compressor by Mi-T-M 250255
$8.99
60
8-0528 By-Pass Jet-Unloader for AC2-SR09-20M Air Compressor by Mi-T-M 80528 8-0528 By-Pass Jet-Unloader for AC2-SR09-20M Air Compressor by Mi-T-M 80528
$69.03
-
70-0293 Kit Injector Repair for AM2-VE75-80M Air Compressor by Mi-T-M 700293 70-0293 Kit Injector Repair for AM2-VE75-80M Air Compressor by Mi-T-M 700293
$9.15
-
70-0610 VALVE ASSEMBLY BY MITM 70-0610 VALVE ASSEMBLY BY MITM
$105.30
-
70-0457 PISTONS - 25 - 3 - 3 BY MITM 70-0457 PISTONS - 25 - 3 - 3 BY MITM
$105.30
-
70-0458 WATER SEALS - 35, 37, 38, 40, 41 - 3 - 3 BY MITM 70-0458 WATER SEALS - 35, 37, 38, 40, 41 - 3 - 3 BY MITM
$229.50
-
70-0459 OIL SEALS - 15, 23, 28, 34 - 1, 1, 1, 3 BY MITM 70-0459 OIL SEALS - 15, 23, 28, 34 - 1, 1, 1, 3 BY MITM
$108.00
-
70-0460 Support Ring Kit (Inc. 3 Each 13) for MiTM Pressure Washers by MiTM 700460 70-0460 Support Ring Kit (Inc. 3 Each 13) for MiTM Pressure Washers by MiTM 700460
$19.17
-
70-0461 UNLOADER - 1-3, 4, 5-10, 14, 49, 57-59 - 1, 2, 1, 1, 1, 1 BY MITM 70-0461 UNLOADER - 1-3, 4, 5-10, 14, 49, 57-59 - 1, 2, 1, 1, 1, 1 BY MITM
$70.88
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
