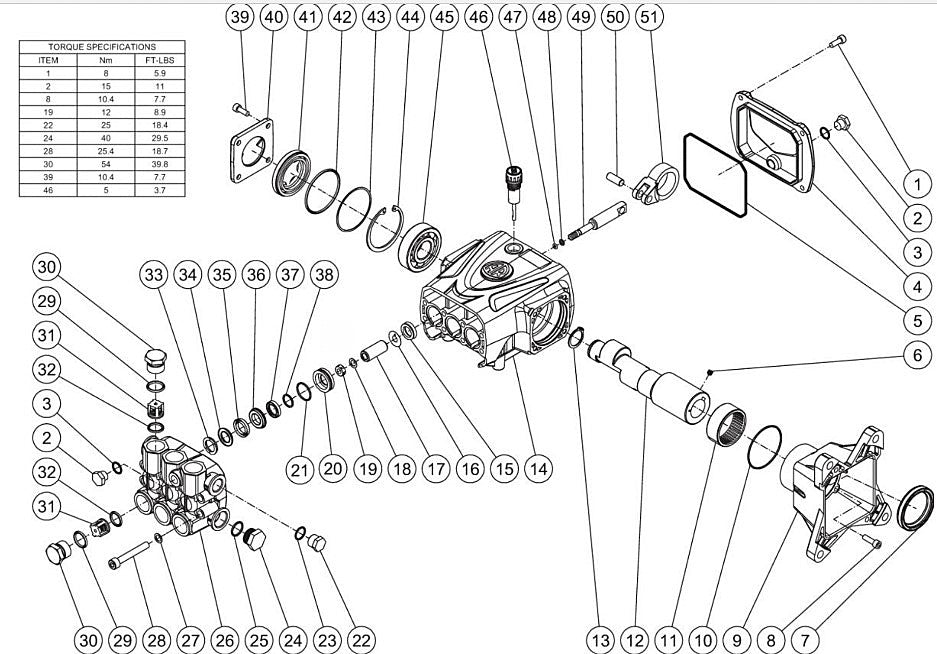

CM-4000-1MMB, WP-4000-5MHB/5MKB/5MSB (sn:10817969-99999999) Pump assembly Parts by MiTM

CM-4000-1MMB, WP-4000-5MHB/5MKB/5MSB (sn:10817969-99999999) Pump assembly Parts by MiTM

  • CM-4000-1MMB, WP-4000-5MHB/5MKB/5MSB (sn:10817969-99999999) Pump assembly Parts by MiTM
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
27-8408 Hhcs-Tcei M6 X 16Mm Tapping for MiTM Pressure Washers by MiTM 278408
$7.49
2
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
3
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
4
46-1482 Rear Cover for MiTM Pressure Washers by MiTM 461482
$122.96
5
27-8886 Screw for MiTM Air Compressors by MiTM 278886
$7.43
6
46-1486 Snap Ring (See Kit 70-0591) for MiTM Pressure Washers by MiTM 461486
Call for Price call for price call for price
7
27-8812 Screw for MiTM Pressure Washers by MiTM 278812
$7.49
8
46-1487 Flange for MiTM Pressure Washers by MiTM 461487
$247.07
9
25-0657 O-Ring 56.87 X 1.78Mm for MiTM Pressure Washers by MiTM 250657
Call for Price call for price call for price
10
48-0040 Needle Bearing/Hk 4520 for AP1-PI65-08M Air Compressor by Mi-T-M 480040
$175.01
11
46-1606 Crankshaft (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461606
$367.25
12
46-1485 Circlip for MiTM Pressure Washers by MiTM 461485
$7.49
13
46-1607 Crankcase (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461607
$333.45
14
28-1027 Slinger Washer for MiTM Air Compressors by MiTM 281027
$8.93
15
30-6016 Nut for MiTM Air Compressors by MiTM 306016
$8.75
16
25-0149 O-Ring 23.52 X 1.78Mm for AP1-PI55-08M (AFTER S/N 20005741) Air Compressor by Mi-T-M 250149
$7.28
17
25-0510 O-Ring I.D. 14X1.75Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250510
$7.28
18
39-0202 Plug for MiTM Pressure Washers by MiTM 390202
$28.80
19
46-1608 Pump Head for MiTM Pressure Washers by MiTM 461608
$437.46
20
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
21
27-0905 Head Bolt for MiTM Pressure Washers 270905
$19.98
22
39-0251 Valve Cap-Stainless Steal for MiTM Pressure Washers by MiTM 390251
$83.60
23
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
24
46-1453 Crankcase Cover for MiTM Pressure Washers by MiTM 461453
$55.40
25
46-1686 Oil Level Indicator (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461686
$59.97
26
26-0403 Gasket (See Kit 70-0690) for MiTM Pressure Washers by MiTM 260403
$10.22
27
46-1484 Snap Ring for MiTM Pressure Washers by MiTM 461484
$25.49
28
48-0087 Ball Bearing (See Kit 70-0690) for MiTM Pressure Washers by MiTM 480087
$68.40
29
25-0395 Backup Ring 5 X 8 X 1Mm for AC2-SH08-20M Air Compressor by Mi-T-M 250395
$9.15
30
46-1609 Piston (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461609
$121.68
31
46-1610 Wrist Pin (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461610
$21.15
32
46-1611 Connecting Rod (See Kit 70-0690) for MiTM Pressure Washers by MiTM 461611
$57.62
33
70-0179 Kit Valves for AC2-PE05-30M Air Compressor by Mi-T-M 700179
$152.18
34
70-0590 Water Seals Kit (Inc. 3 Each 14, 15, 17, 18, 19) for MiTM Pressure Washers by MiTM 700590
$167.52
35
70-0591 Oil Seals Kit (Inc. 65; Inc. 3 Each 25) for MiTM Pressure Washers by MiTM 700591
$84.08
36
70-0592 O-Rings for MiTM Pressure Washers 700592
Call for Price call for price call for price
37
70-0460 Support Ring Kit (Inc. 3 Each 13) for MiTM Pressure Washers by MiTM 700460
$19.17
38
70-0619 Piston Guide Kit (Incs. 3 Each 16, 20) for MiTM Pressure Washers by MiTM 700619
$98.00
39
70-0690 Crankcase Assy (Inc. 2-7, 9-14, 40-46; 3 Each Of 47-51, 15-19; 4 Each Of 1, 8) for MiTM Pressure Washers by MiTM 700690
$673.55
