Description

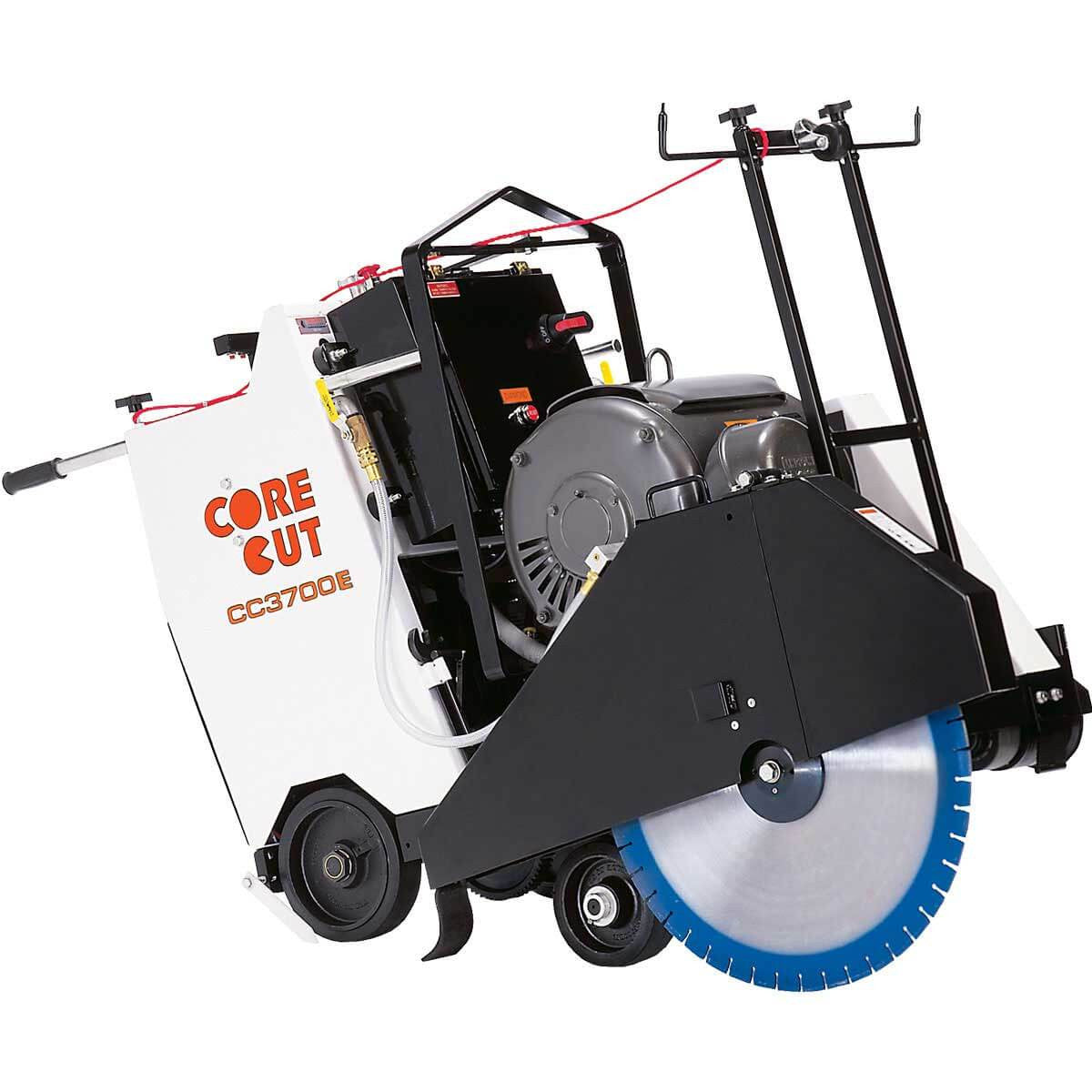

Core Cut CC3700 Self Propelled Concrete Saw 9209


Largest electric concrete saw available with more ways to build a custom saw to fit your needs. Saw has ability to run with optional 3-speed gearbox, soft start added for longer motor life, up to a 40 HP motor for increased cutting speed and productivity.


Specifications :


  • Blade Size Options : 14 inch, 20 inch, 26 inch, 30 inch, 36 inch
  • Depth of Cut : 4 1/2 inch, 7 1/2 inch, 10 1/2 inch, 113/4 inch, 14 3/4 inch
  • Arbor : 1 inch
  • Motor : Leeson 3 - Phase with Electric power source of 230V & Lincoln 3 Phase with Electric power source of 460 V
  • Power - 25 HP, 30HP, 40 HP
  • Weight : Varies based on blade capacity from 1350 lbs to 1435 lbs


Please refer to the attached specifications for detailed and more in depth features and specifications.


Features:


  • 30 inch width allows fit through a door
  • Forward positioned motor for more weight on the motor
  • One hand Saw Control
  • Sundstrand-Sauer transmissions standard, Eaton model 10 also available, call to inquire
  • Compact frame designed for the higher torque of a large horsepower engine
  • 1-3/4" diameter blade shaft with self-aligning bearings
  • Strongest frame on the market
  • Left or right hand sawing
  • Large 6 gallons fuel capacity for longer sawing
  • Raise/lower powered by electro-hydraulic pump
  • High temperature shut-off standard
  • Electric models includes motor starter switch-box with amp meter
  • 6 or 8 belts drive shaft
  • Slip-on blade guards through 30", 36" is bolt-on


Contents:


  • Core Cut CC3700 Self-Propelled Concrete Saw
  • Telescoping Front Pointer
  • Cutting Depth Indicator
  • Quick Disconnect Blade Flanges
  • Frame Lift
  • Hour Meter
  • Electric Start* (With Purchase of Electric Motor)
  • Operator's manual
