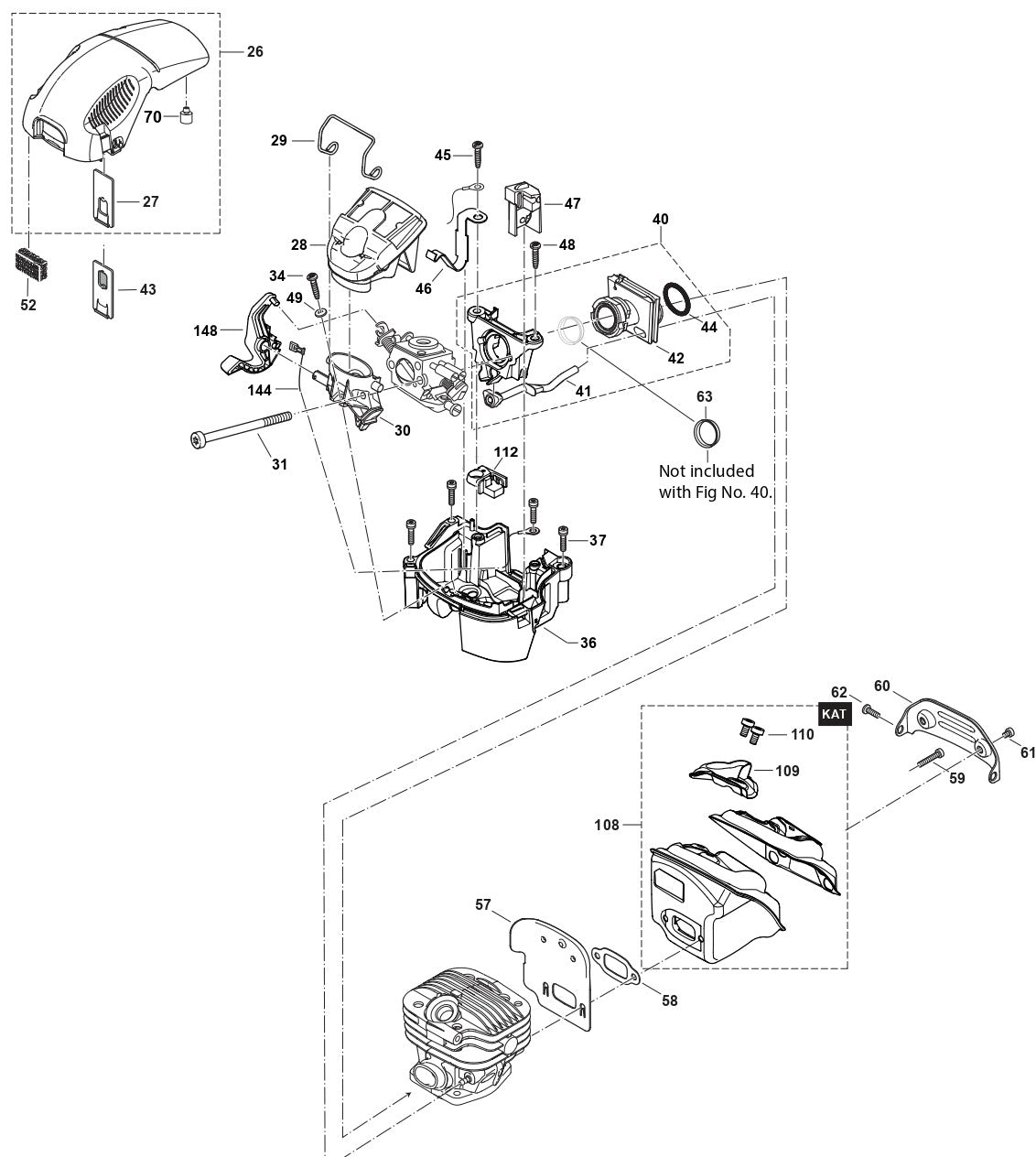

Cover, Air Filter, Muffler Assembly Parts For EA5000PRFL, EA5001PREG, EA5001PREL, EA5000PREG, EA5000PREL, EA5000PRGG Gas Chain Saw By Makita Gas Chain Saw By Makita Gas Chain Saw By Makita By Makita

Cover, Air Filter, Muffler Assembly Parts For EA5000PRFL, EA5001PREG, EA5001PREL, EA5000PREG, EA5000PREL, EA5000PRGG Gas Chain Saw By Makita Gas Chain Saw By Makita Gas Chain Saw By Makita By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
26
181118241 HOOD CPL. BLACK, EA5000 BY MAKITA
$23.40
27
181118060 INSERT, DCS510 BY MAKITA
$7.76
28
181173090 AIR FILTER CPL.NYLON,DCS510 BY MAKITA
$24.61
28
181173180 AIR FILTER ASS'Y, DCS5121 BY MAKITA
$34.28
28
181173240 AIR FILTER CPL.FINE, DCS460 BY MAKITA
$16.56
28
181173190 AIR FILTER CPL. FLEECE, DCS460 BY MAKITA
$24.84
29
181171050 AIR FILTER CLIP, DCS510 BY MAKITA
$7.76
30
181171011 INTAKE MANIFOLD, EA5000P BY MAKITA
$12.37
31
2664802 H.L SOCKET HEAD BOLD M5X55, EA5000P BY MAKITA
$5.99
31
908505555 TORX SCREW 5X55, EHW120 BY MAKITA
$5.99
34
2664789 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
45
2664789 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
48
2664789 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
34
913455164 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
45
913455164 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
48
913455164 SELFCUTTING SCREW,DCS520I BY MAKITA
$3.99
36
181131680 BOTTOM BLUE, EA5000 BY MAKITA
$36.83
36
181131160 BOTTOM RED, DOLMAR, PS5105 BY MAKITA
$39.87
37
2664721 SCREW, EA4300F BY MAKITA
$3.99
62
2664721 SCREW, EA4300F BY MAKITA
$3.99
37
908805205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 BY MAKITA
$3.99
62
908805205 CYLINDER SCREW W/LOCKWASHER M5X20, DCS460 BY MAKITA
$3.99
40
181171160 FLANGECPL., EA5000 BY MAKITA
$59.11
41
181131090 TUBE, DCS510 BY MAKITA
$15.77
42
181131041 SUCTION HOSE, EA5000P BY MAKITA
$41.99
42
181131040 SUCTION HOSE, DCS510 BY MAKITA
$31.28
43
181118160 INSERT FOR SUMMER/WINTER(SNOW), DCS460 BY MAKITA
$11.47
44
2339718 RING SPRING, EA3201S BY MAKITA
$5.99
44
181131070 ANNULAR SPRING, DCS510 BY MAKITA
$7.76
46
181155060 CONTACT SPRING, EA5000 BY MAKITA
$7.76
47
181155080 GUIDE, DCS5121 BY MAKITA
$7.76
49
928405000 WASHER, DCS340 BY MAKITA
$3.99
52
181173250 SNOW FILTER, DCS510 BY MAKITA
$5.99
57
181174062 COOLING PLATE, DCS5121 BY MAKITA
$11.46
57
181174061 COVER PLATE, DCS510 BY MAKITA
$10.56
58
181174050 GASKET, DCS510 BY MAKITA
$5.99
59
908005205 TORX SOCKET HEAD BOLT M5X20, EA5000P BY MAKITA
$3.99
59
908005205 TORX SOCKET HEAD BOLT M5X20, EA5000P BY MAKITA
$3.99
59
2664763 TORX SOCKET HEAD BOLT M5X20, EA5000P BY MAKITA
$3.99
60
181174091 PROTECTION COVER, DCS460 BY MAKITA
$10.31
61
2666121 H.L SOCKET HEAD BOLTM5X10, EA4300F BY MAKITA
$3.99
61
909005105 SCREW M5X10, DCS6421 BY MAKITA
$3.99
63
3464134 BUSH 17, EA3201S BY MAKITA
$5.99
63
185131020 INSERT FOR SUCTION HOSE, EK6101 BY MAKITA
$5.99
63
181131021 INSERT FOR SUCTION HOSE, DCS460 BY MAKITA
$5.99
70
4241739 DAMPING PLUG, EA3201S BY MAKITA
$3.99
70
181118070 DAMPING PLUG, DCS510 BY MAKITA
$7.76
108
181174301 MUFFLER, DCS5121 BY MAKITA
$123.48
109
181174470 SPARK ARRESTER SCREEN CPL., DCS5121 BY MAKITA
$18.41
110
2664747 TORX SOCKET HEAD BOLT M5X9, EK6101 BY MAKITA
$3.99
110
908005095 SCREW M5X9, DCS5200I BY MAKITA
$3.99
112
181131140 RUBBER BUSH, EA5000 BY MAKITA
$5.99
144
970311580 EARTH CABLE, DCS460 BY MAKITA
$8.42
148
181155070 CHOKE ON/OFF SWITCH, DCS5121 BY MAKITA
$5.99
49
