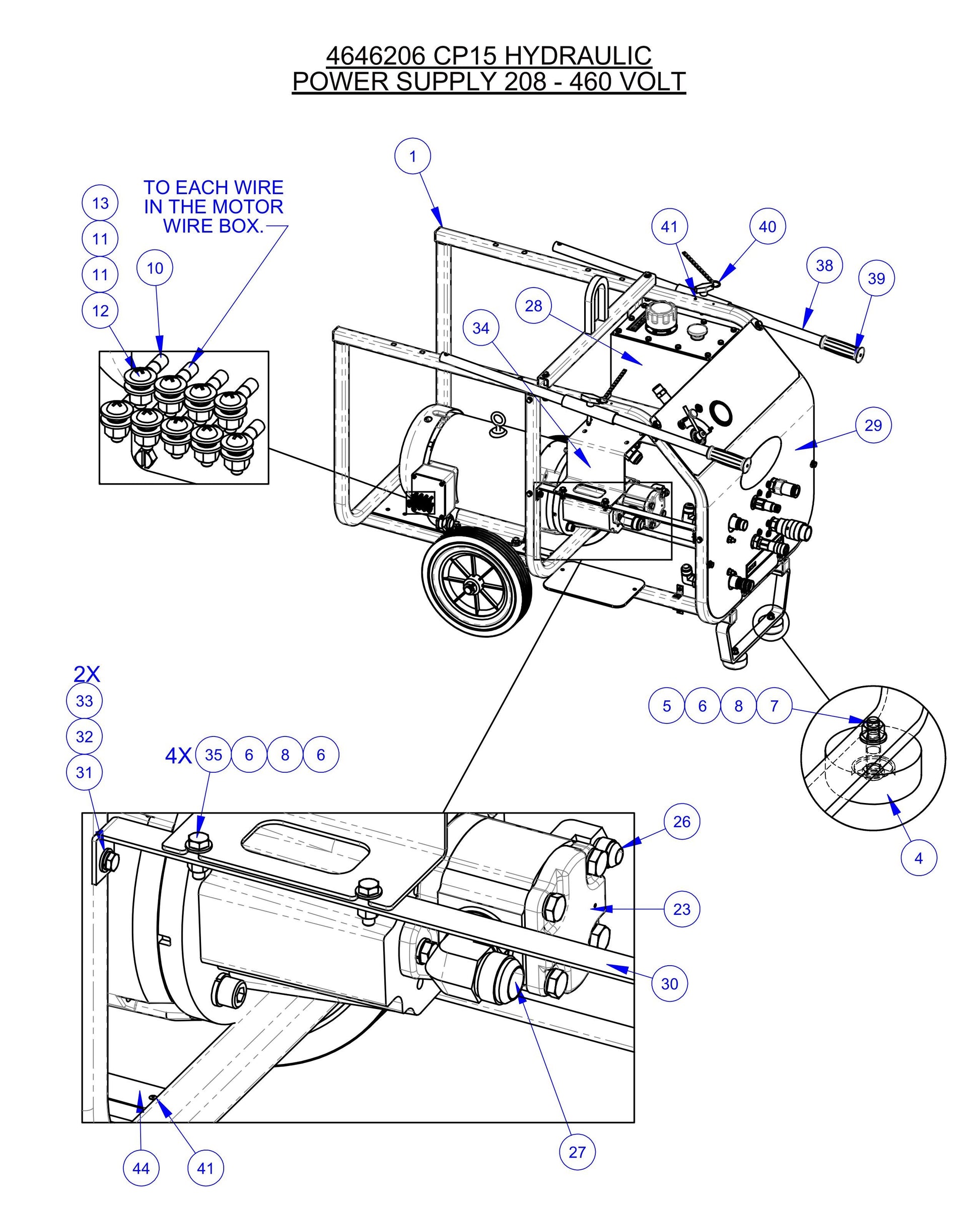

CP15EXL Fig-2 Hydraulic Power Supply 208-460 Volt Assembly Parts

CP15EXL Fig-2 Hydraulic Power Supply 208-460 Volt Assembly Parts

  • CP15EXL Fig-2 Hydraulic Power Supply 208-460 Volt Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4646156 CB-XL Frame Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,926.54
2
2400643 Wheel, 12 x 2-5/8 x 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$69.66
3
2400615 Set Collar, 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.56
4
2501767 Rubber Bumper for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.32
5
2901103 Fender Washer, 5/16" x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
6
2900022 Flat Washer, 5/16" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut, 5/16-18 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
4600079 Electric Motor, 15 HP, 3 Ph., 230/460 V. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$4,614.39
10
2800083 Terminal, #10 Ring (16-14 AWG) Blue for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
11
2900016 Flat Washer, #10 USS for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
12
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
13
2900017 Lock Nut, #10-24 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
14
2800193 Lock Nut, 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$3.99
15
2800312 Connector, 1" Sealtite Elbow for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$59.24
16
2900014 Flat Washer, 3/8" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
17
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
18
2900018 Locknut, 3/8-16, Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
19
2701801 Coupling Assembly, 1-3/8 - 3/4" Shafts for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$322.74
20
2400309 Pump Mount for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$255.42
21
2900084 Lock Washer, 1/2" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
22
2900511 Cap Screw,Soc. Hd., 1/2-13 x 1-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.88
23
2600490 Hydraulic Pump, .85 CI for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,059.30
24
2900006 Lock Washer, 3/8" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
25
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
26
3200298 Elbow, 3/4" O-Ring to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
27
3200297 Elbow, 1" O-Ring to 1" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.28
28
4646173 Hydraulic Tank Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,479.06
29
4646174 Panel Assembly, CB15 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
30
4646035 Fuel Tank Support for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$47.80
31
2900009 Flat Washer, 1/4" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
32
2900024 Lock Washer, 1/4" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
33
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
34
4641098 Starter Box Platform for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
35
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
36
4646049 Side Panel for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$78.56
37
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
38
4646006 Handle for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$54.00
39
2500636 Handle Grip for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.64
40
2900257 Lock Pin, T Handle, 3/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.52
41
2900053 Rivet, 3/32" Dia. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
42
4646003 Lifting Bar for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$77.51
43
2900248 Cap Screw, Hex Hd., 5/16-18 x 3" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$4.99
44
1800169 Serial Number Plate, US for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.24
45
4646143 Hose Kit for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
46
Call for Price call for price call for price
