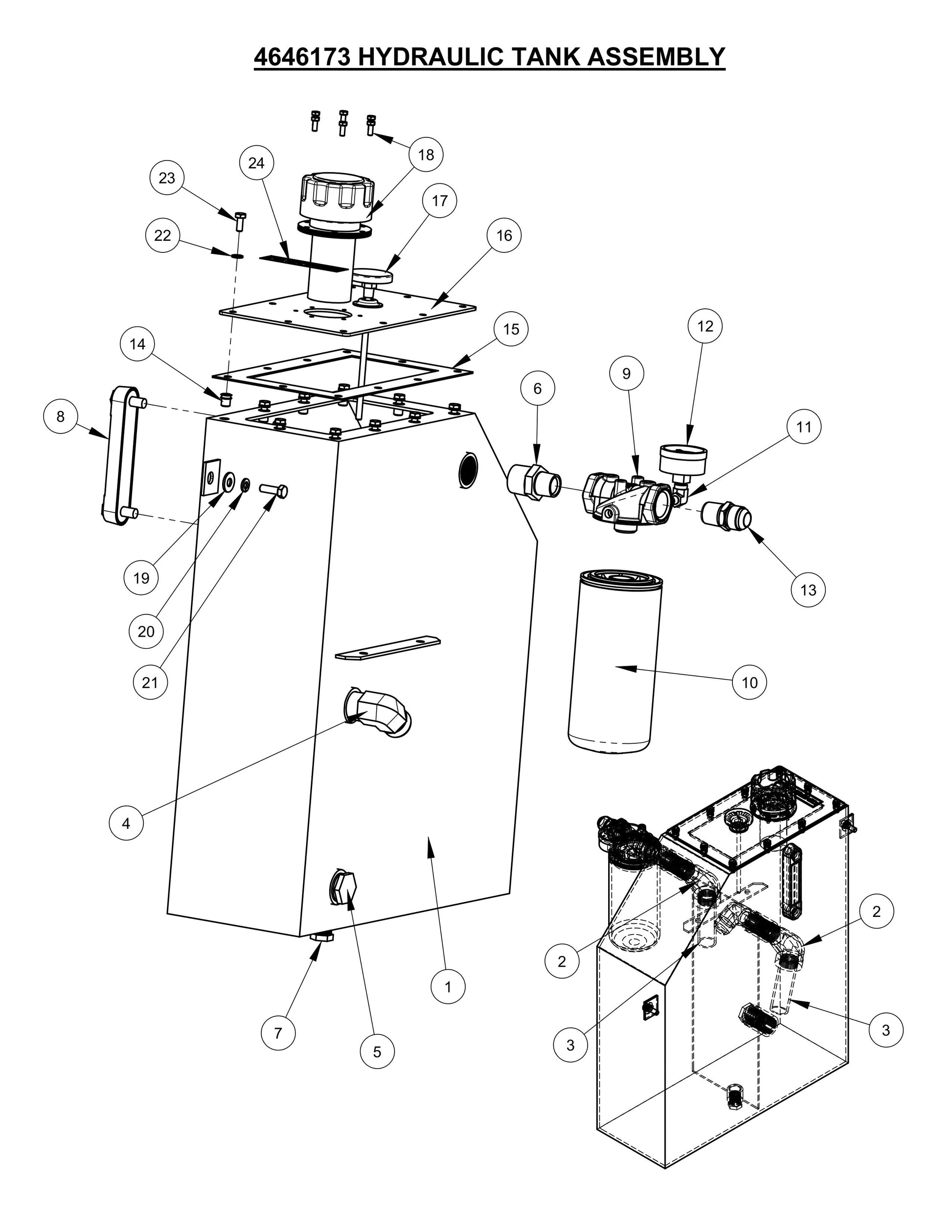

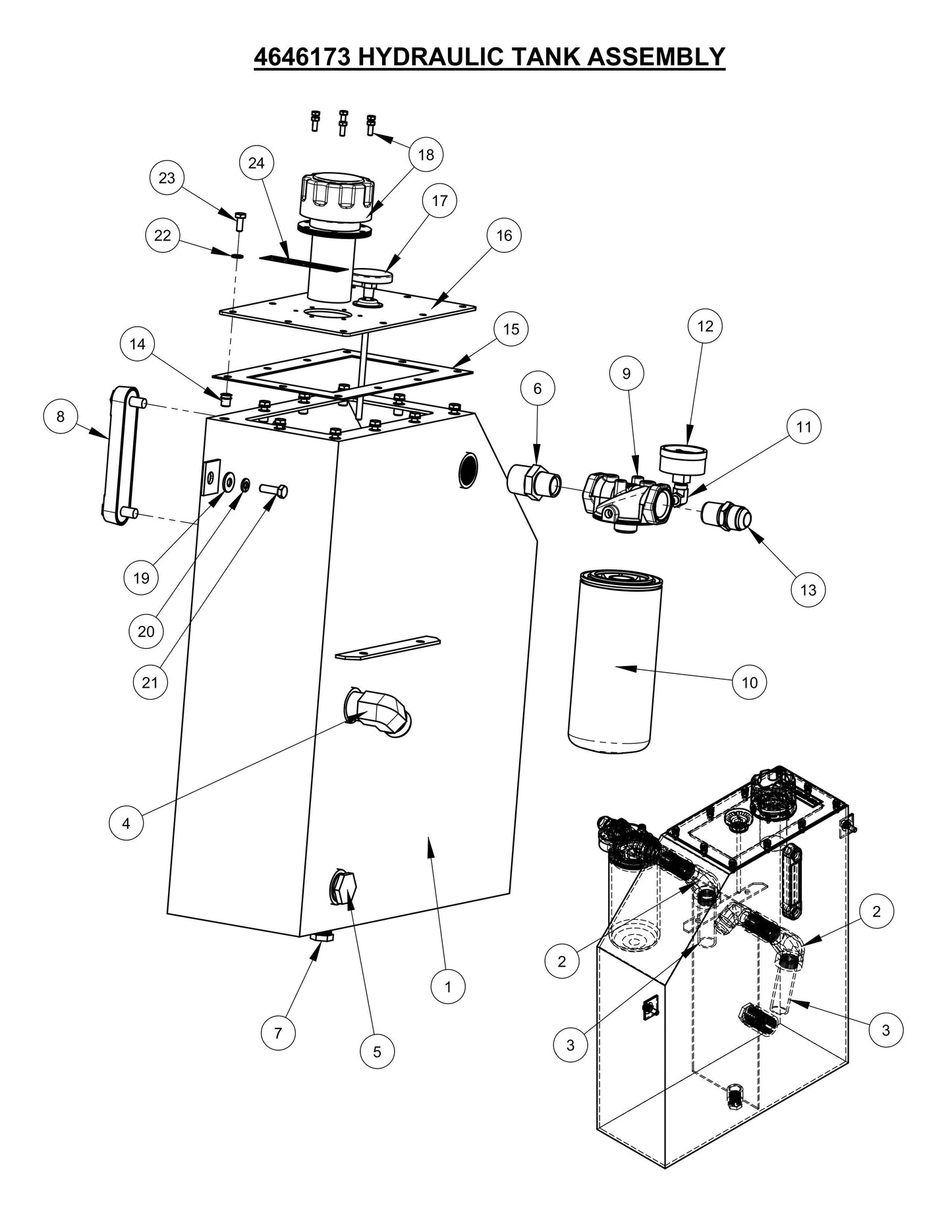

CP15EXL Hydraulic Tank Assembly Parts

CP15EXL Hydraulic Tank Assembly Parts

  • CP15EXL Hydraulic Tank Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
4640120 Hydraulic Tank Weldment for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$578.16
2
3200409 Street Elbow, 1" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$20.45
3
3200427 Nipple, 1" NPT x 4", Schedule 40 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
4
3200289 Elbow, 1" M. Pipe to 1" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
5
3200288 Plug, 1" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$20.45
6
3200431 NIpple, 1"MPT - 3/4" MPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$21.52
7
3200160 Plug, 1/2-14 NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
8
2400166 Sight Gauge, Liquid Level for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$94.70
9
2703290 Filter Head, 3/4" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$57.16
10
3201175 Hydraulic Filter Element for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$118.00
11
3200156 Street Elbow, 1/8" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.18
12
3200502 Gauge, Hydraulic Pressure for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
13
3200097 Adapter, 3/4" M. JIC to 3/4" M. Pipe for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$10.76
14
2900441 Rivet Nut, 1/4-20 Round for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
15
4646083 Gasket, Hyd Tank for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$36.59
16
4640121 Cover, Hydraulic Tank for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$81.78
17
2800459 Thermometer, 2", 0 - 200 F for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$295.02
18
2401305 Filler/Breather Cap (Top Mount) for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$80.76
18
2900339 Cap Screw, Hex Hd., M5 x 12mm for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
19
2900567 Flat Washer, 5/16" USS for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
20
2900031 Lock Washer, 5/16" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
21
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
22
2900024 Lock Washer, 1/4" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
23
2900023 Cap Screw, Hex Hd., 1/4-20 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
24
1800535 Decal, "Hydraulic Fluid Only" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
