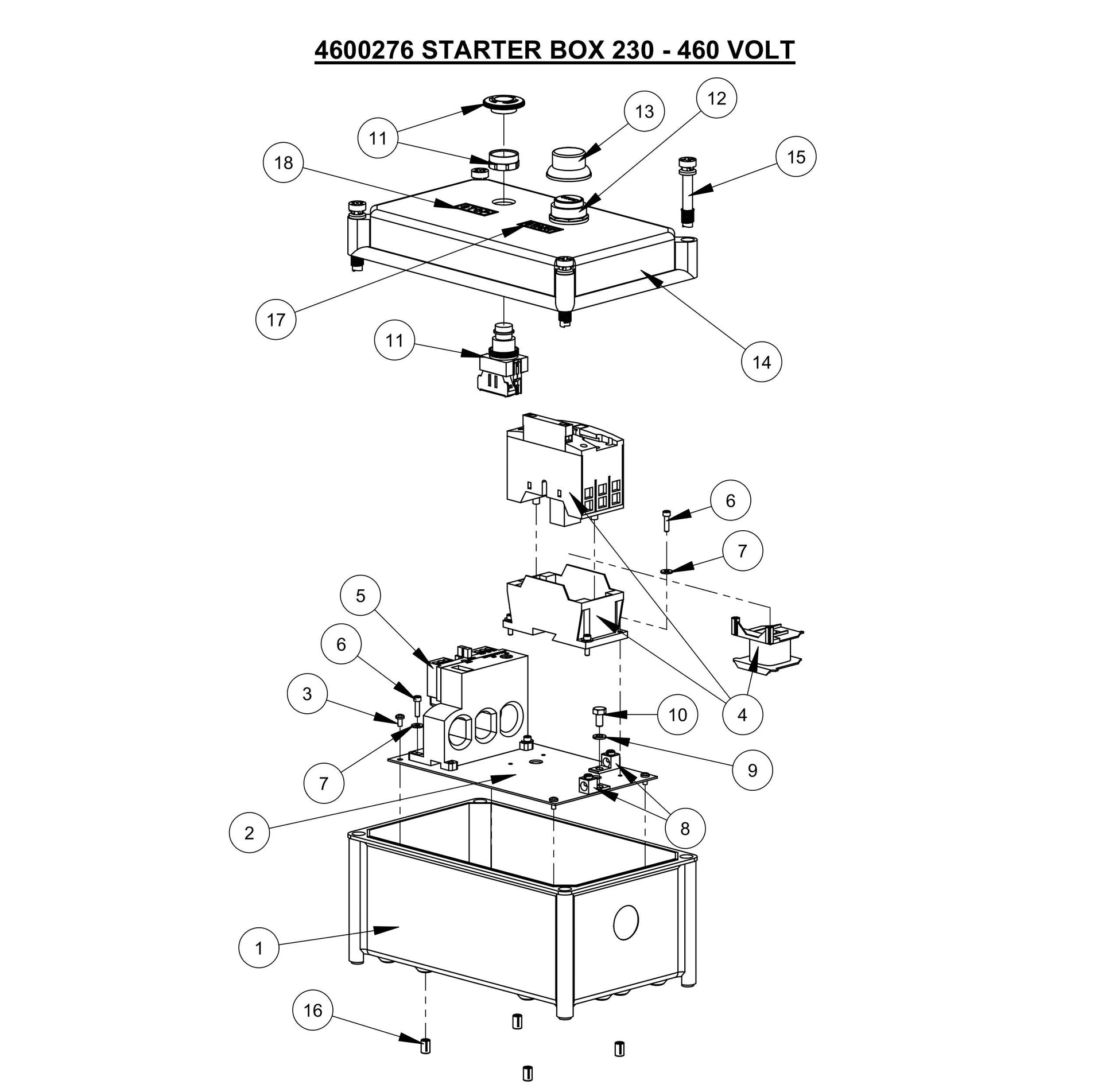

CP15EXL Starter Box 230-460 Volt Assembly Parts-1

CP15EXL Starter Box 230-460 Volt Assembly Parts-1

  • CP15EXL Starter Box 230-460 Volt Assembly Parts-1
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6040300G Electrical Box Base for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$387.09
2
6040598 Sub-plate for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.09
3
2900676 Machine Screw, Pan Hd., M4-0.7 x 8mm for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
4
2801704 Contactor, 220-240V (includes coil) for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$343.20
4
2801265 Replacement Coil, 220-240V for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$172.26
5
2800899 Overload Relay, 13-52 Amp for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$870.21
6
2901827 Cap Screw, Soc. Hd., #8-32 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2901437 Flat Washer, #10 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2800315 Grounding Lug for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.91
9
2900024 Lock Washer, 1/4" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
10
2901891 Cap Screw, Hex Hd., 1/4-28 x 1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
11
2801636 E-Stop Switch, 600V, NC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$111.00
12
4600166 Start Switch for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$190.08
13
2800222 Clear Protective Boot for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$97.93
14
6048339 Cover, Electric Box, 2 Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$286.11
15
2701414 Fastener, Electrical Box Top for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.74
16
2901332 1/4-20 Threaded Insert for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$4.99
17
1801638 Decal, Start for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
18
1801639 Decal, Stop for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.99
