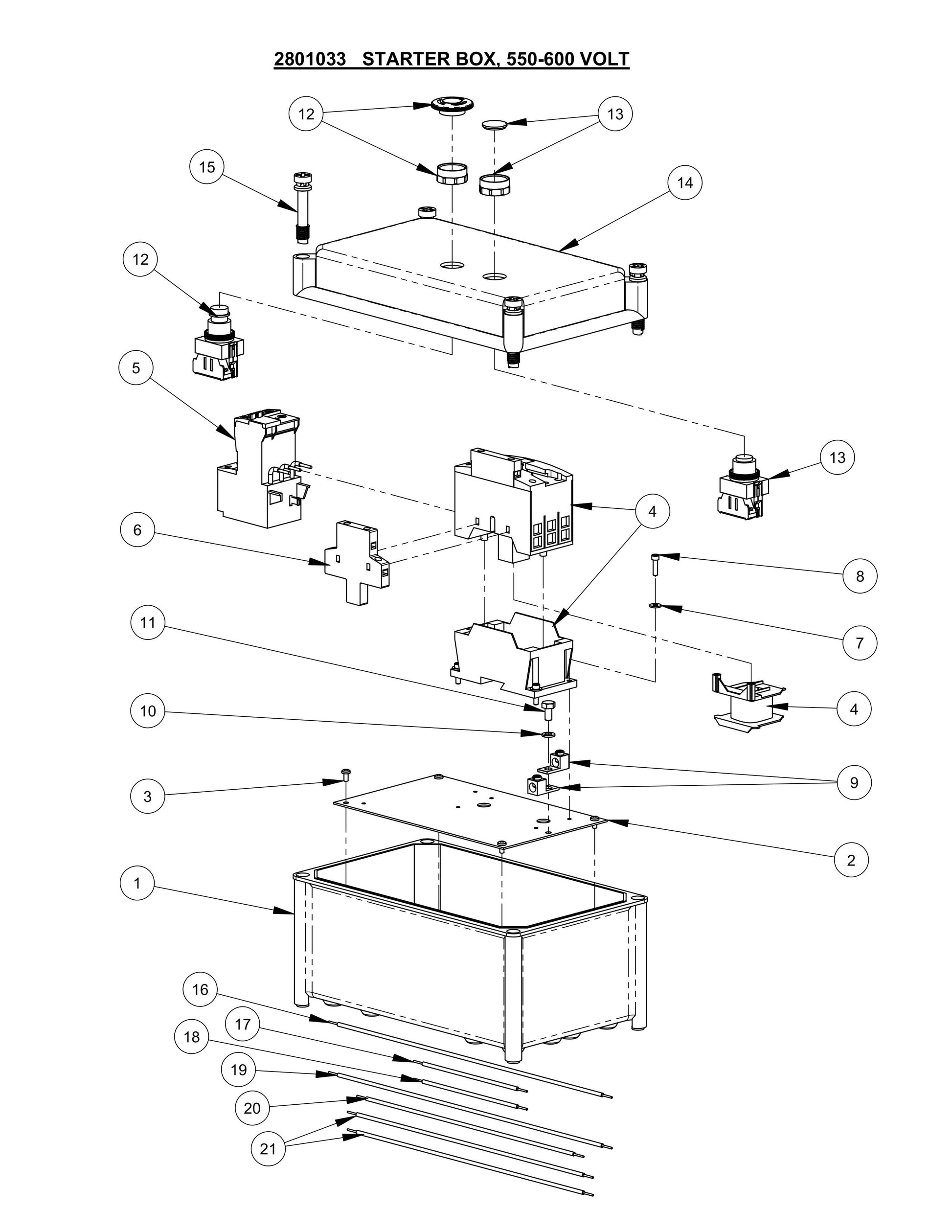

CP15EXL Starter Box, 550-600 Volt Assembly Parts-2

CP15EXL Starter Box, 550-600 Volt Assembly Parts-2

  • CP15EXL Starter Box, 550-600 Volt Assembly Parts-2
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2702419 Electrical Box (Base) for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$263.34
2
6040598 Sub-plate for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$102.09
3
2900676 Machine Screw, Pan Hd., M4-0.7 x 8mm for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
4
2801709 Contactor, 550-600V (includes coil) for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$346.50
4
2801267 Replacement Coil, 550-600V for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$147.60
5
2801699 Overload Relay, 9-45 AMP for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$214.83
6
2801676 Auxilary Contacts, 1NO-NC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$81.97
7
2901437 Flat Washer, #10 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2901827 Cap Screw, Soc. Hd., #8-32 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
9
2800315 Grounding Lug for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$9.91
10
2900024 Lock Washer, 1/4" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
11
2901891 Cap Screw, Hex Hd., 1/4-28 x 1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
12
2801636 E-Stop Switch, 600V, NC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$111.00
13
2801639 Pushbutton, N.O., 600V for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$70.11
14
6048296 Electric Box Cover, 2 Hole for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
15
2701414 Fastener, Electrical Box Top for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$11.74
16
4600293 Wire, 14 Gage, Yellow, 15" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.43
17
4600294 Wire, 14 Gage, Yellow, 6" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.70
18
4600295 Wire, 14 Gage, Black, 6" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.67
19
4600296 Wire, 14 Gage, Black, 15" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$12.01
20
4600297 Wire, 14 Gage, Red, 12" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.12
21
4600298 Wire, 14 Gage, Red, 13" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$7.19
