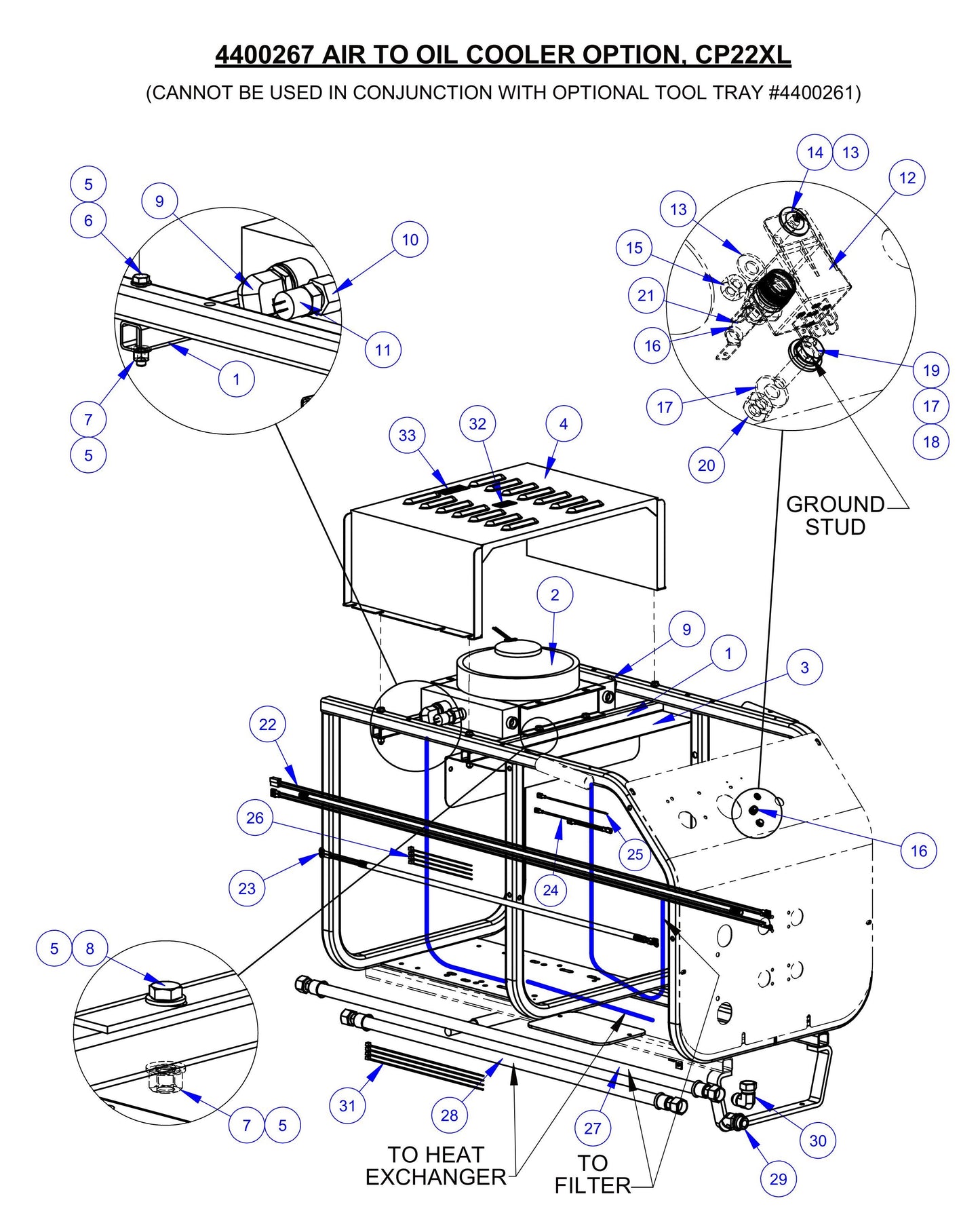

CP22XL Air To Oil Cooler Option Assembly Parts

CP22XL Air To Oil Cooler Option Assembly Parts

  • CP22XL Air To Oil Cooler Option Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4600083 Tube, 1" Sq. x 23-3/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$47.40
2
2400318 Heat Exchanger, Air/Oil, 12 Volt for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1,722.60
3
4641097 Heat Shield for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$99.14
4
4641159 Radiator Guard for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$230.40
5
2900022 Flat Washer, 5/16" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
6
2900248 Cap Screw, Hex Hd., 5/16- 18 x 3" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
7
2900039 Lock Nut, 5/16-18 Nylon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
8
2900538 Cap Screw, Hex Hd., 5/16-18 x 1-3/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
9
3200400 Elbow, 3/4" O-Ring to 3/4" Male JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$19.37
10
3201012 1/2" O-ring - 1/2" FPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.76
11
2800697 Temperature Switch, 1/2 NPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$160.38
12
2800144 Relay, 50 Amp, 12V, SPDT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$27.64
13
2900016 Flat Washer, #10 USS for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
14
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
15
2900017 Lock Nut, #10-24 Nylon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
16
2800481 Fuse Holder for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$15.62
17
2900009 Flat Washer, 1/4" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
18
2900024 Lock Washer, 1/4" Split for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
19
2900008 Cap Screw, Hex Hd., 1/4- 20 x 1" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
20
2900125 Hex Nut, 1/4-20 for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
21
2803014 Fuse, 15 Amp, Slo Blow for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$7.96
22
4641154 Wire Assy., 4 Wire for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$82.50
23
4641155 Wire Assy., Red & Grn, 14 Ga. for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$55.47
24
4641156 Wire Assy, Black & Red for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$17.42
25
4641157 Wire Assy., 20 Ga., Brn, 8-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.46
26
2800068 Wire Tie, 7-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
27
4645028 Hose Assembly, 3/4 x 51.4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
28
4646161 Hose Assembly, 3/4 x 41-3/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
29
3200458 Elbow, 3/4" O-Ring to 3/4" M. JIC (45deg) for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$22.73
30
3200417 Elbow, 3/4" F. JIC to 3/4" M. JIC for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$22.60
31
2800278 Wire Tie, 14" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
32
1800537 Label, HOT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.08
33
1801707 Decal, Caution, Fan for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
