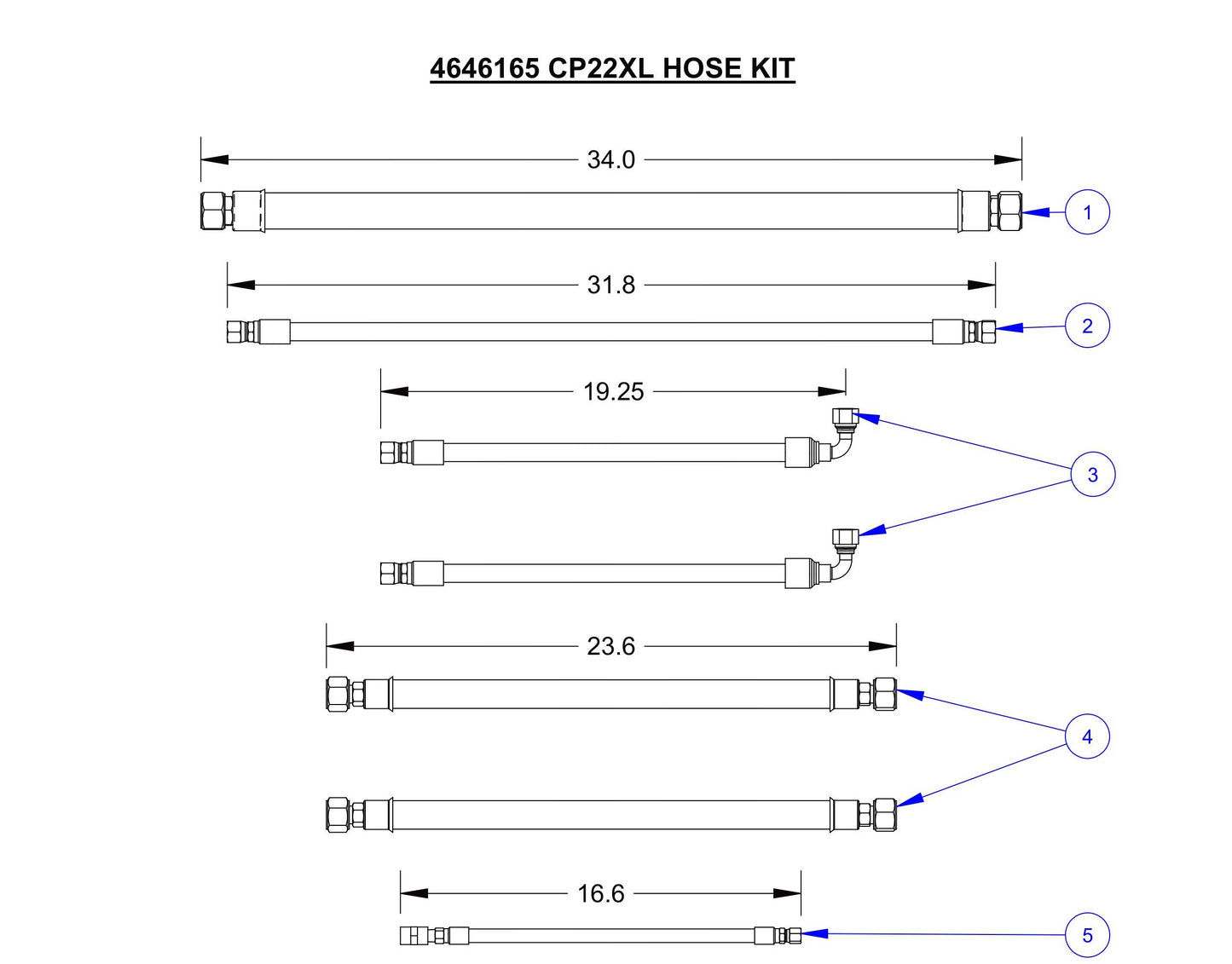

CP22XL Hose Kit Assembly Parts

CP22XL Hose Kit Assembly Parts

  • CP22XL Hose Kit Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6040057 Hose Assy., 1 x 34" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$172.26
1
3202317 Fitting, 1" FJIC to 1" Hose Barb for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
1
3205619 Crimp Shell, #16 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
2
6040063 Hose Assembly, 1/2"X 31.8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$78.39
2
3200290 Fitting, 1/2" F. JIC to 1/2" Hose Crimp for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.28
3
3200290 Fitting, 1/2" F. JIC to 1/2" Hose Crimp for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.28
3
4646056 Hose Assembly, 1/2" X 19-1/4" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$101.15
3
3200408 Elbow, 1/2" F. JIC to 1/2" Parkrimp 90 deg. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$60.26
4
4646086 Hose Assembly, 3/4" x 23.6" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$110.00
4
3201989 Fitting, 3/4" F.JIC to 3/4" Hose Barb for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$23.67
4
3202708 Crimp Shell, #12 for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
Call for Price call for price call for price
5
4646055 Hose Assembly, 1/4" x 16.6" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$81.78
5
3200128 Fitting, 1/4" F. JIC to 1/4" Hose Crimp for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
5
3200145 1/4 MPT - 1/4 Hose Crimp for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$26.90
5
3201110 Coupling, 1/4" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$6.24
1
Call for Price call for price call for price
