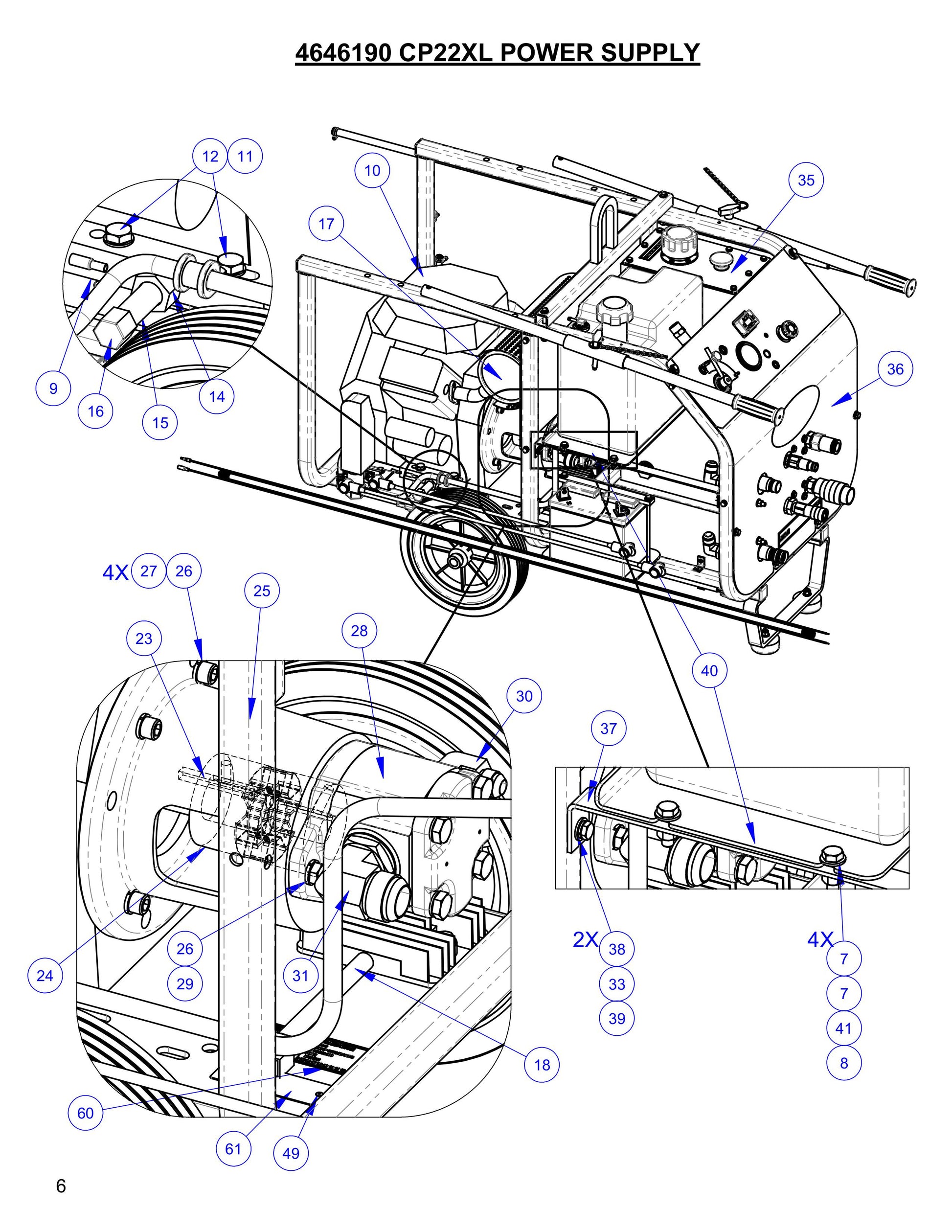

CP22XL Power Supply Assembly Parts

CP22XL Power Supply Assembly Parts

  • CP22XL Power Supply Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
12
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
11
2900014 Flat Washer, 3/8" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
9
4646235 Engine Shim Plate for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$25.53
16
3202315 3/8 NPT Hex Cap for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.00
15
3201969 Nipple, 3/8 MPT x 2-1/2", Sched. 40, Galv. for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$15.20
14
3201968 Adapter, M20x1.5 M. to 3/8" F. Pipe for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$49.58
17
2708046 Honda Muffler, R Side Exhaust for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$511.83
10
4600072 Honda Engine, GX690, Short Shaft for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4,198.59
35
4646173 Hydraulic Tank Assembly for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,479.06
36
4646189 Panel Assembly, CB21 XL for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2,642.31
26
2900006 Lock Washer, 3/8" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
27
2900183 Capscrew, Soc Hd., 3/8"- 16 X 1-3/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$7.90
23
6048134 Key, 1/4" Sq. x 2-1/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
25
4646010 Pump Mount, SAE 2 Bolt for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$184.14
24
2702225 Coupling Assembly, 3/4 - 1-1/8" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$322.74
29
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1.99
60
1801716 Decal, EPA EVAP Standard for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$6.99
61
1800169 Serial Number Plate, US for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$21.24
49
2900053 Rivet, 3/32" Dia. for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
31
3200297 Elbow, 1" O-Ring to 1" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$32.28
18
2701670 Rectifier Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$401.94
28
2600490 Hydraulic Pump, .85 CI for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$1,059.30
30
3200298 Elbow, 3/4" O-Ring to 1/2" M. JIC for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$29.05
37
4646035 Fuel Tank Support for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$47.80
38
2900009 Flat Washer, 1/4" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
33
2900024 Lock Washer, 1/4" Split for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
39
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
7
2900022 Flat Washer, 5/16" SAE for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
41
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut, 5/16-18 Nylon for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
40
Call for Price call for price call for price
