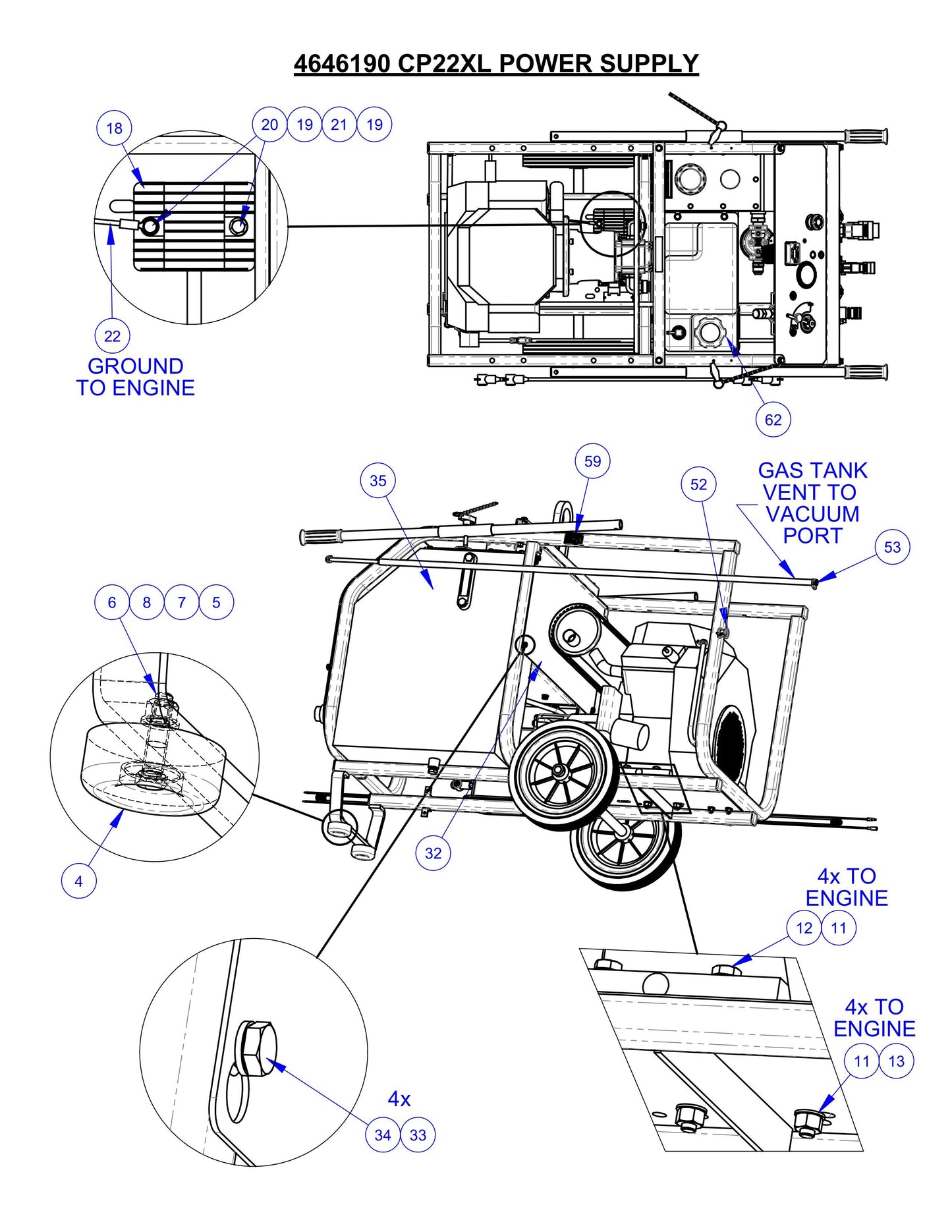

CP22XL Power Supply Assembly Parts-2

CP22XL Power Supply Assembly Parts-2

  • CP22XL Power Supply Assembly Parts-2
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
18
2701670 Rectifier Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$401.94
19
2900009 Flat Washer, 1/4" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
20
2900052 Cap Screw, Hex Hd., 1/4-20 x 1-1/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
21
2900010 Lock Nut, 1/4-20 Nylon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
22
4646018 Wire Assembly, 12 Gage for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
4
2501767 Rubber Bumper for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$9.32
5
2901103 Fender Washer, 5/16" x 1" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
6
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
7
2900022 Flat Washer, 5/16" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
8
2900039 Lock Nut, 5/16-18 Nylon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
11
2900014 Flat Washer, 3/8" SAE for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
12
2900318 Cap Screw, Hex Hd., M10-1.5 x 50mm for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
13
2900304 Lock Nut, M10-1.5 Nylon Insert for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
32
4646011 Heat Shield for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$79.45
33
2900024 Lock Washer, 1/4" Split for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
34
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
35
4646173 Hydraulic Tank Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$1,479.06
52
2501434 Hose Clamp, 5/8" x 3/4"Wide for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$4.99
53
4641105 Vent Hose Assembly for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
Call for Price call for price call for price
59
1800537 Label, HOT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$10.08
62
4600203 Gas Tank Assembly, 4.4 Gallon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$400.95
