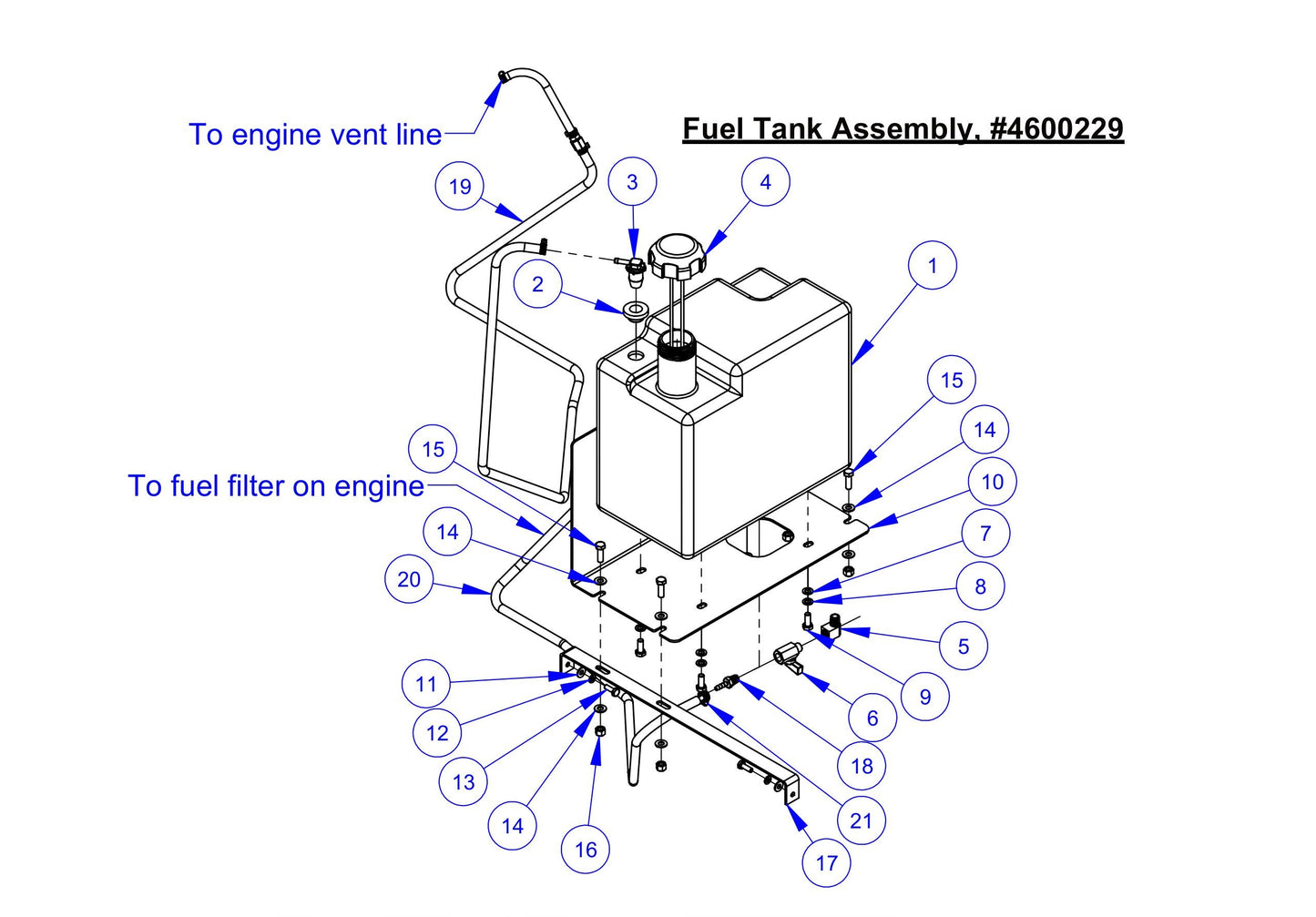

CP38KXL Fuel Tank Assembly Parts

CP38KXL Fuel Tank Assembly Parts

  • CP38KXL Fuel Tank Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
6010869 Fuel Tank, 4.4 Gallon for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$353.43
2
2506716 Grommet for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$6.99
3
2502484 Roll Over Vent, 1/4" Hose Barb for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$39.65
4
2503294 Fuel Tank Cap, W/Gage for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$70.23
5
3200012 Street Elbow, 1/4" NPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$13.14
6
3200108 Ball Valve, 1/4" NPT for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$38.47
7
2901336 Flat Washer, M8 for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
8
2900763 Lock Washer, M8 Split for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
9
2900329 Cap Screw, Hex Hd., M8-1.25 x 20mm for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
11
2900009 Flat Washer, 1/4" SAE for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
12
2900024 Lock Washer, 1/4" Split for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
13
2900144 Cap Screw, Hex Hd., 1/4- 20 x 3/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$2.99
14
2900022 Flat Washer, 5/16" SAE for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
15
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
16
2900039 Lock Nut, 5/16-18 Nylon for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
17
4646035 Fuel Tank Support for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$47.80
18
3200019 Fitting 1/4" M. Pipe to 1/4" Hose Barb for CC5555-3 Concrete Saw Core Cut by Diamond Products
$8.08
20
Hose, 1/4" I.D. x 42" Long 6019095 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
Call for Price call for price call for price
21
3200390 Hose Clamp #6 for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
10
Call for Price call for price call for price
19
Call for Price call for price call for price
