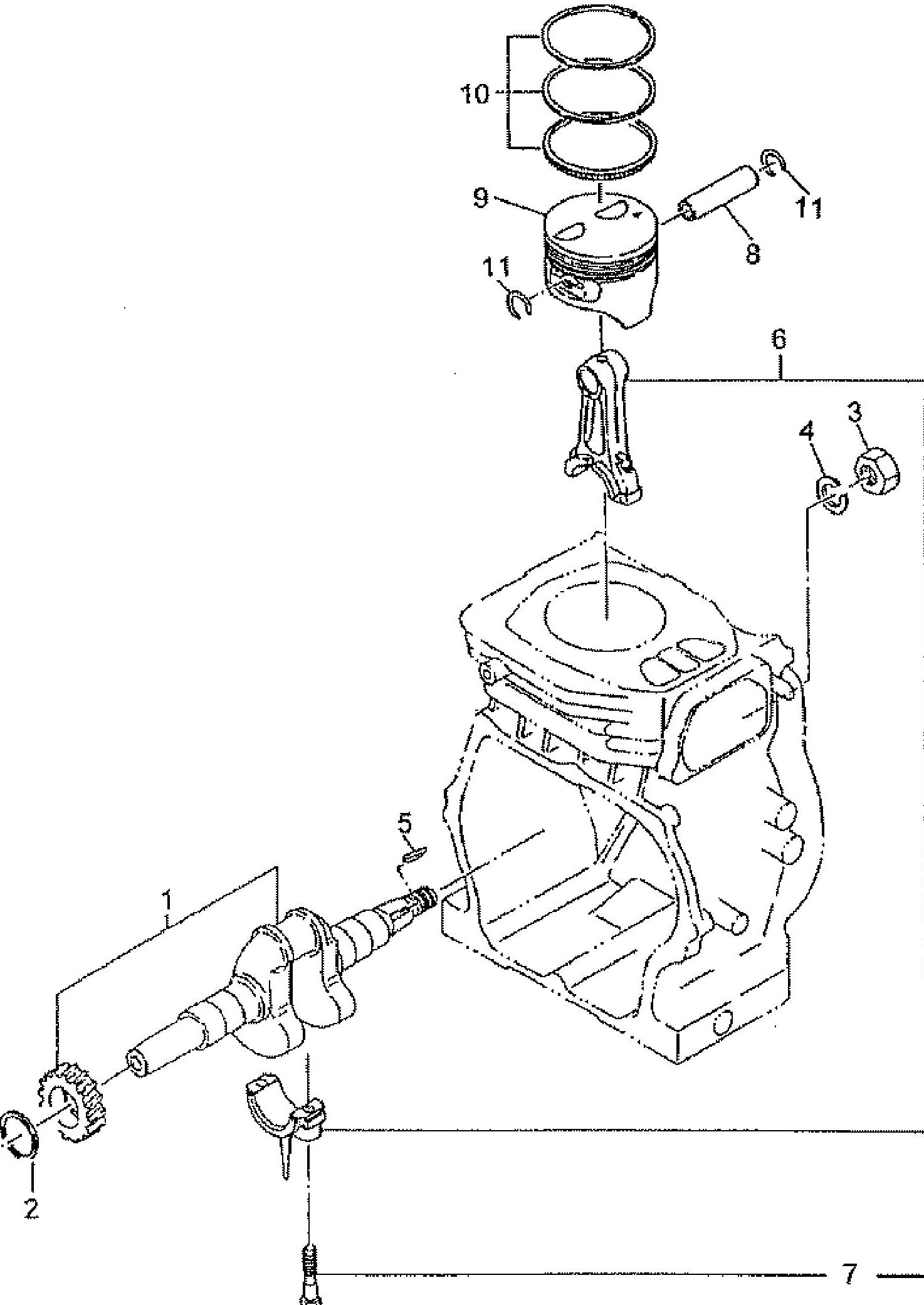

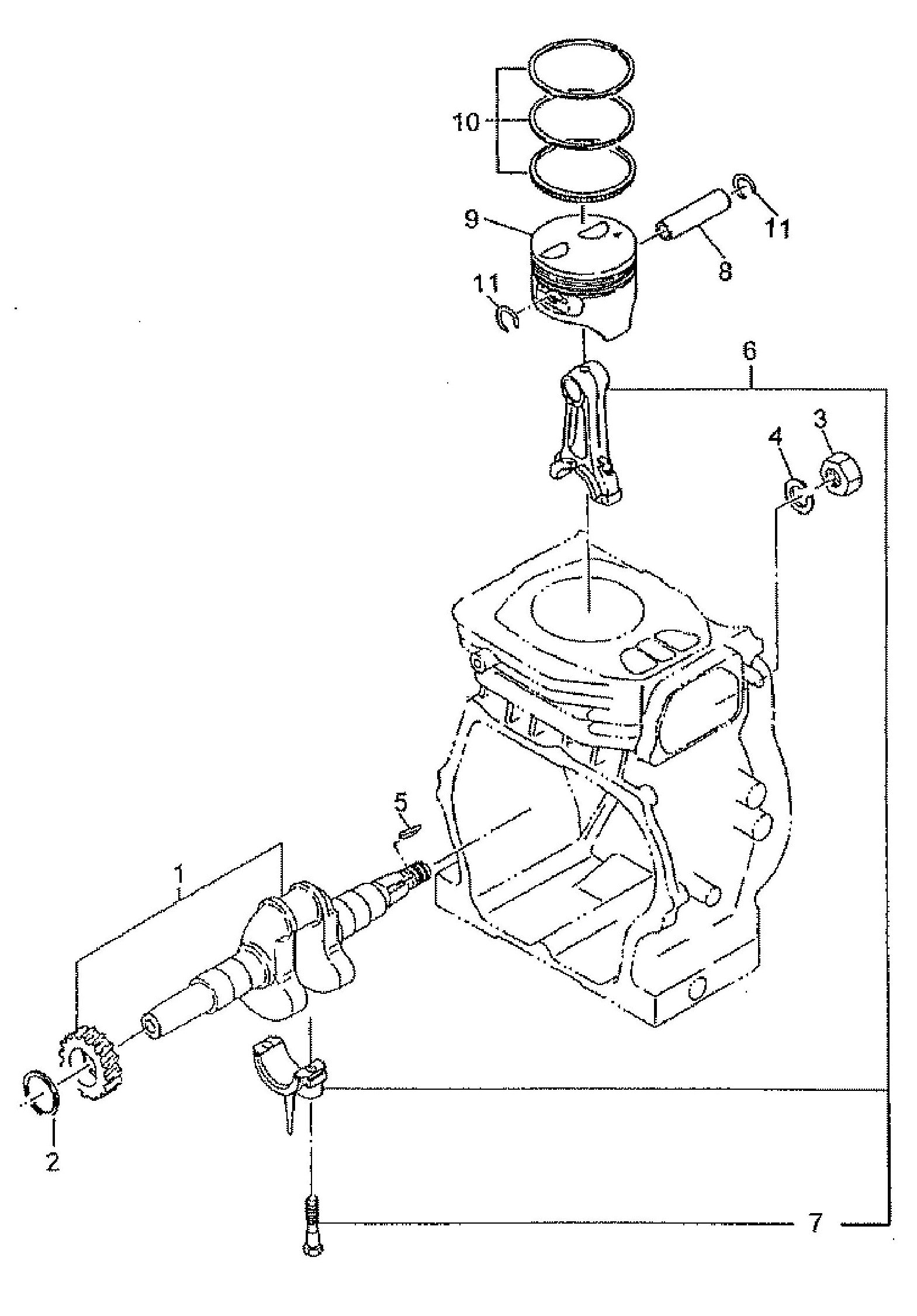

MAC6000 Crankshaft Assembly Parts

MAC6000 Crankshaft Assembly Parts

  • MAC6000 Crankshaft Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2532090101 Crankshaft Cp. *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
2
0230250110 SPACER, (T=0.6), G2800R BY MAKITA
$8.02
2
0230250120 SPACER (T=0.8), G2800R BY MAKITA
$8.02
2
0230250130 SPACER, (T=1.0), G2800R BY MAKITA
$8.02
3
0021814000 NUT, 14MM, G2800R BY MAKITA
$8.02
4
0032014000 SPRING WASHER, 14MM, G2800R BY MAKITA
$5.99
5
0323030010 WOODRUFF KEY, 3X6MM, G2800R BY MAKITA
$8.02
6
2532250120 Connecting Rod, Ew210Tr *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
7
2382300103 Connectng Rod Bolt, G2410R *** Obsolete *** fits Makita MAC6000 Air Compressor
$15.07
8
2382330103 Piston Pin, G2410R *** Obsolete *** fits Makita MAC6000 Air Compressor
$15.07
9
2532340103 Piston (Std.), G2410R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
9
2532340203 Piston(0.25Mm), G2410R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
9
2532340303 Piston (0.50Mm), G2410R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
10
2532350117 Piston Ring Set (Std), G2800R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
10
2532350217 Piston Ring Set (0.25Mm), G2800R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
10
2532350317 Piston Ring Set (0.50Mm), G2800R *** Obsolete *** fits Makita MAC6000 Air Compressor
$2.95
11
0565160010 CLIP, G2800R BY MAKITA
$5.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
