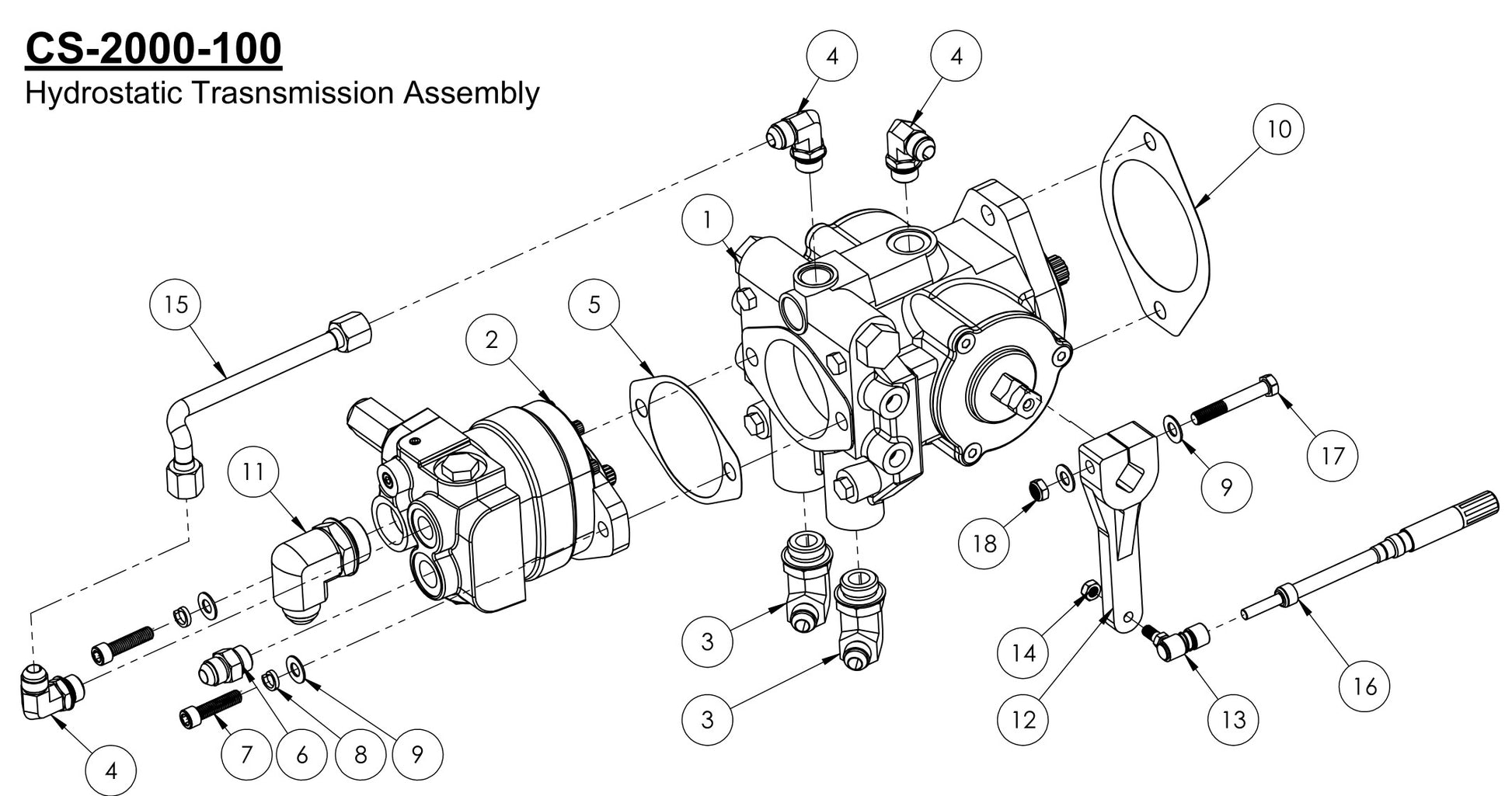

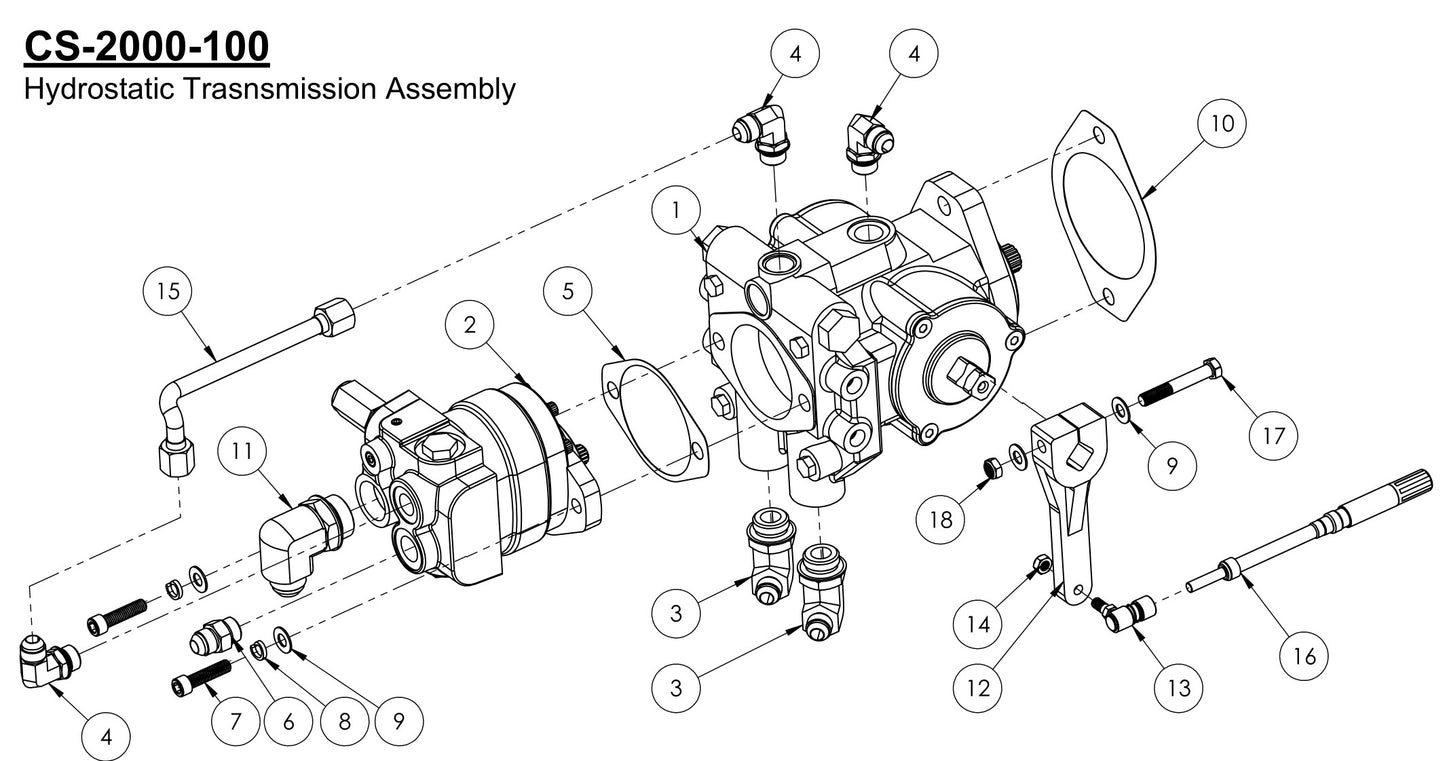

CS-2000-100 Hydrostatic Transmission Assembly

CS-2000-100 Hydrostatic Transmission Assembly

  • CS-2000-100 Hydrostatic Transmission Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2603340 Hydrostatic Transmission Pump for CS-2000-100 CURB SAW Core Cut by Diamond Products
$7,818.03
2
3203286 Charge Pump, 26210-RAP for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2,065.14
3
3200805 Elbow Fitting, 3/4"MORB x 1/2" MJIC for CS-2000-100 CURB SAW Core Cut by Diamond Products
$21.52
4
2502924 Elbow Fitting, 1/2" MORB x 1/2" MJIC 90 Deg. for CS-2000-100 CURB SAW Core Cut by Diamond Products
$14.93
5
3200816 Gasket, SAE A Pad for CS-2000-100 CURB SAW Core Cut by Diamond Products
$19.51
6
3200804 Adaptor Fitting, 1/2"MJIC - 5/8"MORB for CS-2000-100 CURB SAW Core Cut by Diamond Products
$7.51
7
2900357 3/8-16 x 1.50" SHCS for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
8
2903041 3/8 Machine Screw Split Lock Washer for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2.99
9
2900014 3/8" SAE Flat Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
3200815 SAE B 2 Bolt Gasket for CS-2000-100 CURB SAW Core Cut by Diamond Products
$43.84
11
3201009 16 O-RING X 12 MJIC 90° for CS-2000-100 CURB SAW Core Cut by Diamond Products
$31.21
12
6070661 Lever, Control Shaft for CS-2000-100 CURB SAW Core Cut by Diamond Products
$329.67
13
2502026 5/16"-24 BALL JOINT for CS-2000-100 CURB SAW Core Cut by Diamond Products
$71.02
14
2902049 5/16-24 NYLON INSERT HEX NUT for CS-2000-100 CURB SAW Core Cut by Diamond Products
$2.99
15
6070791 Hydraulic Line, Charge Pump for CS-2000-100 CURB SAW Core Cut by Diamond Products
$85.80
16
2505913 Transmission Cable - 185" for CS-2000-100 CURB SAW Core Cut by Diamond Products
$507.87
17
2900596 3/8-16 x 2.50" Hex Head Cap Screw for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$3.99
18
2901988 3/8-16 Nylon Insert Thin Nut for CS-2000-100 CURB SAW Core Cut by Diamond Products
$3.99
View full details
