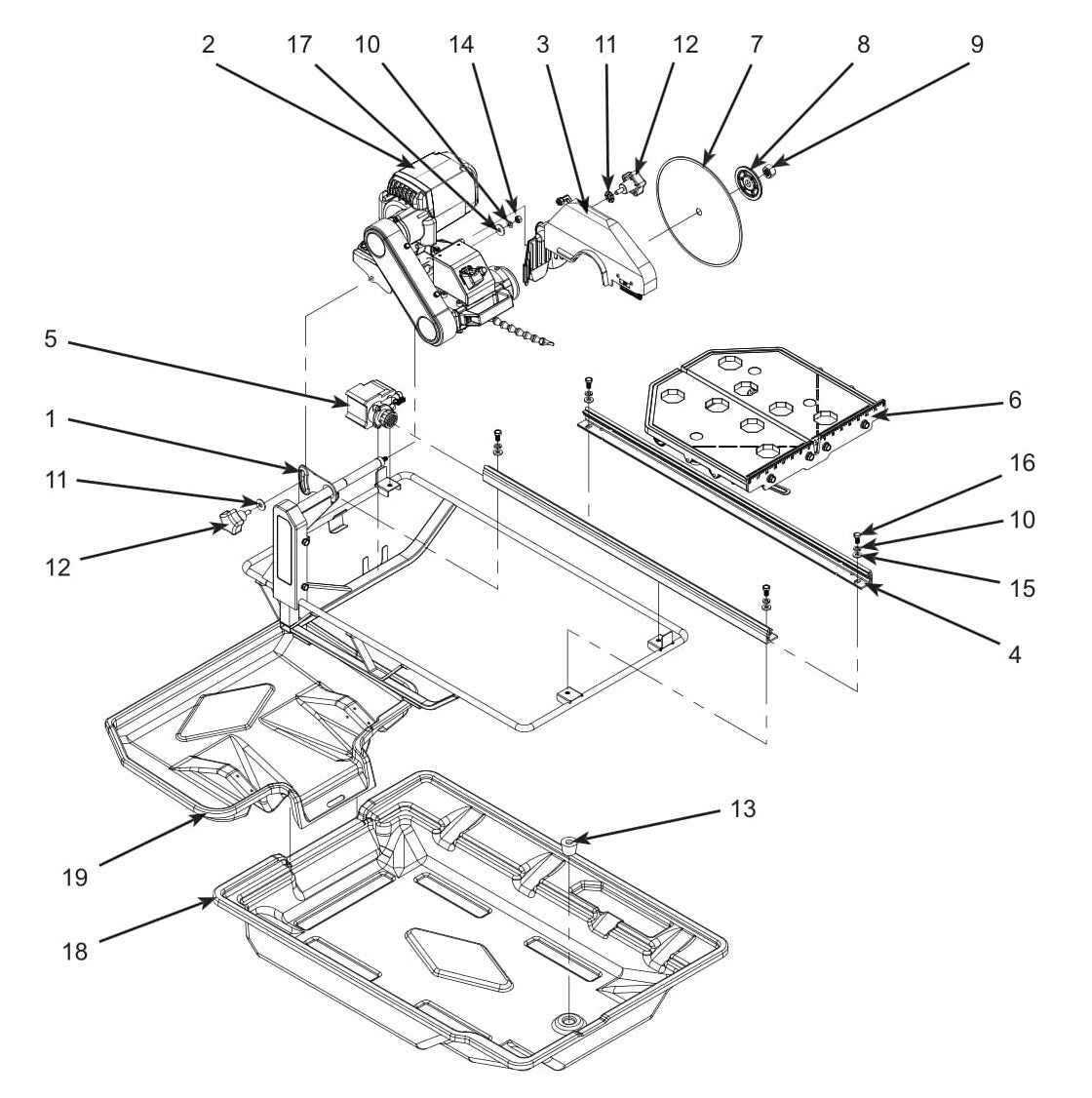

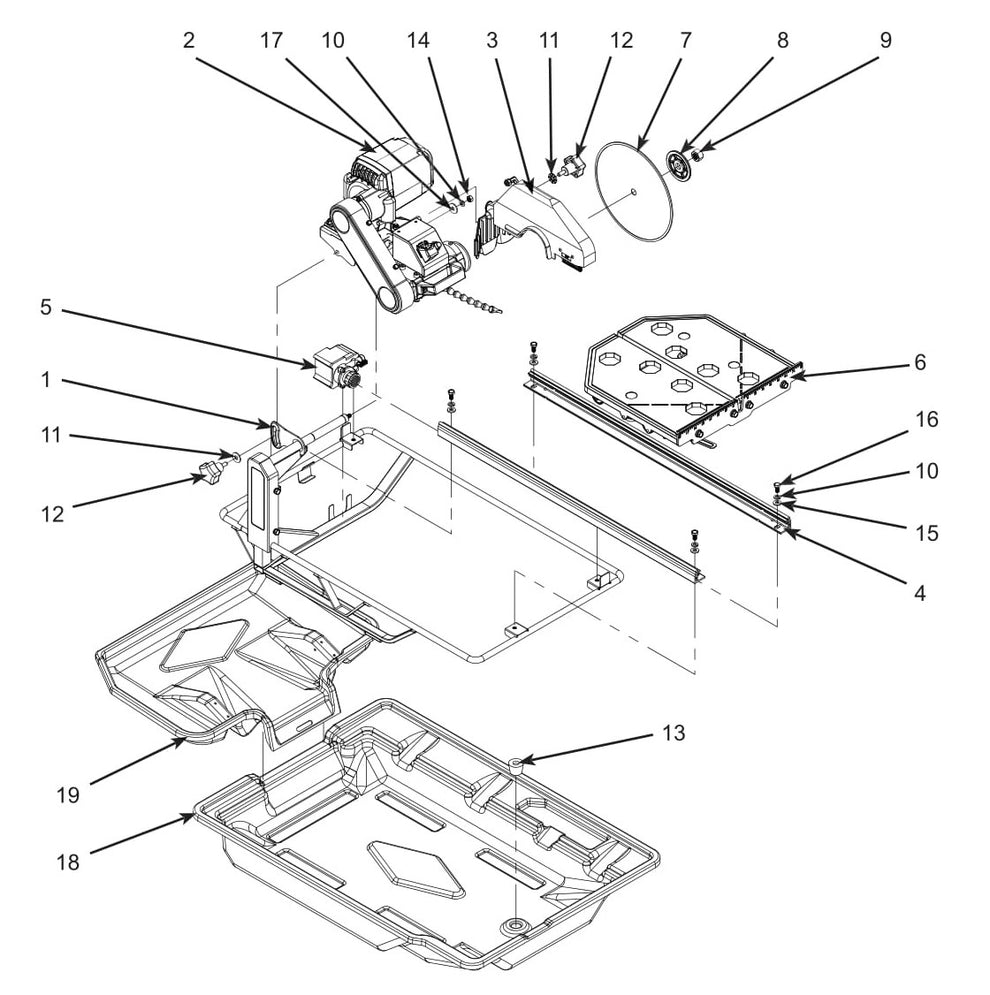

CTC1020XL Main Assembly Parts By Norton Clippers

CTC1020XL Main Assembly Parts By Norton Clippers

  • CTC1020XL Main Assembly Parts By Norton Clippers
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
70184645723  Frame Weldment for CTC1020XL Tile Saw by Norton Clipper
$264.39
5
70184680886 Pump Water for CTC1020XL Tile Saw by Norton Clipper
$141.21
8
70184646158 Collar Loose (Outer Flange) for CTC1020XL Tile Saw by Norton Clipper
$40.70
9
70184650351  Nut 5/8-11 Hex for CTC1020XL Tile Saw by Norton Clipper
Call for Price call for price call for price
10
70184675659 Washer Lock M8 Din127B for CTC1020XL Tile Saw by Norton Clipper
$11.77
11
70184681609  Washer Lock for CTC1020XL Tile Saw by Norton Clipper
$11.77
13
70184680911 Plug Drain With Chain for CTC1020XL Tile Saw by Norton Clipper
$52.78
15
70184600562 Washer M8 Din125 Flat for CTC1020XL Tile Saw by Norton Clipper
$11.77
16
70184600735 Screw for CTC1020XL Tile Saw by Norton Clipper
$17.64
17
70184644257  Pan Water (Tray) for CTC1020XL Tile Saw by Norton Clipper
$264.39
19
70184641492 Drip Tray Rear for CTC1020XL Tile Saw by Norton Clipper
$175.71
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
