CTM-3005-H6G0M Pump Assembly 2 Parts by MiTM

CTM-3005-H6G0M Pump Assembly 2 Parts by MiTM

  • CTM-3005-H6G0M Pump Assembly 2 Parts by MiTM
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
46-0889 Cap Valve for AC1-PE02-20M Air Compressor by Mi-T-M 460889
$51.14
2
22-0056 Valve Assembly (4 - 8) for MiTM Pressure Washers 220056
$262.88
3
27-8185 Bolt for MiTM Pressure Washers by MiTM 278185
$17.55
4
28-1038 Washer for MiTM Pressure Washers by MiTM 281038
$15.93
5
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
6
28-1002 Washer for MiTM Pressure Washers by MiTM 281002
$14.01
7
70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030
$101.63
8
26-0098 V-Packing 20 X 35 X 7.5/4.5 for AC1-PH65-08M Air Compressor by Mi-T-M 260098
$21.36
9
25-0207 Ring for AC1-PH65-08M Air Compressor by Mi-T-M 250207
$31.68
10
46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659
$21.32
11
26-0197 Low Pressure Seal (See Kit 70-0147 Or 852-0122) for MiTM Pressure Washers 260197
$103.16
12
46-0057 Adapter Female for AC1-HE15-05M Air Compressor by Mi-T-M 460057
$27.47
13
25-0015 O-Ring (See Kit 70-0434) for MiTM Pressure Washers 250015
$4.55
14
26-0047 Seal Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260047
$11.20
15
9-0029 Bushing for AC1-HE15-05M Air Compressor by Mi-T-M 90029
$40.69
16
46-0050 Crankshaft for MiTM Pressure Washers by MiTM 460050
$927.36
17
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
18
48-0012 Bearing Tapered Roller for AC1-HE15-05M Air Compressor by Mi-T-M 480012
$74.16
19
25-0013 O-Ring 2-11/16 X 2-7/8 for AC1-HE15-05M Air Compressor by Mi-T-M 250013
$3.99
20
26-0049 Seal/Oil for AC1-HE15-05M Air Compressor by Mi-T-M 260049
$30.95
21
46-0113 Shim for AC1-HE15-05M Air Compressor by Mi-T-M 460113
$15.72
22
46-0296 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460296
$92.07
23
27-8431 Bolt for MiTM Air Compressors by MiTM 278431
$8.93
24
46-0103 Retaining Ring for AC1-HE15-05M Air Compressor by Mi-T-M 460103
$5.99
25
43-0032 Pin/Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 430032
$27.27
26
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
27
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
28
27-8812 Screw for MiTM Pressure Washers by MiTM 278812
$7.49
29
46-1906 Crankcase Cover for MiTM Pressure Washers 461906
Call for Price call for price call for price
30
46-0295 Crankcase Cover for AC1-HE15-05M Air Compressor by Mi-T-M 460295
$130.91
31
25-0339 O-Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250339
$12.01
32
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
33
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
34
46-0051 Connecting Rod for AC1-HE15-05M Air Compressor by Mi-T-M 460051
$137.16
35
46-0056 Piston Guide for AC1-HE15-05M Air Compressor by Mi-T-M 460056
$123.88
36
46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146
$5.99
37
46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052
$75.11
38
25-0465 Teflon Back-Up Ring for AC1-HE15-05M Air Compressor by Mi-T-M 250465
$5.99
39
28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
40
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
41
46-1905 Crankcase for MiTM Pressure Washers 461905
Call for Price call for price call for price
42
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
43
46-0336 Crankcase Cover Closed for AC1-HE15-05M Air Compressor by Mi-T-M 460336
$89.33
44
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
45
70-0147 Kit Packing 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700147
$152.37
46
70-0148 Kit-Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700148
$161.38
47
852-0122 Kit Packing Assy 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 8520122
$192.65
View full details

Frequently asked questions

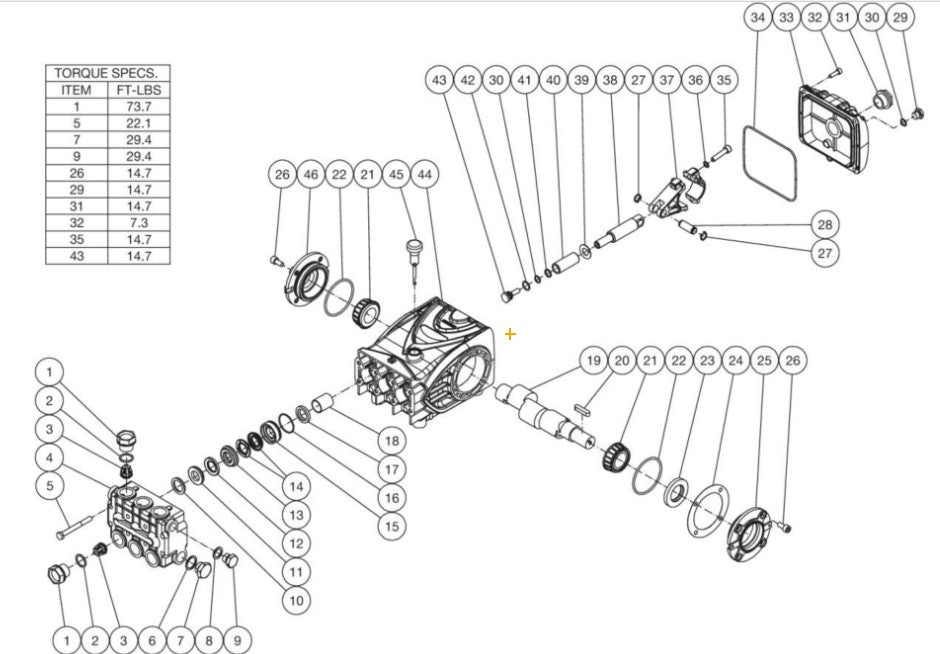

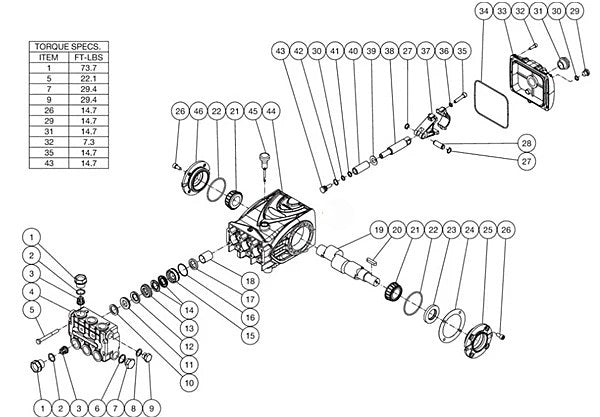

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
