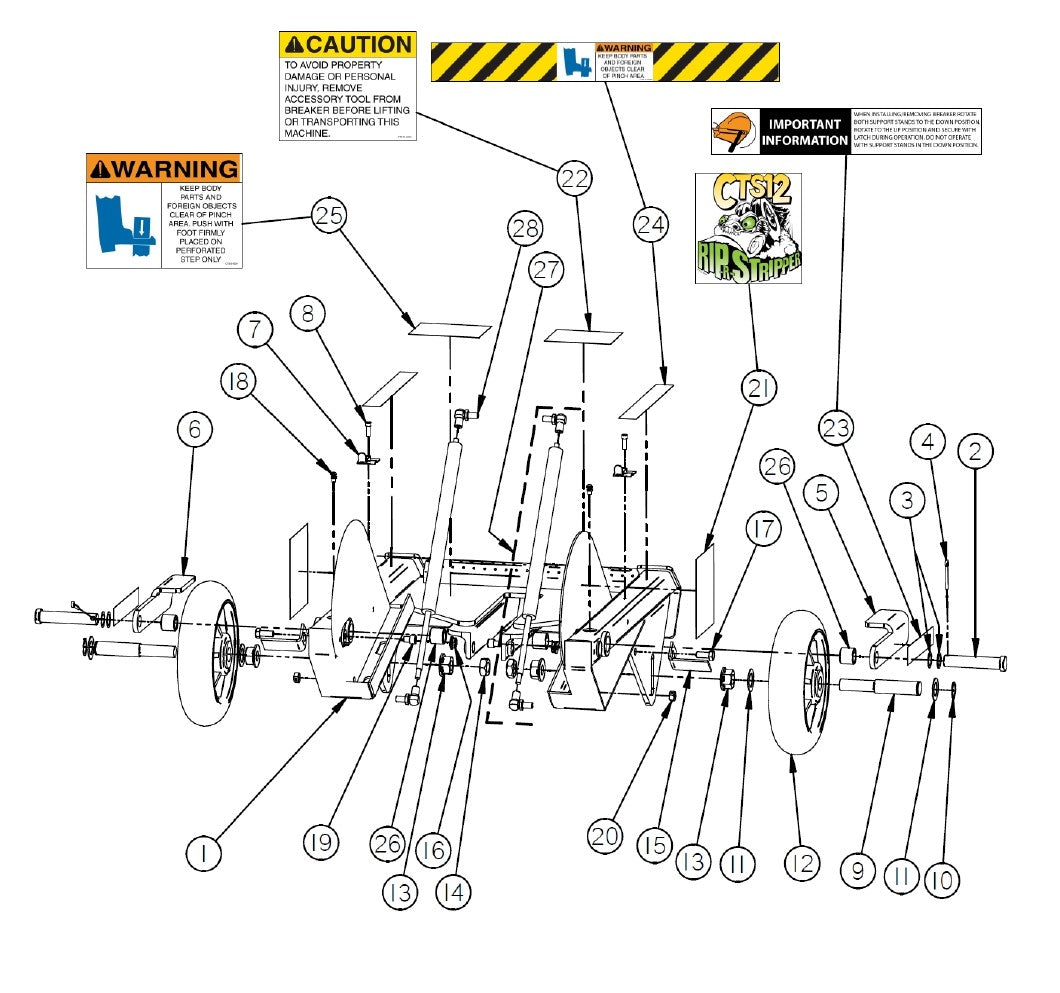

CTS Replacement Parts Diagram Lower Frame Assembly [Starting with Serial Number 153106] Parts by General Equipment

CTS Replacement Parts Diagram Lower Frame Assembly [Starting with Serial Number 153106] Parts by General Equipment

  • CTS Replacement Parts Diagram Lower Frame Assembly [Starting with Serial Number 153106] Parts by General Equipment
1 1
Ref. Details
1
CTS12-0101 Weldment, Frame by General Equipment Co. CTS120101
$544.50
2
CTS12-0200 Pin, Clevis by General Equipment Co. CTS120200
$10.29
3
CTS12-0450 Washer, Wave, 5/8 by General Equipment Co. CTS120450
$3.99
4
22000800 Pin, Cotter, 5/32 X 1, Z by General Equipment Co. 22000800
$3.99
5
CTS12-0430 Stand, Kick, Left Hand by General Equipment Co. CTS120430
$42.52
6
CTS12-0440 Stand, Kick, Right Hand by General Equipment Co. CTS120440
$42.52
7
CTS12-0460 Latch, Down, Snap by General Equipment Co. CTS120460
$7.78
8
60030500 Shcs, #10-24 X 5/8, Zy by General Equipment Co. 60030500
$3.99
9
CTS12-0580 Wheel Axle by General Equipment Co. CTS120580
$48.62
10
5160-075 Ring, Snap, External by General Equipment Co. 5160075
$3.99
11
85120001 Bushing, Machine, .75Nr, 18Ga by General Equipment Co. 85120001
$3.99
12
CTS12-0600 Wheel, 8D by General Equipment Co. CTS120600
$59.99
13
86100000 Nut, Hex, Flange, 5/8-11, Zy by General Equipment Co. 86100000
$3.99
14
40100011 Nut, Jam, Hex, 5/8-18, Lh, Zy by General Equipment Co. 40100011
$5.99
15
FCS16-0090 Scraper, Wheel by General Equipment Co. FCS160090
$10.63
16
39050000 Nut, Whizlock, 5/16-18, Zy by General Equipment Co. 39050000
$3.99
17
15050600 Hhcs, 5/16-18 X 3/4, Zy by General Equipment Co. 15050600
$5.99
18
550-0590 Grease Fitting by General Equipment Co. 5500590
$5.99
19
60050300 Shcs, 5/16-18 X 3/8, Zy by General Equipment Co. 60050300
$5.99
20
52050000 Nut, Lock, 2-Way, 5/16-18, Zy by General Equipment Co. 52050000
$3.99
21
CTS12-5050 Decal, Rip-R-Stripper (Cts12) by General Equipment Co. CTS125050
$7.92
22
CTS12-5010 Decal, Transport by General Equipment Co. CTS125010
$7.92
23
CTS12-5060 Decal, Kickstand by General Equipment Co. CTS125060
$7.92
24
CTS12-5040 Decal, Feet Clear by General Equipment Co. CTS125040
$7.92
25
CTS12-5030 Decal, Push by General Equipment Co. CTS125030
$7.92
26
CTS12-0350 Bushing, Spring-Type by General Equipment Co. CTS120350
$12.50
27
CTS12-0220A Gas Spring Assembly by General Equipment Co. CTS120220A
$50.35
28
CTS12-0220-010 Kit, Mounting, Spring, Gas, Kit, Mounting, Gas Spring by General Equipment Co. CTS120220010
$14.69
