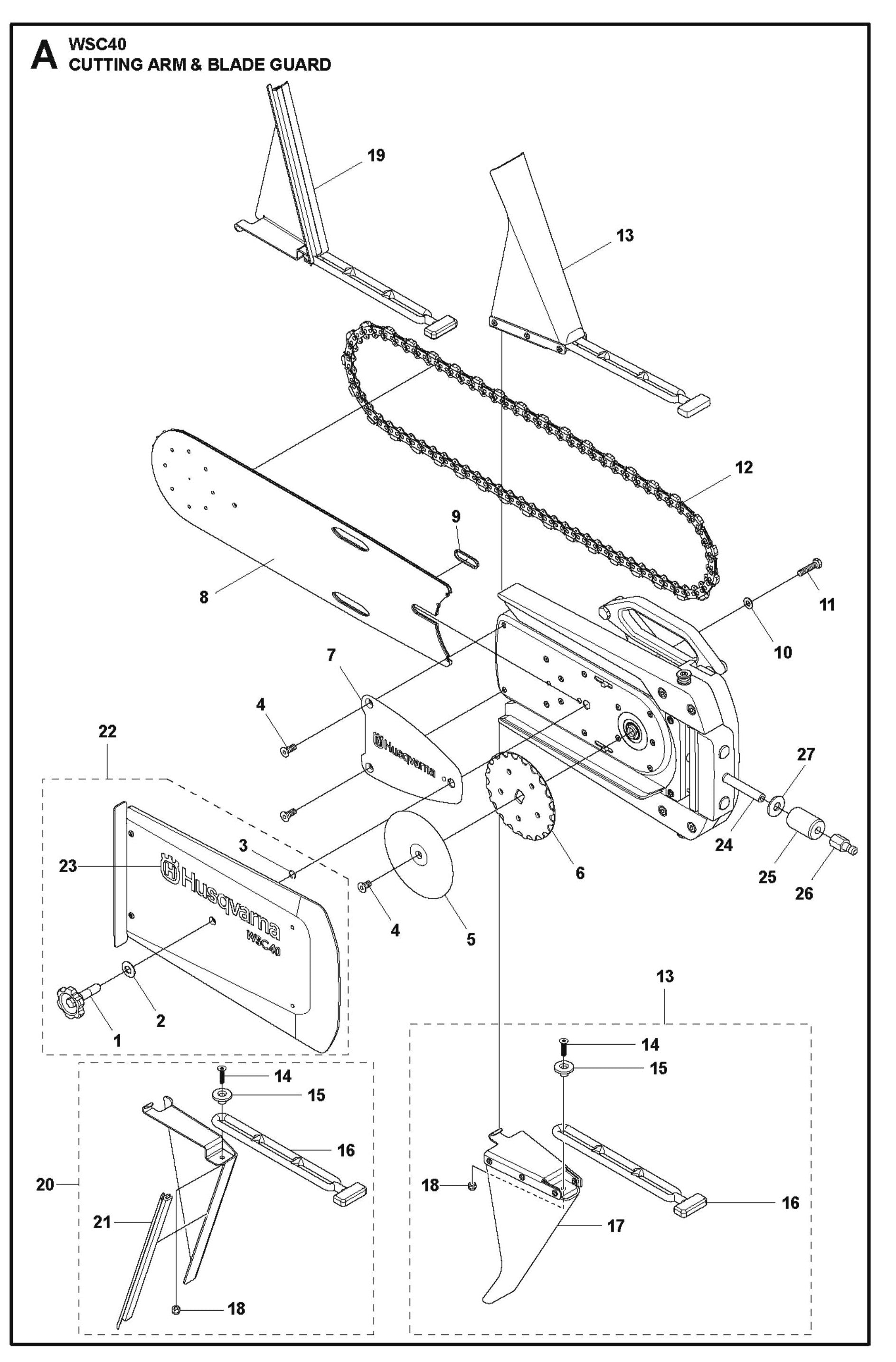

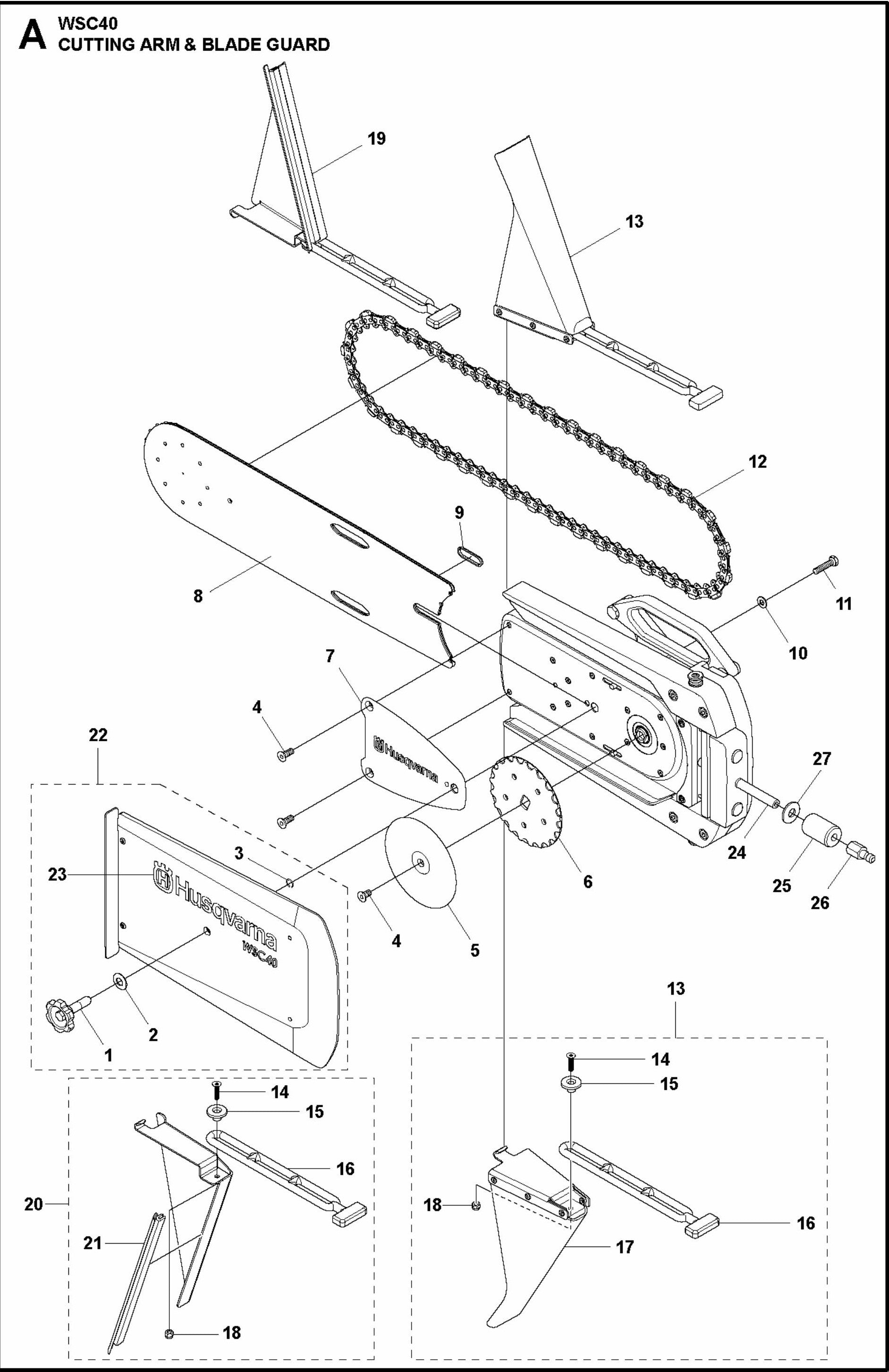

WSC 40 Cutting Arm And Blade Guard Assembly Parts

WSC 40 Cutting Arm And Blade Guard Assembly Parts

  • WSC 40 Cutting Arm And Blade Guard Assembly Parts
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
586501601 LOCKING SCREW FOR WALL SAWS BY HUSQVARNA
$102.60
2
582294301 COMPRESSION SPRING FOR WALL SAWS BY HUSQVARNA
$5.37
3
580746201 SNAP RING FOR WALL SAWS BY HUSQVARNA
$3.85
4
725644951 Screw Ihcsfm for BMP 335 Scarifier by Husqvarna
$44.46
5
584476101 CLAMP, DRIVE SPROCKET FOR WALL SAWS BY HUSQVARNA
$484.50
6
584276301 DRIVE SPROCKET FOR WALL SAWS BY HUSQVARNA
$405.65
7
584275301 CLAMP FOR WALL SAWS BY HUSQVARNA
$578.55
8
589000001 GUIDE BAR, WSC40 FOR WALL SAWS BY HUSQVARNA
$1,800.25
9
582039401 GASKET, GUIDEBAR WSC40 FOR WALL SAWS BY HUSQVARNA
$13.49
10
734116301 Washer for Power Trowel by Husqvarna
$4.99
11
531119220 SCREW M6S 8X35 FOR WALL SAWS BY HUSQVARNA
$6.74
12
588150403 Pro45 Chain 37 Seg .444 for WSC 40 Wall Saws by Husqvarna
$2,391.60
13
582294901 CHAIN CATCHER FOR WALL SAWS BY HUSQVARNA
$220.40
14
725637251 Screw Ihcsfm for PG450 Floor Grinder and Polisher by Husqvarna
$7.02
15
581849401 GUIDE BUSHING FOR WALL SAWS BY HUSQVARNA
$28.41
16
576647301 STRAP FOR WALL SAWS BY HUSQVARNA
$11.61
17
582233301 CHAIN CATCHER FOR WALL SAWS BY HUSQVARNA
$56.62
18
732251601 Hexagon Locking Nut for PG 680 RC Floor Grinder by Husqvarna
$2.99
19
582341701 GUARD, FLUSH CUT, LEFT WSC40 FOR WALL SAWS BY HUSQVARNA
$295.45
20
582341601 GUARD, FLUSH CUT, RIGHT WSC40 FOR WALL SAWS BY HUSQVARNA
$305.90
21
592769601 PROFILE, RUBBER SEALING 285 MM FOR WALL SAWS BY HUSQVARNA
$41.58
22
582904601 TRANSMISSION COVER, WSC40 FOR WALL SAWS BY HUSQVARNA
$1,061.15
23
504029914 LABEL, HUSQVARNA WSC 40 FOR WALL SAWS BY HUSQVARNA
$44.52
24
584275701 INLET WATER PIPE FOR WALL SAWS BY HUSQVARNA
$301.15
25
584275801 HANDLE, CHAIN TENSIONER FOR WALL SAWS BY HUSQVARNA
$176.70
26
531118218 QD COUPLING: 13410-M 1/4"BSP FOR WALL SAWS BY HUSQVARNA
$23.17
27
531119446 BEARING WASHER AS 1528 FOR WALL SAWS BY HUSQVARNA
$4.89
