CV-1800-0MBH (sn:10241139-99999999), CV-2100-0MBC (sn:10217674-99999999), CV-2400-1MHC/1MIC (sn:10166699-99999999), CV-2300-0MBC Pump assembly Parts by MiTM

CV-1800-0MBH (sn:10241139-99999999), CV-2100-0MBC (sn:10217674-99999999), CV-2400-1MHC/1MIC (sn:10166699-99999999), CV-2300-0MBC Pump assembly Parts by MiTM

  • CV-1800-0MBH (sn:10241139-99999999), CV-2100-0MBC (sn:10217674-99999999), CV-2400-1MHC/1MIC (sn:10166699-99999999), CV-2300-0MBC Pump assembly Parts by MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
2
25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325 25-0325 O-Ring 1,78 X 14Mm for AC1-HE02-05M by Mi-T-M 250325
$3.99
3
39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203 39-0203 Outlet Plug for MiTM Air Compressors by MiTM 390203
$11.42
5
46-1177 Packing Retainer BY MITM 46-1177 Packing Retainer BY MITM
$3.38
9
39-0218 Valve Cap BY MITM 39-0218 Valve Cap BY MITM
$10.13
10
8-0568 Easy Start Seat BY MITM 8-0568 Easy Start Seat BY MITM
$4.26
11
49-0158 Spring BY MITM 49-0158 Spring BY MITM
$1.89
12
8-0567 Easy Start Ball BY MITM 8-0567 Easy Start Ball BY MITM
$1.49
13
27-9589 Set Screw BY MITM 27-9589 Set Screw BY MITM
$3.38
14
25-0500 O-Ring 8.4 X 1Mm for MiTM Pressure Washers 250500 25-0500 O-Ring 8.4 X 1Mm for MiTM Pressure Washers 250500
$5.93
15
8-0570 Unloader Seat BY MITM 8-0570 Unloader Seat BY MITM
$8.10
16
8-0569 Unloader Poppet BY MITM 8-0569 Unloader Poppet BY MITM
$21.60
17
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PH08-08M Air Compressor by Mi-T-M 250387 25-0387 O-Ring 10.82 X 1.78Mm for AC2-PH08-08M Air Compressor by Mi-T-M 250387
$4.28
18
8-0566 Piston Guide BY MITM 8-0566 Piston Guide BY MITM
$30.18
19
25-0589 BACK-UP RING (SEE KIT 70-0461) BY MITM 25-0589 BACK-UP RING (SEE KIT 70-0461) BY MITM
$2.03
21
25-0526 O-Ring 6.02 X 2.62Mm for AC2-SR09-20M Air Compressor by Mi-T-M 250526 25-0526 O-Ring 6.02 X 2.62Mm for AC2-SR09-20M Air Compressor by Mi-T-M 250526
$14.85
22
8-0565 PISTON (SEE KIT 70-0461) BY MITM 8-0565 PISTON (SEE KIT 70-0461) BY MITM
$25.65
23
30-6024 Nut for MiTM Air Compressors by MiTM 306024 30-6024 Nut for MiTM Air Compressors by MiTM 306024
$4.43
24
27-9587 Set Screw BY MITM 27-9587 Set Screw BY MITM
$2.24
25
8-0564 Adjustment Barrel BY MITM 8-0564 Adjustment Barrel BY MITM
$32.40
26
8-0501 Spring Button Brass for AM2-S305-80M Air Compressor by Mi-T-M 80501 8-0501 Spring Button Brass for AM2-S305-80M Air Compressor by Mi-T-M 80501
$7.28
27
49-0157 SPRING (SEE KIT 70-0461) BY MITM 49-0157 SPRING (SEE KIT 70-0461) BY MITM
$8.10
28
27-9588 Set Screw BY MITM 27-9588 Set Screw BY MITM
$1.70
29
46-0869 Hose Barb-1/8"-27 Bsppx8Mm Hb for AO1-HE15-04M Air Compressor by Mi-T-M 460869 46-0869 Hose Barb-1/8"-27 Bsppx8Mm Hb for AO1-HE15-04M Air Compressor by Mi-T-M 460869
$21.41
30
25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371 25-0371 O-Ring 4.48 X 1.78Mm for AC1-HE02-05M by Mi-T-M 250371
$3.99
31
8-0521 Ball for AM2-S375-80M Air Compressor by Mi-T-M 80521 8-0521 Ball for AM2-S375-80M Air Compressor by Mi-T-M 80521
$7.28
32
8-0520 Spring for AM2-S375-80M Air Compressor by Mi-T-M 80520 8-0520 Spring for AM2-S375-80M Air Compressor by Mi-T-M 80520
$5.99
33
25-0406 O-Ring 4 X 2.5Mm for AM2-S305-80M Air Compressor by Mi-T-M 250406 25-0406 O-Ring 4 X 2.5Mm for AM2-S305-80M Air Compressor by Mi-T-M 250406
$4.28
34
46-1180 Non-Return Valve BY MITM 46-1180 Non-Return Valve BY MITM
$8.10
35
49-0159 Spring BY MITM 49-0159 Spring BY MITM
$3.78
36
25-0403 O-Ring for MiTM Air Compressors by MiTM 250403 25-0403 O-Ring for MiTM Air Compressors by MiTM 250403
$7.43
37
46-1181 Detergent Injector BY MITM 46-1181 Detergent Injector BY MITM
Call for Price call for price call for price
38
46-1182 Outlet Extension BY MITM 46-1182 Outlet Extension BY MITM
$20.87
39
27-9590 Bolt BY MITM 27-9590 Bolt BY MITM
$2.03
40
19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001 19-0001 Filter-Inlet Washer W/Screen for AC1-HE02-05M by Mi-T-M 190001
$1.99
41
46-1179 Inlet Extension BY MITM 46-1179 Inlet Extension BY MITM
$20.73
42
46-1178 Garden Hose Fitting BY MITM 46-1178 Garden Hose Fitting BY MITM
Call for Price call for price call for price
43
49-0160 Spring BY MITM 49-0160 Spring BY MITM
$1.97
45
46-1183 Spring Retainer BY MITM 46-1183 Spring Retainer BY MITM
$1.16
46
46-0876 Washer BY MITM 46-0876 Washer BY MITM
$34.02
47
48-0057 Bearing BY MITM 48-0057 Bearing BY MITM
$17.63
48
48-0056 Thrust Washer BY MITM 48-0056 Thrust Washer BY MITM
$7.43
49
46-1184 Wobble Plate Shaft BY MITM 46-1184 Wobble Plate Shaft BY MITM
$56.16
50
48-0014 Ball Bearing for ABS Air Compressor by Mi-T-M 480014 48-0014 Ball Bearing for ABS Air Compressor by Mi-T-M 480014
Call for Price call for price call for price
51
46-1185 Snap Ring for MiTM Pressure Washers 461185 46-1185 Snap Ring for MiTM Pressure Washers 461185
$70.89
52
26-0290 Oil Seal BY MITM 26-0290 Oil Seal BY MITM
$14.52
-
70-0293 Kit Injector Repair for AM2-VE75-80M Air Compressor by Mi-T-M 700293 70-0293 Kit Injector Repair for AM2-VE75-80M Air Compressor by Mi-T-M 700293
$9.15
-
70-0409 Valve Kit (Inc. 6 each 7) BY MITM 70-0409 Valve Kit (Inc. 6 each 7) BY MITM
$23.30
-
70-0410 Piston Kit (Inc. 3 each 44) BY MITM 70-0410 Piston Kit (Inc. 3 each 44) BY MITM
$48.74
-
70-0411 Piston Oil Seals Kit (Inc. 3 each 4) BY MITM 70-0411 Piston Oil Seals Kit (Inc. 3 each 4) BY MITM
$39.70
-
70-0412 High Pressure Seals Kit (Inc. 3 each 6) BY MITM 70-0412 High Pressure Seals Kit (Inc. 3 each 6) BY MITM
$51.30
-
70-0413 O-ring Kit (Inc. 2, 14, 17, 20, 21, 30, 33, 36) BY MITM 70-0413 O-ring Kit (Inc. 2, 14, 17, 20, 21, 30, 33, 36) BY MITM
$15.53
-
70-0446 Unloader Complete Kit (Inc. 2, 14-27) BY MITM 70-0446 Unloader Complete Kit (Inc. 2, 14-27) BY MITM
$91.80
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

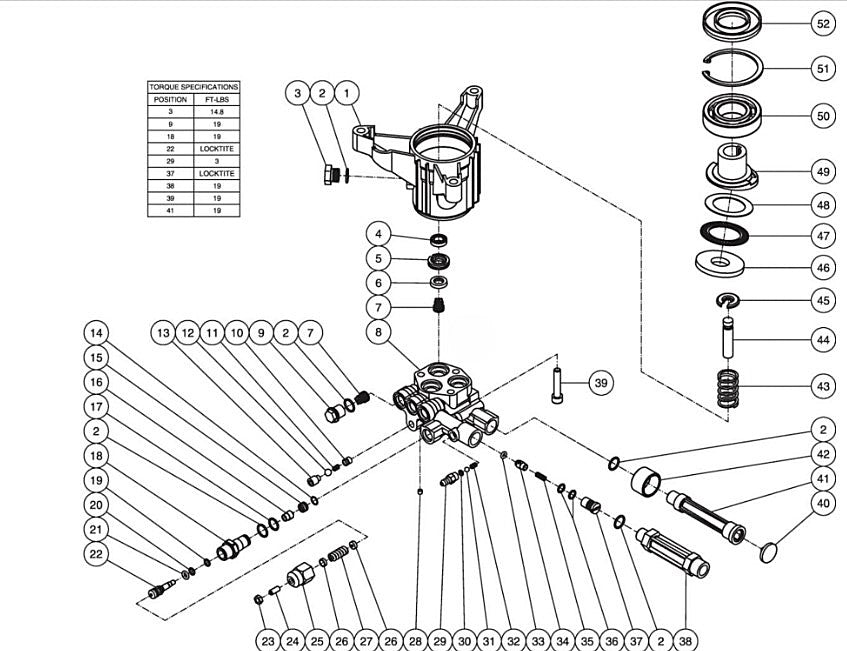

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
