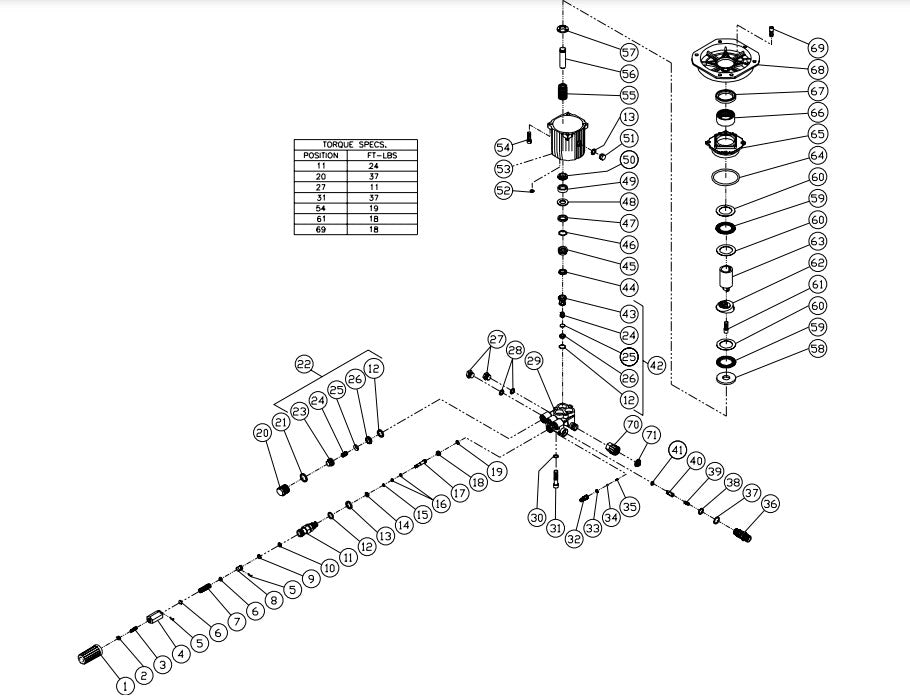

CV-2400-0MIC, CV-2400-1MIC Pump assembly Parts by MiTM

CV-2400-0MIC, CV-2400-1MIC Pump assembly Parts by MiTM

  • CV-2400-0MIC, CV-2400-1MIC Pump assembly Parts by MiTM
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
7-0163 Unloader Knob BY MITM
$6.42
2
30-6024 Nut for MiTM Air Compressors by MiTM 306024
$4.43
3
27-8959 Set Screw for MiTM Pressure Washers by MiTM 278959
$10.20
4
8-0500 Adjustment Barrel Brass for AM2-PY09-30M Air Compressor by Mi-T-M 80500
$39.53
5
43-0087 POPPET PIN BY MITM
$3.78
6
8-0501 Spring Button Brass for AM2-PY09-30M Air Compressor by Mi-T-M 80501
$7.28
7
49-0119 Spring 2700 Psi for AM2-PR09-08AB Air Compressor by Mi-T-M 490119
$19.31
8
8-0415 Poppet Stainless Steel for AM2-PR09-08AB Air Compressor by Mi-T-M 80415
$90.74
9
8-0502 Piston Guide M18-1.00P for AM2-PY09-30M Air Compressor by Mi-T-M 80502
$70.16
10
25-0403 O-Ring for MiTM Air Compressors by MiTM 250403
$7.43
11
25-0408 Backup Ring for AM2-PR09-08AB Air Compressor by Mi-T-M 250408
$5.99
12
25-0253 O-Ring 2.9 X 1.78Mm for AM2-PR09-08AB Air Compressor by Mi-T-M 250253
$2.99
13
8-0413 Piston for AM2-PR09-08AB Air Compressor by Mi-T-M 80413
$84.72
14
8-0503 Valve Seat Sstainless Steel for AM2-PY09-30M Air Compressor by Mi-T-M 80503
$37.97
15
25-0500 O-Ring 8.4 X 1Mm for MiTM Pressure Washers 250500
$5.93
16
39-0096 Plug Brass for AC2-PE05-30M Air Compressor by Mi-T-M 390096
$21.80
17
25-0387 O-Ring 10.82 X 1.78Mm for AC2-PE05-30M Air Compressor by Mi-T-M 250387
$4.28
18
46-0880 Manifold BY MITM
$357.21
19
27-8960 Bolt BY MITM
$2.78
20
46-0869 Hose Barb-1/8"-27 Bsppx8Mm Hb for AM2-VE75-80M Air Compressor by Mi-T-M 460869
$21.41
21
46-0870 Injector Adapter BY MITM
$43.88
22
25-0159 O-Ring 15.60 X 1.78Mm for AC1-PR06-20M Air Compressor by Mi-T-M 250159
$7.28
23
25-0407 O-Ring 12.42 X 1.78Mm for AC2-SH11-30M Air Compressor by Mi-T-M 250407
$8.88
24
49-0124 Spring-Unloader Check Valve for AM2-PR09-08AB Air Compressor by Mi-T-M 490124
$19.59
25
8-0458 Unloader-Check Valve Stainless for AM2-PR09-08AB Air Compressor by Mi-T-M 80458
$70.40
26
25-0406 O-Ring 4 X 2.5Mm for AM2-PY09-30M Air Compressor by Mi-T-M 250406
$4.28
27
46-0871 Packing Retainer BY MITM
$13.50
28
25-0501 O-ring BY MITM
$1.35
29
46-0872 Retainer BY MITM
$5.40
30
46-0892 Spacer BY MITM
$1.35
31
26-0239 Oil Seal BY MITM
$4.94
32
39-0119 Oil Sight Glass BY MITM
$11.01
33
25-0502 O-Ring 5.28 X 1.78 for AP1-PI65-08M Air Compressor by Mi-T-M 250502
$4.28
34
46-0873 Pump Housing BY MITM
$104.30
35
27-8432 Screw for MiTM Air Compressors by MiTM 278432
$10.04
36
49-0142 Spring BY MITM
$6.62
37
46-0874 Piston BY MITM
$57.38
38
46-0875 Spring Retainer BY MITM
$2.03
39
46-0876 Washer BY MITM
$34.02
40
48-0057 Bearing BY MITM
$17.63
41
48-0056 Thrust Washer BY MITM
$7.43
42
27-8884 Screw for MiTM Air Compressors by MiTM 278884
$4.43
43
46-0877 Wobble Plate BY MITM
$35.78
44
48-0071 Shaft BY MITM
$39.83
45
25-0503 O-ring BY MITM
$2.24
46
46-0893 Pump Flange BY MITM
$47.25
47
26-0192 Seal Oil for AC1-SE05-60M Air Compressor by Mi-T-M 260192
$63.32
48
46-0894 Flange BY MITM
Call for Price call for price call for price
49
27-8888 Screw for MiTM Air Compressors by MiTM 278888
$8.93
50
70-0290 Valve Kit (Inc. 3 each 22, 42) BY MITM
$63.45
51
70-0291 High Pressure Seals Kit (Inc. 3 each 44, 46-48) BY MITM
$86.40
52
70-0292 Kit Unloader Repair for AM2-PY09-30M Air Compressor by Mi-T-M 700292
$212.18
53
70-0293 Kit Injector Repair for AM2-VE75-80M Air Compressor by Mi-T-M 700293
$9.15
