CV1, CV2, CV2E, CV3, CV3E Vibrator Motor Assembly Parts By Multiquip

CV1, CV2, CV2E, CV3, CV3E Vibrator Motor Assembly Parts By Multiquip

  • CV Series - Vibrator Motor Assembly Parts By Multiquip
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
3061-045 Field Assy,1Hp 115V Cv-1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$128.33
1
3061-043 Field Assy,3Hp 115V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$152.43
1
3061-046 Field Assy,3Hp 230V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$163.09
2
52003-12 Washer,Star #10 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
3
1000-060 Motor Assy,1Hp 115V Cv-1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$651.09
3
1000-063 Motor Assy,3Hp 115V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$687.27
4
6100-003 Bushing, Bronze Wear for CV Series Flex Shaft Concrete Vibrators by Multiquip
$22.91
5
8100-015 End Bell Assy,Output 1Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
$232.34
5
8100-016 End Bell Assy,Output 2Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
$270.91
5
8100-017 End Belly Assy,Output 3Hp for CV Series Flex Shaft Concrete Vibrators by Multiquip
$255.58
7
7200-002 Housing,Spring for CV Series Flex Shaft Concrete Vibrators by Multiquip
$20.41
9
8001-044 Armature & Bearing Assy,2Hp 115V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$205.71
9
8001-047 Armature & Bearing Assy,2Hp 230V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$189.49
10
8005-030 End Bell Assy,Comm. for CV Series Flex Shaft Concrete Vibrators by Multiquip
$132.90
12
50125-04 Knob, Plastic Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.93
13
52003-05 Washer,Lock #10 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
14
53002-09 Pin,Slotted Pin 5/32X1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
16
53001-14 Screw,#10-32X4.00 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$2.83
17
53101-04 Screw,Ground 10-32X.375 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
19
55008-03 Bearing, Front for CV Series Flex Shaft Concrete Vibrators by Multiquip
$8.42
21
59001-06 Insulator,Plastic Field for CV Series Flex Shaft Concrete Vibrators by Multiquip
$3.82
22
59999-08 Spring, Compression for CV Series Flex Shaft Concrete Vibrators by Multiquip
$5.57
23
90004-01 Shaft,Spindle 382V Cv-2/2E-3/3E for CV Series Flex Shaft Concrete Vibrators by Multiquip
$33.31
24
90004-02 Drive Coupler, Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$64.90
25
57000-03 Brush Holder for CV Series Flex Shaft Concrete Vibrators by Multiquip
$17.40
26
53051-01 Brush Holder Set Screw #10-32 X .375 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.39
1
3061-044 Field Assy,2Hp 115V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$138.02
1
3061-047 Field Assy,2Hp 230V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$135.97
3
1000-061 Motor Assy,2Hp 115V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$584.55
3
1000-062 Motor Assy,2Hp 230V Cv-2 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$674.52
3
1000-064 Motor Assy,3Hp 230V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$696.86
6
7200-001 Lock Pin,Quick Disconnect for CV Series Flex Shaft Concrete Vibrators by Multiquip
$16.57
8
7200-004 Shaft Coupling,Qd 314V(Cv-1) for CV Series Flex Shaft Concrete Vibrators by Multiquip
$67.07
8
7200-003 Shaft Coupling,Qd 382V(Cv-2/2E-3/3E) for CV Series Flex Shaft Concrete Vibrators by Multiquip
$86.35
9
8001-045 Armature & Bearing Assy,1Hp 115V Cv-1 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$182.34
9
8001-043 Armature &Bearing Assy,3Hp 115V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$193.67
9
8001-046 Armature & Bearing Assy,3Hp 230V Cv-3 for CV Series Flex Shaft Concrete Vibrators by Multiquip
$192.39
11
43000-03 Brush Assy,Carbon for CV Series Flex Shaft Concrete Vibrators by Multiquip
Call for Price call for price call for price
15
55005-03 Bearing, Rear for CV Series Flex Shaft Concrete Vibrators by Multiquip
$7.47
18
56000-06 Wave Spring for CV Series Flex Shaft Concrete Vibrators by Multiquip
$4.76
20
57001-02 Cap,Brush for CV Series Flex Shaft Concrete Vibrators by Multiquip
$3.99
23
90004-03 Shaft Spindle 314V Cv1A for CV Series Flex Shaft Concrete Vibrators by Multiquip
$69.12
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

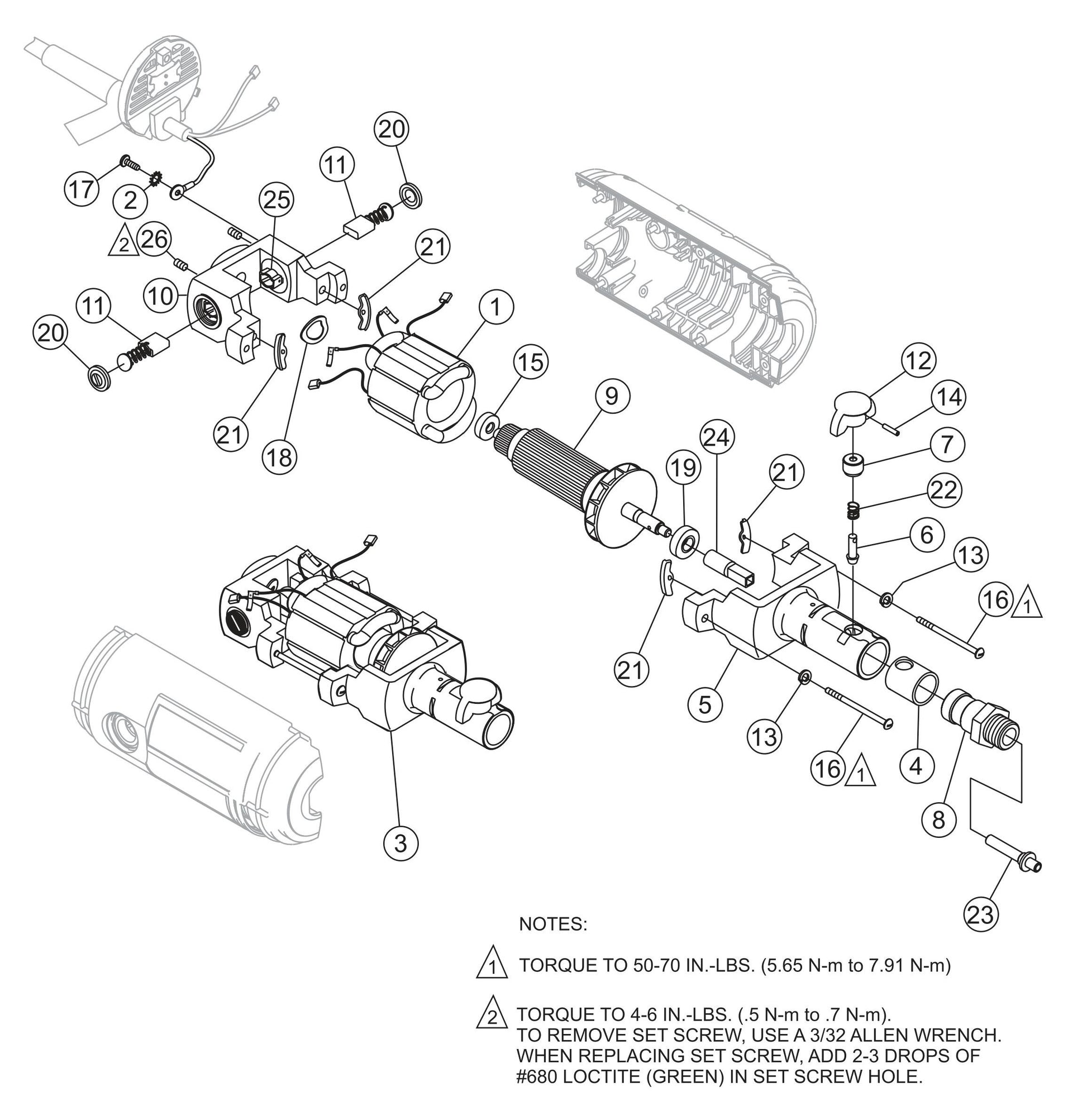

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
