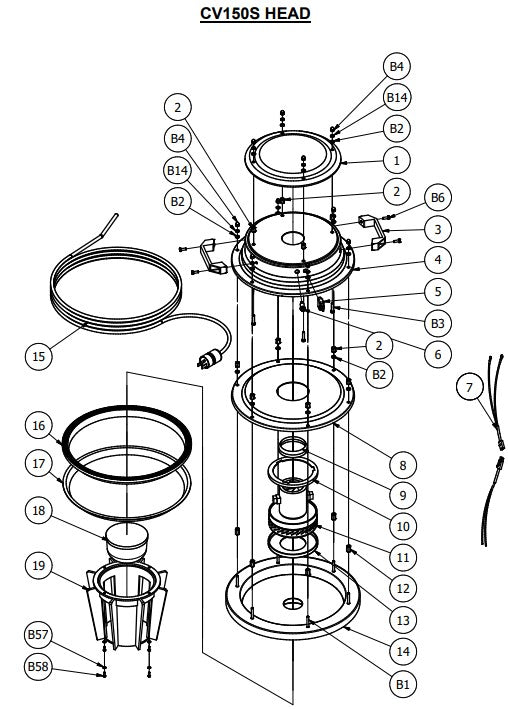

CV150S Head Assembly Parts

CV150S Head Assembly Parts

  • CV150S Head Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2508649 TOP HEAD COVE for CV258B CORE VAC Core Cut by Diamond Products
$214.83
3
2508586 HEAD HANDLE(140DW) for CV150C CORE VAC Core Cut by Diamond Products
$32.28
5
2508585 ON/OFF SWITCH for CV150C CORE VAC Core Cut by Diamond Products
$60.00
6
2508610 LED LAMP for CV258B CORE VAC Core Cut by Diamond Products
Call for Price call for price call for price
7
2508596 MOTOR&ON/OFF SWITCH CABLE CONNECTER for CV150C CORE VAC Core Cut by Diamond Products
$45.20
9
2508595 TOP OF MOTOR COVER for CV150C CORE VAC Core Cut by Diamond Products
$37.66
10
2508597 MID OF MOTOR COVER for CV150C CORE VAC Core Cut by Diamond Products
$59.19
11
2508581 MAIN MOTOR for CV150C CORE VAC Core Cut by Diamond Products
$337.59
13
2508598 LOW OF MOTOR COVER for CV150C CORE VAC Core Cut by Diamond Products
$59.19
16
2508662 RUBBER PACKING for CV258B CORE VAC Core Cut by Diamond Products
$69.95
17
2508663 GASKET for CV258B CORE VAC Core Cut by Diamond Products
$59.19
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
