CW-1504-3MGH, CW-1504-3MGV, CW-2004-1ME1, CW-2004-1ME3 Pump Assembly Parts by MI-T-M

CW-1504-3MGH, CW-1504-3MGV, CW-2004-1ME1, CW-2004-1ME3 Pump Assembly Parts by MI-T-M

  • CW-1504-3MGH, CW-1504-3MGV, CW-2004-1ME1, CW-2004-1ME3 Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
28-0600 Washer for MiTM Pressure Washers by MiTM 280600
$39.59
3
39-0019 Plug/Hex for AC1-HE15-05M Air Compressor by Mi-T-M 390019
$27.85
4
28-0601 Washer for MiTM Pressure Washers 280601
$85.11
7
39-0020 Plug/Valve for AC1-HE15-05M Air Compressor by Mi-T-M 390020
$45.24
8
27-8439 Bolt for MiTM Pressure Washers by MiTM 278439
$12.75
9
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
10
46-0083 Pump Manifold for MiTM Pressure Washers 460083
$1,940.03
18
46-0089 Intermediate Ring for MiTM Pressure Washers 460089
$63.59
20
46-0081 Low Pressure Seal Retainer for MiTM Pressure Washers 460081
$48.18
21
25-0048 O-Ring 1-1/4 X 1-3/8 for MiTM Pressure Washers 250048
$7.49
22
26-0046 Oil Seal (See Kit 70-0391) for MiTM Pressure Washers by MiTM 260046
$46.08
23
27-8000 Bolt for MiTM Pressure Washers 278000
$5.93
25
46-0088 Spacer for MiTM Pressure Washers 460088
$60.08
28
46-0225 Crankcase for MiTM Pressure Washers 460225
Call for Price call for price call for price
30
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
31
28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
32
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
33
46-0109 Teflon Back-Up Ring for MiTM Pressure Washers 460109
$8.93
34
46-0078 Plunger-Ceramic for MiTM Pressure Washers 460078
$281.21
35
46-0146 Slinger Washer for AC1-HE15-05M Air Compressor by Mi-T-M 460146
$5.99
36
46-0080 Piston Rod for MiTM Pressure Washers 460080
$165.11
37
46-0077 Connecting Rod for MiTM Pressure Washers 460077
$204.75
38
28-0201 Washer for MiTM Pressure Washers 280201
$7.65
39
27-8405 Bolt for MiTM Pressure Washers 278405
$20.40
40
26-0081 Gasket Cover - Old Style for MiTM Pressure Washers 260081
$119.94
40
25-0317 O-Ring 101.27 X 2.62Mm for AP1-PI65-08M Air Compressor by Mi-T-M 250317
$14.31
41
46-0085 Crankcase Cover - Old Style for MiTM Pressure Washers 460085
$202.04
41
46-0226 Crankcase Cover - New Style for MiTM Pressure Washers 460226
$196.37
42
27-8401 Bolt for MiTM Air Compressors by MiTM 278401
$7.49
43
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
45
43-0031 Connecting Rod Pin for MiTM Pressure Washers 430031
$45.87
46
46-0230 Crankshaft for MiTM Pressure Washers 460230
$672.47
50
46-0605 Lockwasher for MiTM Pressure Washers 460605
$4.41
51
46-0606 Bolt for MiTM Pressure Washers 460606
$7.65
-
70-0009 Kit Valve for MI-T-M 3004-0ME1 CW Series by MiTM 700009
$112.62
-
70-0040 Packing Kit (Inc. 3 Each 17, 19) for MiTM Pressure Washers 700040
$226.62
-
852-0012 Packing Kit (Inc. 3 Each 16, 17, 19, 21) for MiTM Pressure Washers 8520012
$276.35
-
70-0032 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700032
$67.86
1
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
6
25-0012 O-Ring 20.69 X 2.62Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250012
$1.99
24
46-0084 Retainer/Oil Level/Spacer for AC1-HE02-05M1 Air Compressor by Mi-T-M 460084
$21.98
26
25-0060 O-Ring 55.56 X 3.53Mm for AC1-HE02-05M1 Air Compressor by Mi-T-M 250060
$8.44
27
48-0011 Bear Ball .6305 25 X 62 X 17 for AC1-HE02-05M1 Air Compressor by Mi-T-M 480011
Call for Price call for price call for price
29
46-0143 Dipstick for AC1-HE02-05M1 Air Compressor by Mi-T-M 460143
Call for Price call for price call for price
44
39-0017 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390017
$19.87
47
43-0028 Key 25 X 8 X 7 for AC1-HE02-05M1 Air Compressor by Mi-T-M 430028
$12.31
48
26-0048 Seal Oil for AC1-HE02-05M1 Air Compressor by Mi-T-M 260048
$27.85
49
46-0087 Spacer Bearing for AC1-HE02-05M1 Air Compressor by Mi-T-M 460087
$27.06
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

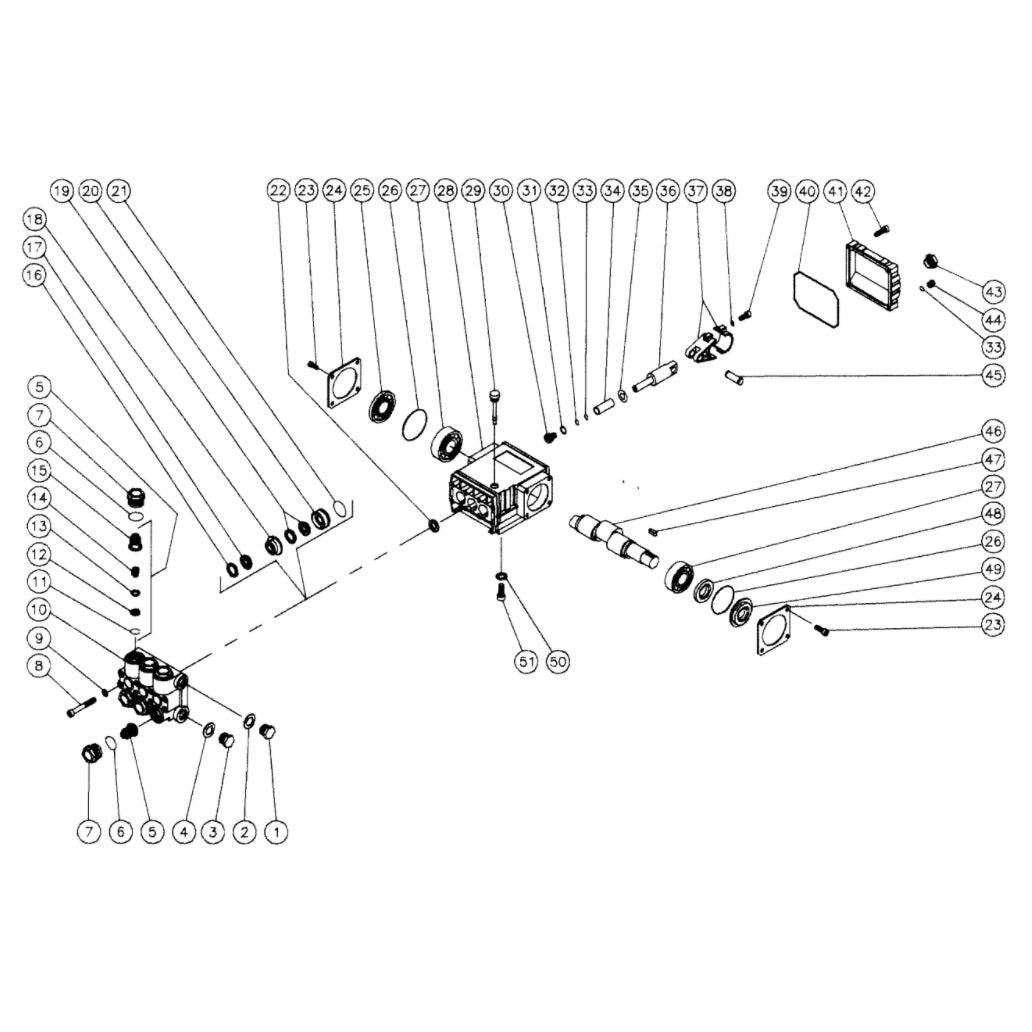

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
