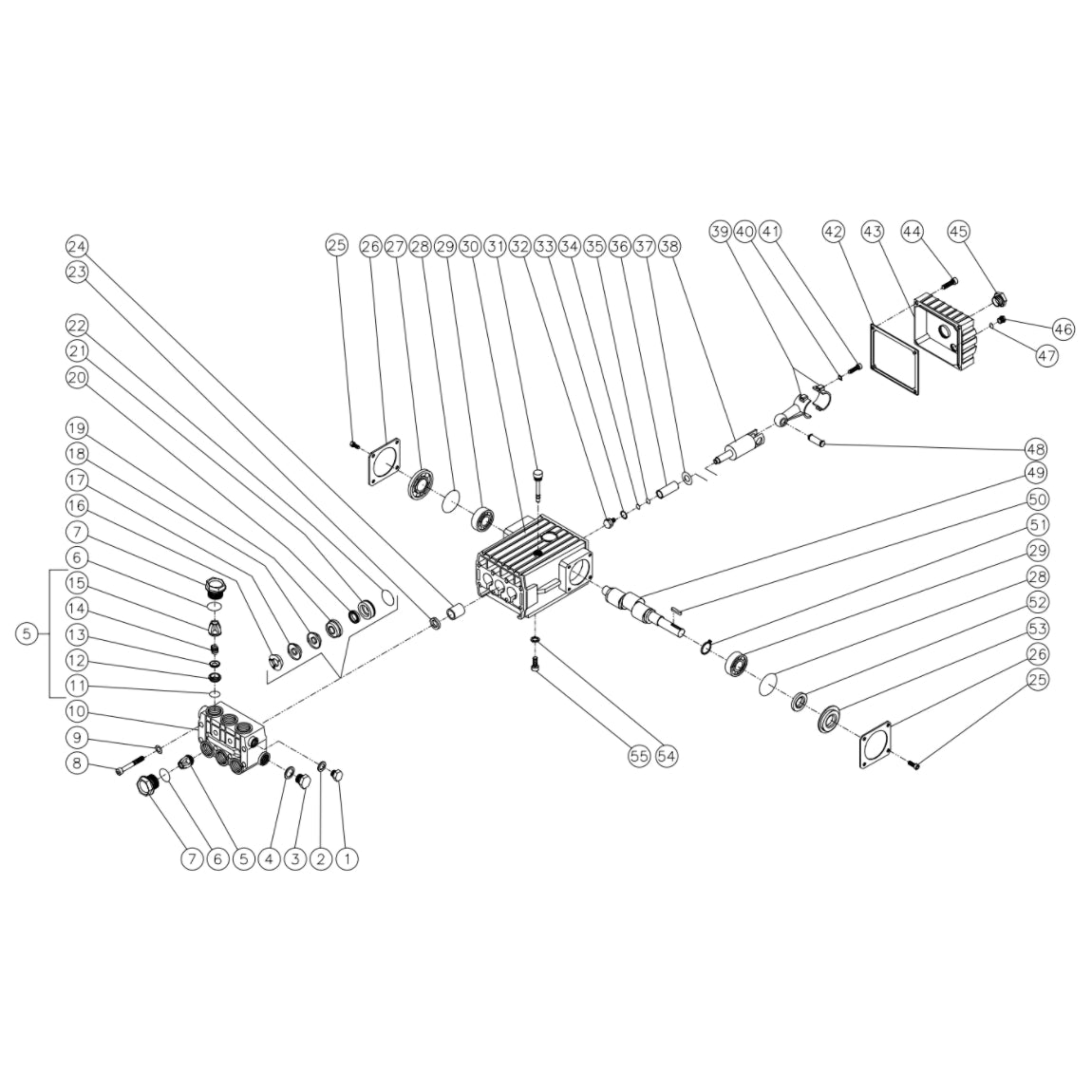

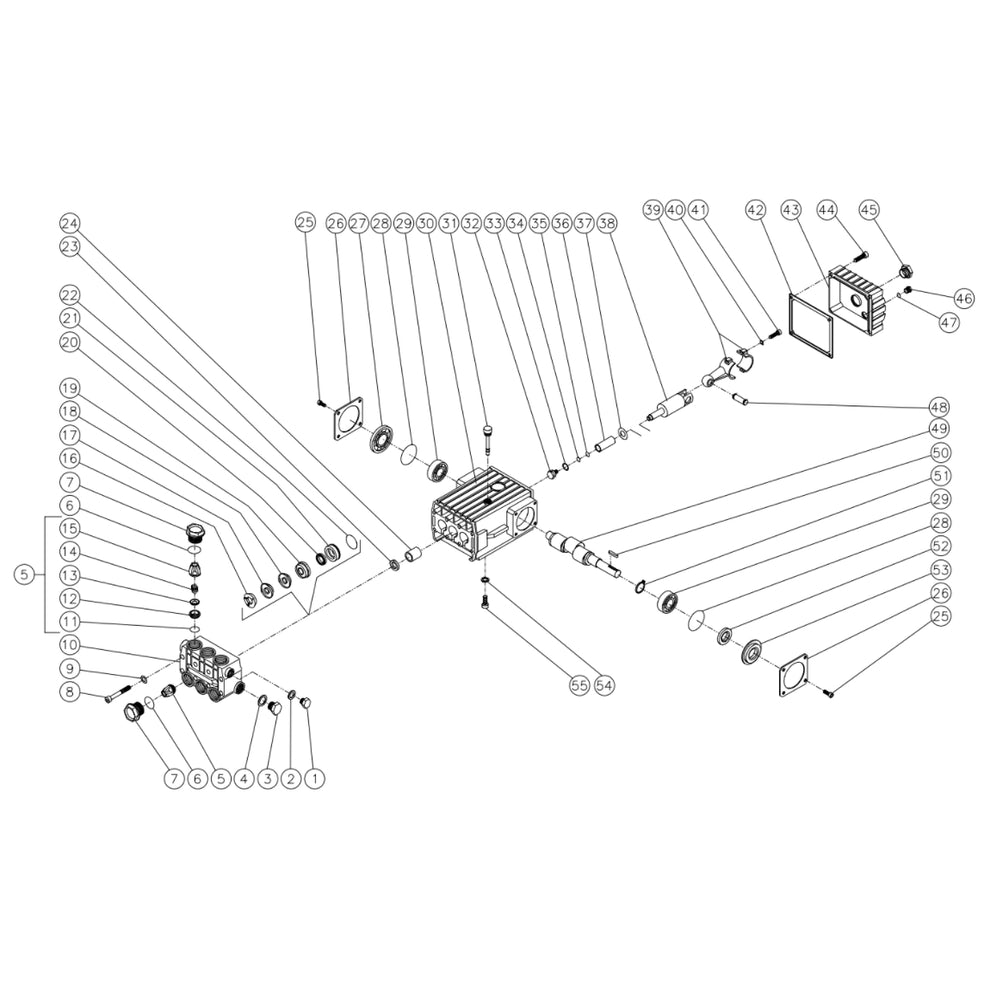

CW-2008-0MGV (sn:0-99999999) Pump Assembly Parts by MI-T-M

CW-2008-0MGV (sn:0-99999999) Pump Assembly Parts by MI-T-M

  • CW-2008-0MGV (sn:0-99999999) Pump Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
3
39-0022 Cap for MiTM Pressure Washers 390022
$60.93
4
28-0602 Washer for MiTM Pressure Washers 280602
$15.30
6
25-0059 O-Ring 1-1/16 X 1-5/16 for AP1-PI65-08M Air Compressor by Mi-T-M 250059
$5.99
7
39-0023 Cap for MiTM Pressure Washers 390023
$79.64
8
27-8470 Bolt for MiTM Pressure Washers 278470
$47.70
9
29-0155 Lockwasher for MiTM Pressure Washers 290155
$7.49
10
46-0335 Manifold for MiTM Pressure Washers 460335
$2,119.59
16
46-0059 High Pressure Head Ring (See Kit 70-0030 Or 852-0122) for MiTM Pressure Washers 460059
$101.63
17
26-0098 V-Packing 20 X 35 X 7.5/4.5 for AC1-PH65-08M Air Compressor by Mi-T-M 260098
$21.36
18
25-0207 Ring for AC1-PH65-08M Air Compressor by Mi-T-M 250207
$31.68
19
46-0659 Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 460659
$21.32
20
26-0197 Low Pressure Seal (See Kit 70-0147 Or 852-0122) for MiTM Pressure Washers 260197
$103.16
22
25-0057 O-Ring for MiTM Pressure Washers 250057
$14.63
23
26-0050 Seal for MiTM Pressure Washers 260050
$60.00
24
9-0030 Bushing for MiTM Pressure Washers 90030
$115.16
25
27-8060 Screw for MiTM Pressure Washers 278060
$15.30
26
46-0090 Crankcase Cover for MiTM Pressure Washers 460090
Call for Price call for price call for price
27
46-0200 Spacer for MiTM Pressure Washers 460200
$62.96
28
25-0061 O-Ring for MiTM Pressure Washers 250061
Call for Price call for price call for price
29
48-0015 Ball Bearing for MiTM Pressure Washers 480015
$167.31
30
46-0330 Cover for MiTM Pressure Washers 460330
$1,083.92
31
46-0144 Dipstick 3-1/8Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460144
$27.70
32
46-0069 Nut/Piston for AC1-HE15-05M Air Compressor by Mi-T-M 460069
$26.59
33
25-0014 O-Ring 7/16 X 9/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250014
$1.99
34
001211253 Bolt for MVC88 Plate Tamper by Multiquip Mikasa
$5.20
35
28-0400 Washer/Gasket for MiTM Pressure Washers 280400
$18.30
36
46-0052 Plunger Ceram 14X20X50Lg for AC1-HE15-05M Air Compressor by Mi-T-M 460052
$75.11
37
46-0100 Spacer for MiTM Pressure Washers 460100
$45.87
53
46-0100 Spacer for MiTM Pressure Washers 460100
$45.87
39
46-0202 Connecting Rod for MiTM Pressure Washers 460202
Call for Price call for price call for price
40
29-0154 Lockwasher for MiTM Air Compressors by MiTM 290154
$4.43
41
27-8435 Bolt for MiTM Pressure Washers by MiTM 278435
$8.88
42
26-0096 Gasket for MiTM Pressure Washers 260096
$159.02
43
46-0333 Crankcase Cover for MiTM Pressure Washers 460333
$400.26
44
27-8409 Bolt for MiTM Pressure Washers 278409
$5.93
45
46-0114 Indicator Oil Level for AC1-HE15-05M Air Compressor by Mi-T-M 460114
$26.76
48
43-0033 Pin for MiTM Pressure Washers 430033
$60.93
49
46-0331 Crankshaft for MiTM Pressure Washers 460331
$1,068.39
50
43-0029 Key for MiTM Pressure Washers 430029
$15.30
51
46-0105 Clip for MiTM Pressure Washers 460105
$15.30
52
26-0051 Oil Seal for MiTM Pressure Washers 260051
$77.54
55
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
-
70-0030 Head Ring Kit (Inc. 3 Each 16) for MiTM Pressure Washers 700030
$101.63
-
70-0041 Valve Kit (Inc. 3 Each 11-15) for MiTM Pressure Washers 700041
$458.58
-
70-0147 Kit Packing 20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700147
$152.37
-
70-0148 Kit-Intermediate Retainer-20Mm for AC1-HE15-05M Air Compressor by Mi-T-M 700148
$161.38
1
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
46
39-0018 Plug/Hex for AC1-HE02-05M1 Air Compressor by Mi-T-M 390018
$27.85
47
25-0052 O-Ring 9/16 X 3/4 for AC1-HE02-05M1 Air Compressor by Mi-T-M 250052
$5.99
54
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
