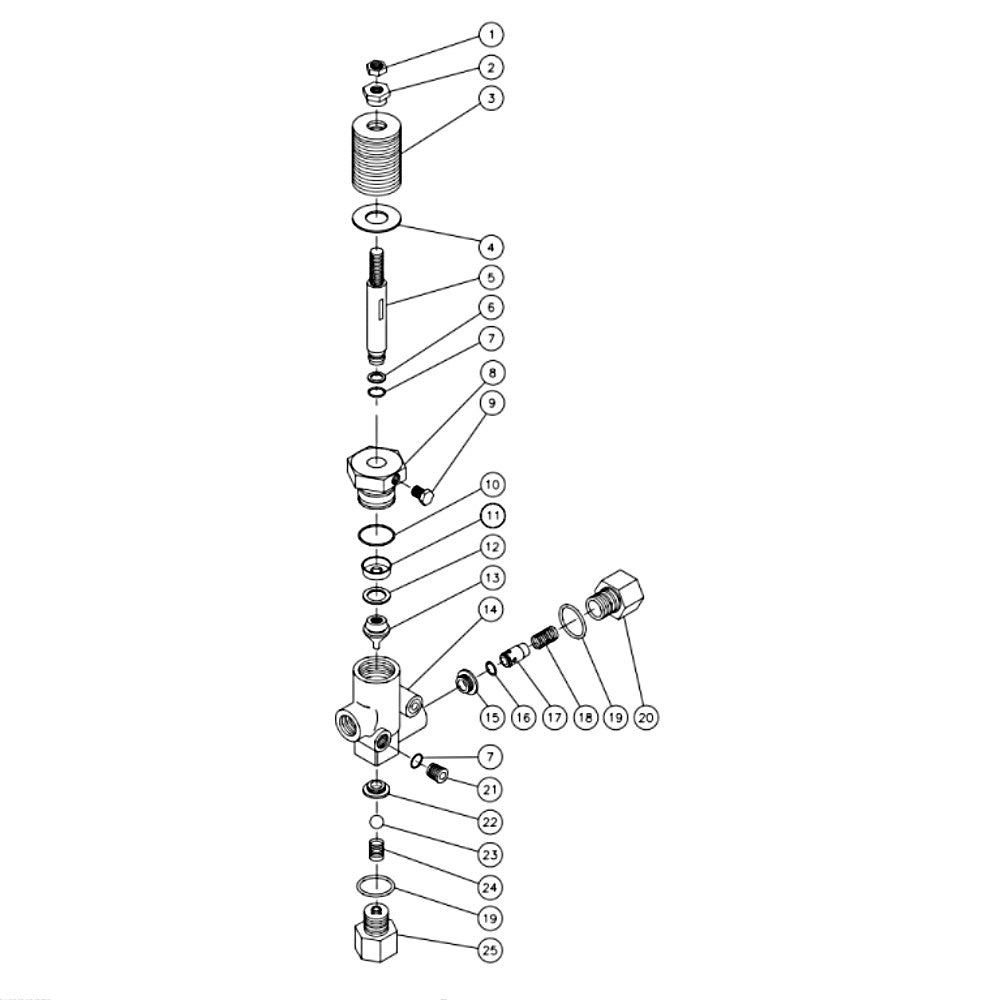

CW-2008, CW-2405, CW-2504, CW-2505, CW-3004, CW-3005, CW-3006 Unloader (8-0032) Assembly Parts by MI-T-M

CW-2008, CW-2405, CW-2504, CW-2505, CW-3004, CW-3005, CW-3006 Unloader (8-0032) Assembly Parts by MI-T-M

  • CW-2008, CW-2405, CW-2504, CW-2505, CW-3004, CW-3005, CW-3006 Unloader (8-0032) Assembly Parts by MI-T-M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
30-3058 Locknut for MiTM Pressure Washers 303058
$21.84
2
8-0089 Adjusting Nut for MI-T-M 3004-0ME1 CW Series by MiTM 80089
$43.46
3
8-0009 Spring Washers - Orange for MiTM Pressure Washers 80009
$22.23
4
28-0250 Washer for MiTM Pressure Washers 280250
$60.00
5
8-0037 Valve Steam for MI-T-M 3004-0ME1 CW Series by MiTM 80037
$90.93
6
8-0038 Ring Back- Up 10 X 13 X 1 for MI-T-M 3004-0ME1 CW Series by MiTM 80038
$5.95
7
25-0009 O-Ring for MiTM Pressure Washers 250009
$18.99
8
8-0036 Valve Cap for MI-T-M 3004-0ME1 CW Series by MiTM 80036
$142.92
9
8-0084 Set Screw, Valve Cap for MI-T-M 3004-0ME1 CW Series by MiTM 80084
$11.45
10
25-0008 O-Ring for MiTM Pressure Washers 250008
Call for Price call for price call for price
11
8-0034 Cup (23Mm) for MI-T-M 3004-0ME1 CW Series by MiTM 80034
$22.66
12
8-0040 Ring Back-Up 19 X 23 X 1.5 for MI-T-M 3004-0ME1 CW Series by MiTM 80040
$17.99
13
8-0039 Piston Unloader 901 for MI-T-M 3004-0ME1 CW Series by MiTM 80039
$50.48
14
8-0164 Valve Body for MI-T-M 3004-0ME1 CW Series by MiTM 80164
$235.11
15
8-0006 Outlet Seat for MiTM Pressure Washers 80006
$55.32
16
25-0011 O-Ring for MiTM Pressure Washers 250011
Call for Price call for price call for price
17
8-0004 Outlet Valve for MiTM Pressure Washers 80004
$108.68
18
49-0016 Spring 12 X 16Lg .032 Stl for MI-T-M 3004-0ME1 CW Series by MiTM 490016
$8.24
19
25-0010 O-Ring for MiTM Pressure Washers 250010
$18.99
20
8-0003 Outlet Retainer for MiTM Pressure Washers 80003
$124.23
21
8-0011 Brass Plug for MiTM Pressure Washers 80011
$53.76
22
8-0005 Valve Seat for MiTM Pressure Washers 80005
$88.91
23
8-0041 Ball Inlet 14Mm Steel for MI-T-M 3004-0ME1 CW Series by MiTM 80041
$19.94
24
49-0015 Spring 12 X 16Lg .047 Stl for MI-T-M 3004-0ME1 CW Series by MiTM 490015
$9.80
25
8-0165 Retainer Inlet Valve for MI-T-M 3004-0ME1 CW Series by MiTM 80165
$73.80
-
70-0044 Kit Unloader for MI-T-M 3004-0ME1 CW Series by MiTM 700044
$79.09
