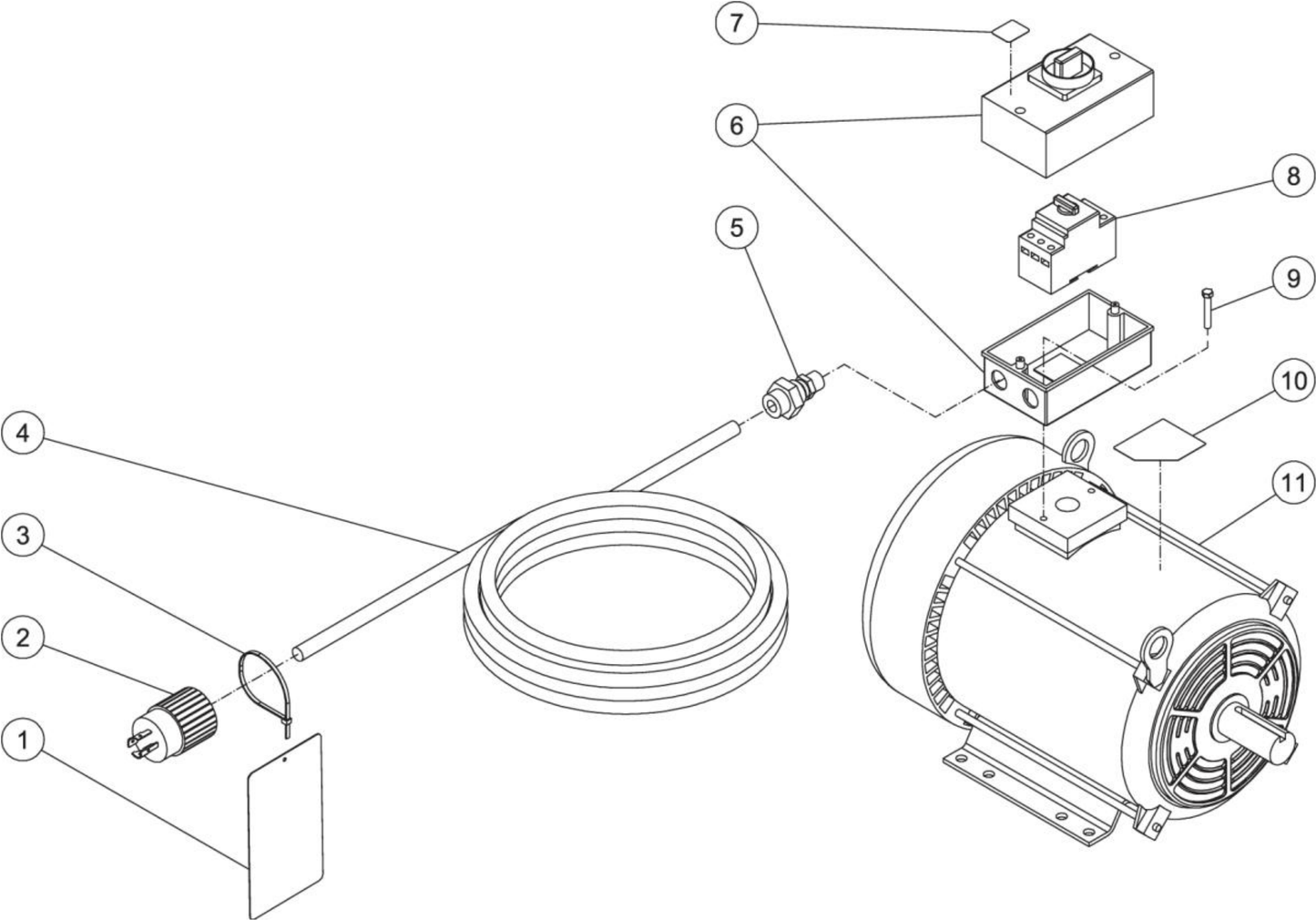

CW-2405-4ME3 (sn:10874729-11326874) Motor Assembly Parts By Mi-T-M

CW-2405-4ME3 (sn:10874729-11326874) Motor Assembly Parts By Mi-T-M

  • CW-2405-4ME3 (sn:10874729-11326874) Motor Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
32-0037 Plug 250V 3P 30A Nema L15-30P for AC1-PR06-08M Air Compressor by Mi-T-M 320037 32-0037 Plug 250V 3P 30A Nema L15-30P for AC1-PR06-08M Air Compressor by Mi-T-M 320037
$22.28
2
32-0117 Plug 48Ov 3Ph 20A Nema L16-20P for MiTM Pressure Washers 320117 32-0117 Plug 48Ov 3Ph 20A Nema L16-20P for MiTM Pressure Washers 320117
$150.21
3
33-0022 CABLE TIE BY MITM 33-0022 CABLE TIE BY MITM
$1.47
4
32-0023 Cord 10/4 So Per Ft for AC1-PR06-08M Air Compressor by Mi-T-M 320023 32-0023 Cord 10/4 So Per Ft for AC1-PR06-08M Air Compressor by Mi-T-M 320023
$22.28
4
32-0025 Cord 12/4 So Per Ft for AC1-PH65-08M Air Compressor by Mi-T-M 320025 32-0025 Cord 12/4 So Per Ft for AC1-PH65-08M Air Compressor by Mi-T-M 320025
$13.61
5
32-0013 CORD STRAIN RELIEF (CW-2004-1ME3) BY MITM 32-0013 CORD STRAIN RELIEF (CW-2004-1ME3) BY MITM
$42.36
6
32-1045 Starter - 10-16 Amps (Cx-0003) for MiTM Pressure Washers 321045 32-1045 Starter - 10-16 Amps (Cx-0003) for MiTM Pressure Washers 321045
$575.01
8
32-1046 Starter for MiTM Pressure Washers 321046 32-1046 Starter for MiTM Pressure Washers 321046
$666.96
9
27-0018 Bolt for MiTM Pressure Washers 270018 27-0018 Bolt for MiTM Pressure Washers 270018
$7.65
11
2-0093 Motor 8Hp 208-230/460V 3 Phase for AC1-PR06-08M Air Compressor by Mi-T-M 20093 2-0093 Motor 8Hp 208-230/460V 3 Phase for AC1-PR06-08M Air Compressor by Mi-T-M 20093
$318.95
-
32-0359 Crimped Wire Splice 18-12 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320359 32-0359 Crimped Wire Splice 18-12 for AC1-PE15-20M1 Air Compressor by Mi-T-M 320359
$2.85
