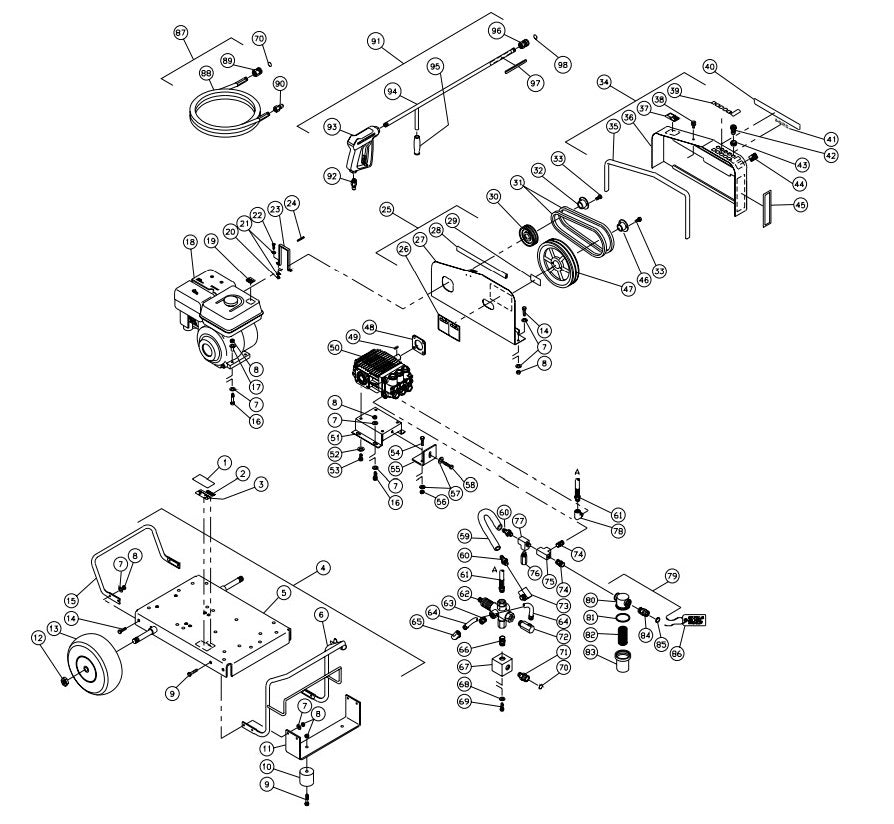

CW-2504-4UH0 (sn:0-99999999) Frame Assembly Parts by MI-T-M

CW-2504-4UH0 (sn:0-99999999) Frame Assembly Parts by MI-T-M

  • CW-2504-4UH0 (sn:0-99999999) Frame Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
4
851-0209 Base Plate Assembly (5-15) for MiTM Pressure Washers 8510209
Call for Price call for price call for price
5
5-0090A01 Base Plate for MiTM Pressure Washers 50090A01
Call for Price call for price call for price
6
7-0101A01 Front Handle for MiTM Pressure Washers 70101A01
$324.50
7
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
8
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
9
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
10
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
11
13-0042A01 Underbracket for MiTM Pressure Washers 130042A01
$92.19
12
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
13
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
15
7-0104A01 Rear Handle for MiTM Pressure Washers 70104A01
$126.84
16
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
17
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
18
1-0065 Engine Honda 9.0 Hp Recoil for AC2-SR09-30M Air Compressor by Mi-T-M 10065
$1,763.55
19
34-0588 Decal- Caution: Allow To Cool for MiTM Pressure Washers 340588
$25.50
21
28-0002 Washer for MiTM Pressure Washers 280002
$5.93
23
6-0054A01 Finger Guard for MiTM Pressure Washers 60054A01
Call for Price call for price call for price
24
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
25
851-0213 Beltguard Back Assembly (24-27) for MiTM Pressure Washers 8510213
$275.18
26
34-0498 Decal- Warning/Caution for MiTM Pressure Washers 340498
Call for Price call for price call for price
30
10-0029 Sheave 2Ak32H for AC2-PH11-30M Air Compressor by Mi-T-M 100029
$67.56
31
11-0023 Cog Belt Ax34 for AC2-PV09-20M Air Compressor by Mi-T-M 110023
$36.78
34
851-0217 Beltguard Cover Assembly (Inc. 35-39, 43, 45) for MiTM Pressure Washers 8510217
$312.62
37
34-0130 Decal- Warning: Muffler Hot for MiTM Pressure Washers 340130
$5.93
38
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
39
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
40
34-0928 Decal- Stripe for MiTM Pressure Washers 340928
Call for Price call for price call for price
41
34-0512 Decal- Die Cut 2504 for MiTM Pressure Washers 340512
Call for Price call for price call for price
42
18-0033 Nozzle- 0004.5 for MiTM Air Compressors by MiTM 180033
Call for Price call for price call for price
42
18-0039 Nozzle- 1504.5 for MiTM Air Compressors by MiTM 180039
Call for Price call for price call for price
42
18-0060 Nozzle- 2504.5 for MiTM Air Compressors by MiTM 180060
$10.55
42
18-0065 Nozzle- 4004.5 for MiTM Air Compressors by MiTM 180065
$10.55
44
34-0521 Decal- American Flag for MiTM Pressure Washers 340521
Call for Price call for price call for price
45
34-0499 Decal-Operating Instructions for MiTM Pressure Washers 340499
Call for Price call for price call for price
47
10-0035 Sheave 2Ak74H for AC2-PR09-08AB Air Compressor by Mi-T-M 100035
$119.25
48
33-0201 Isolator-Pump for MiTM Pressure Washers 330201
Call for Price call for price call for price
49
46-0601 Crankcase Shaft for MiTM Pressure Washers 460601
Call for Price call for price call for price
50
3-0121 Pump for MiTM Pressure Washers 30121
$2,488.67
51
5-0097A01 Pump Bracket for MiTM Pressure Washers 50097A01
$150.80
53
27-8042 Bolt-With Pump for MiTM Pressure Washers 278042
$7.65
55
13-0005A01 Brace Tightener for MiTM Pressure Washers 130005A01
$58.86
59
15-0022 By-Pass Hose for MiTM Pressure Washers 150022
$20.88
60
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
61
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
62
8-0270 Unloader for MiTM Pressure Washers 80270
$597.20
63
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
64
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
66
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
67
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
69
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
70
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
71
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
72
22-0146 Easy Start Valve for MiTM Pressure Washers 220146
$110.16
73
23-0035 Elbow 1/2M X 1/2F 90 Str Brass for MiTM Pressure Washers by MiTM 230035
$36.27
74
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
75
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
77
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
78
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
79
19-0057 Strainer-W/Garden Hose Fitting for AC1-PR06-20M Air Compressor by Mi-T-M 190057
$81.56
80
19-0058 Head-Strainer Polyp Reinforced for AC1-PE15-08M Air Compressor by Mi-T-M 190058
$22.96
81
26-0160 Gasket Strainer Epdm Rubber for AC1-PE15-08M Air Compressor by Mi-T-M 260160
$14.81
82
19-0059 Screen-Strainer 304Ss 80 Mesh for AC1-PE15-08M Air Compressor by Mi-T-M 190059
$21.79
83
19-0060 Bowl-Strainer, Clear for AC1-PE15-08M Air Compressor by Mi-T-M 190060
$26.34
84
23-0095 Swiv 1/2Mx3/4F Garden Hose -Br for AC1-PE15-08M Air Compressor by Mi-T-M 230095
$12.57
85
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
86
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
87
851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007
Call for Price call for price call for price
88
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
89
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
91
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
92
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
94
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
95
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
96
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
97
34-0572 Decal- Warning: Risk Of Injection for MiTM Pressure Washers 340572
$15.30
98
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
14
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
20
30-0155 Locknut for ABS Air Compressor by Mi-T-M 300155
$2.85
29
34-0575 Decal - Beltguard In Place (See 71-0086) for ABS Air Compressor by Mi-T-M 340575
Call for Price call for price call for price
32
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
22
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
33
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
28
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
35
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
43
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
46
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
52
29-0054 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290054
$1.99
54
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
56
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
57
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
58
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
65
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
68
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
76
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
90
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
93
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
