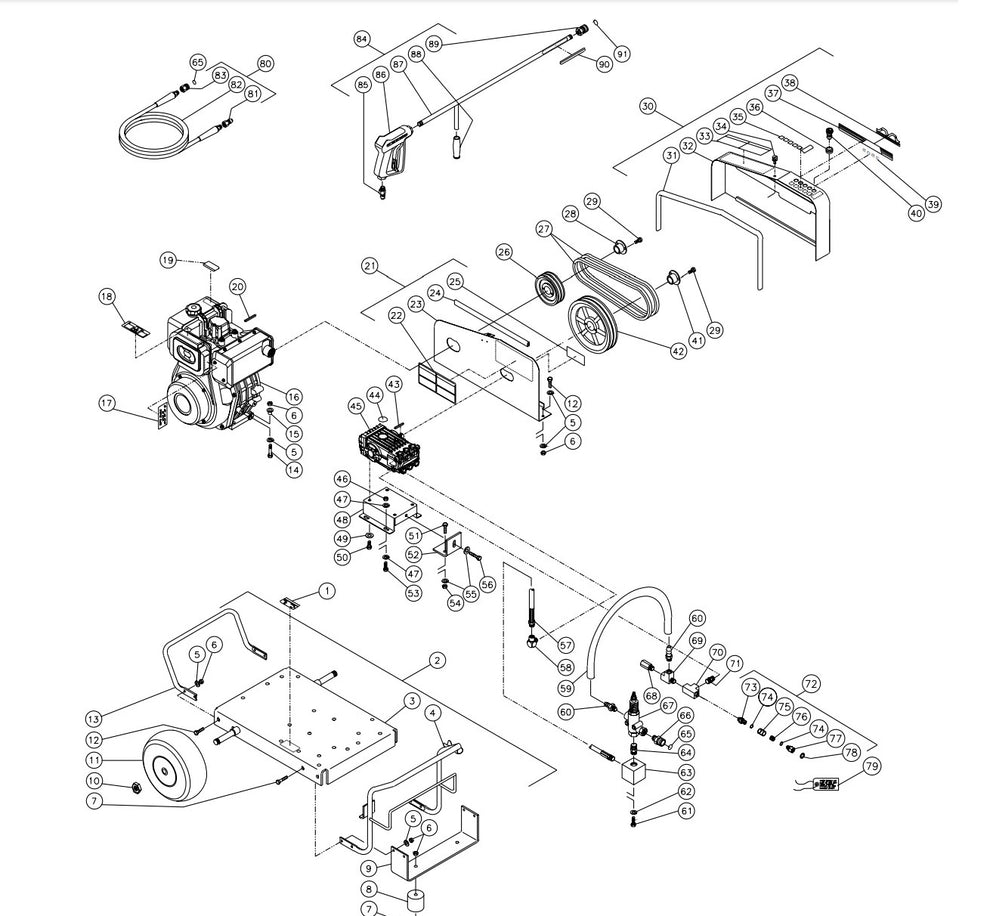

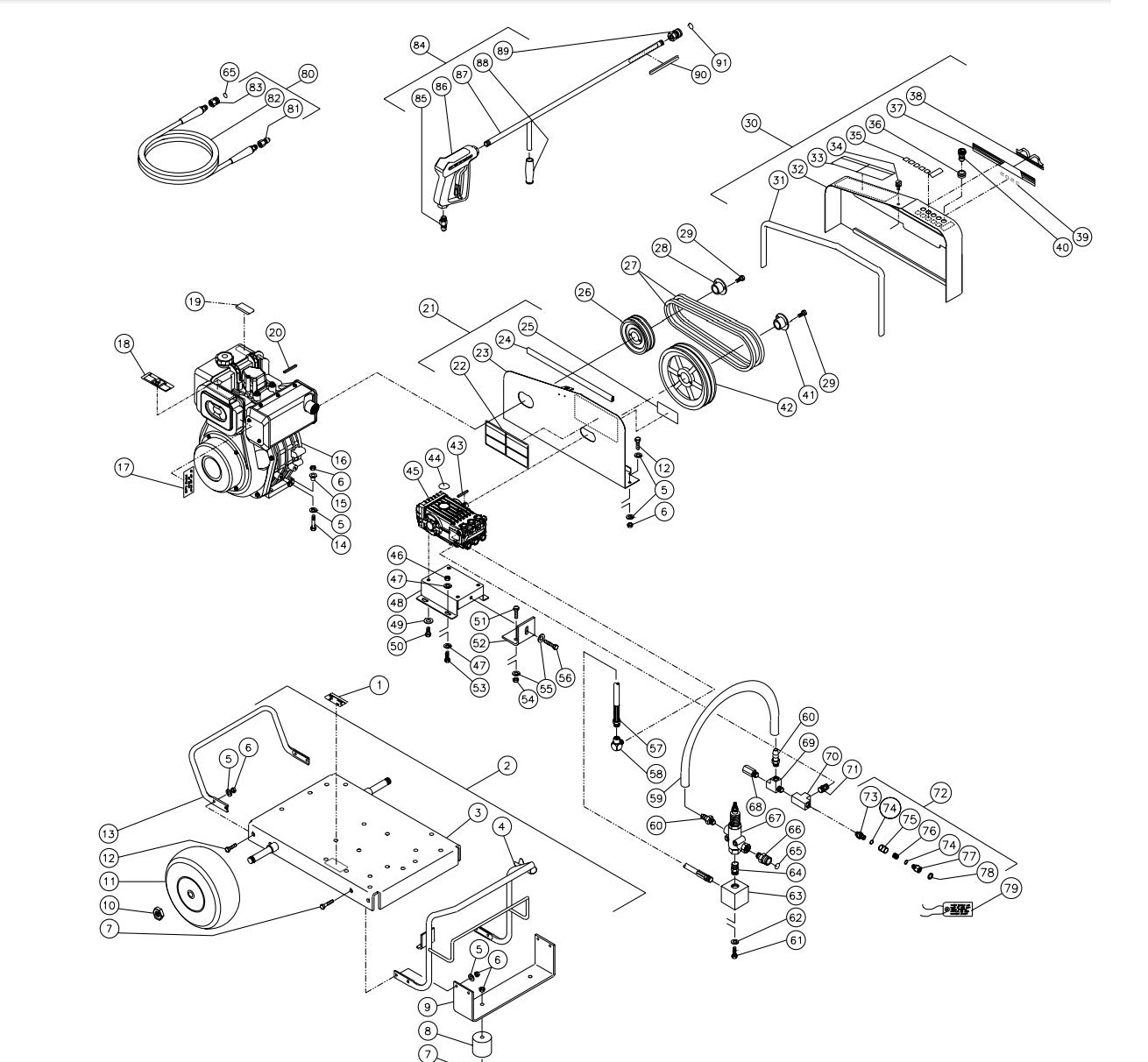

CW-2505-4MDY Frame Assembly Parts By MI-T-M

CW-2505-4MDY Frame Assembly Parts By MI-T-M

  • CW-2505-4MDY Frame Assembly Parts By MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
851-0270 Base Plate Assembly (5-17) for MiTM Pressure Washers 8510270
$1,071.80
3
5-0117A01 Baseplate for MiTM Pressure Washers 50117A01
$550.98
4
7-0101A01 Front Handle for MiTM Pressure Washers 70101A01
$324.50
5
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
6
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
7
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
8
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
9
13-0042A01 Underbracket for MiTM Pressure Washers 130042A01
$92.19
10
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
11
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
13
7-0104A01 Rear Handle for MiTM Pressure Washers 70104A01
$126.84
14
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
15
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
16
1-0084 Engine 9.0 Hp for MiTM Pressure Washers 10084
$11,514.35
17
34-0141 Decal-Do Not Use Ether for MiTM Pressure Washers 340141
Call for Price call for price call for price
18
34-0598 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340598
$5.93
19
34-0599 Decal- Caution: Allow To Cool (E/S for MiTM Pressure Washers 340599
$5.93
20
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
21
851-0271 Beltguard Back Assy. (24-27) for MiTM Pressure Washers 8510271
$387.03
22
34-0812 Decal - Warning (See 71-1040) for MiTM Pressure Washers 340812
$30.60
25
34-0826 Decal- Warning: Beltguard In Place (E/S) for MiTM Pressure Washers 340826
$15.30
26
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
30
851-0216 Beltguard Cover Assembly (Inc. 30-37) for MiTM Pressure Washers 8510216
$265.04
33
34-0813 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340813
$20.40
34
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
35
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
37
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
38
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
39
34-0416 Decal-White Die Cut 2505 for MiTM Pressure Washers 340416
Call for Price call for price call for price
40
18-0035 Spray Nozzle- 0005.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180035
$20.94
40
18-0041 Spray Nozzle- 1505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180041
$20.94
40
18-0062 Spray Nozzle- 2505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180062
$20.94
40
18-0132 Spray Nozzle - 40055 for MiTM Pressure Washers 180132
Call for Price call for price call for price
42
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
43
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HH04-05M Air Compressor by Mi-T-M 430048
$13.13
45
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
46
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
47
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
48
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
50
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
52
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
53
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
57
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
58
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HH04-05M Air Compressor by Mi-T-M 240105
$23.15
59
15-0035 Hose 3/4 Idx22"Bypass 250Psi for AC1-PE15-08M Air Compressor by Mi-T-M 150035
$18.00
60
23-0007 Hose Barb for MiTM Pressure Washers 230007
$48.00
61
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
63
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
64
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
65
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
66
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
67
8-0032 Unloader Valve Orange Spring for MI-T-M 3004-0ME1 CW Series by MiTM 80032
$250.50
69
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
70
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
71
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
72
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
74
25-0517 O-Ring 10 13/16" X 1/16" for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 250517
$4.85
75
19-0208 Screen-Strainer 304 Ss 60 Mesh for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190208
$5.99
76
19-0209 Sight Glass Filter for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190209
$8.69
78
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
79
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
80
851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007
Call for Price call for price call for price
82
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
83
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
84
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
85
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
87
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
88
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
89
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
90
34-1253 Decal- Warning: Risk Of Injection (E/S) for MiTM Pressure Washers 341253
$15.30
91
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
12
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
27
11-0011 MITM COG BELT AX46 for MI-T-M CD-1002-2MUH by MiTM 110011
$25.36
28
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
29
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
24
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
31
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
36
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
41
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
49
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
51
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
54
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
55
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
56
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
62
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
68
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
81
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
86
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
