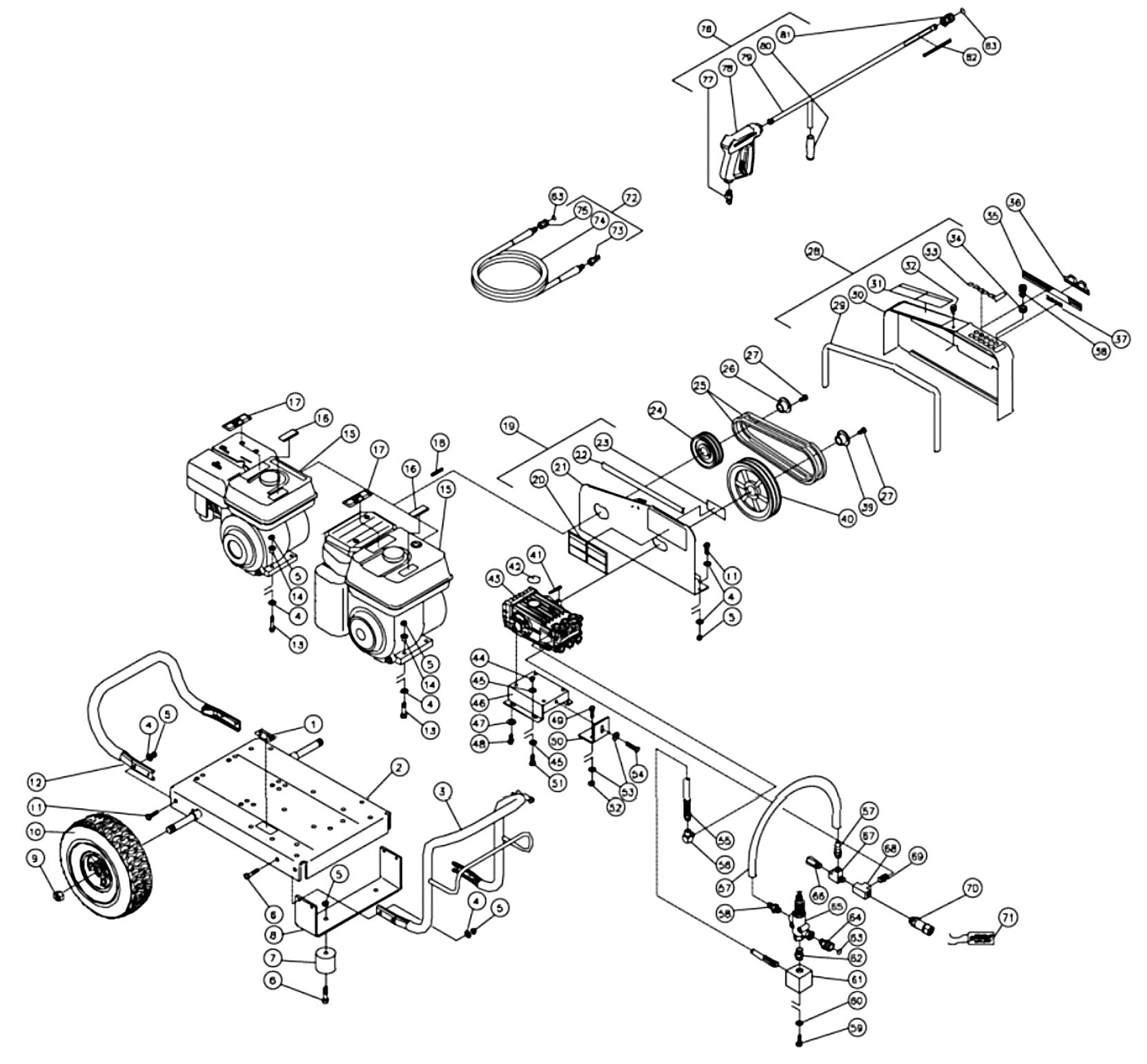

CW-2505-4MGH/4MGV (sn:10070001-10375000)(sn:10375001-10552631) Frame Assembly Parts by MI-T-M

CW-2505-4MGH/4MGV (sn:10070001-10375000)(sn:10375001-10552631) Frame Assembly Parts by MI-T-M

  • CW-2505-4MGH/4MGV (sn:0-10552631) Frame Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref.
Product
details
 Price Qty ActionAdd
2
5-0078A42 Base Plate for MiTM Pressure Washers 50078A42 5-0078A42 Base Plate for MiTM Pressure Washers 50078A42
$630.53
3
7-0174A42 Front Handle for MiTM Pressure Washers 70174A42 7-0174A42 Front Handle for MiTM Pressure Washers 70174A42
$286.43
4
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
5
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
6
27-0068 Bolt for MiTM Pressure Washers by MiTM 270068 27-0068 Bolt for MiTM Pressure Washers by MiTM 270068
$4.49
7
14-0008 Isolator 2" Od X 1.75 for AC2-PV11-30M Air Compressor by Mi-T-M 140008 14-0008 Isolator 2" Od X 1.75 for AC2-PV11-30M Air Compressor by Mi-T-M 140008
$11.49
8
13-0137A42 Underbracket for MiTM Pressure Washers 130137A42 13-0137A42 Underbracket for MiTM Pressure Washers 130137A42
$119.19
9
30-0117 Jam Nut for MiTM Pressure Washers 300117 30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
10
14-0092 Wheel for MiTM Pressure Washers 140092 14-0092 Wheel for MiTM Pressure Washers 140092
$191.66
11
27-0067 Bolt for MiTM Pressure Washers 270067 27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
12
7-0175A42 Rear Handle for MiTM Pressure Washers 70175A42 7-0175A42 Rear Handle for MiTM Pressure Washers 70175A42
$156.27
13
27-0070 Screw for MiTM Air Compressors by MiTM 270070 27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
14
33-0169 Shim Engine for AC1-SE05-60M Air Compressor by Mi-T-M 330169 33-0169 Shim Engine for AC1-SE05-60M Air Compressor by Mi-T-M 330169
Call for Price call for price call for price
15
1-0039 Engine- 11.0 Hp Honda for MiTM Air Compressors by MiTM 10039 1-0039 Engine- 11.0 Hp Honda for MiTM Air Compressors by MiTM 10039
Call for Price call for price call for price
15
1-0089 Engine- 11 H.P. Briggs & Stratton Vanguard BY MITM 1-0089 Engine- 11 H.P. Briggs & Stratton Vanguard BY MITM
Call for Price call for price call for price
18
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Pressure Washers 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Pressure Washers 430078
$36.81
19
851-0349 Beltguard Back Assembly (Inc. 20-24) for MiTM Pressure Washers 8510349 851-0349 Beltguard Back Assembly (Inc. 20-24) for MiTM Pressure Washers 8510349
$228.77
22
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020 33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
29
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020 33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
24
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-20M Air Compressor by Mi-T-M 100067 10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-20M Air Compressor by Mi-T-M 100067
$55.22
25
11-0011 MITM COG BELT AX46 for MI-T-M CD-1002-2MUH by MiTM 110011 11-0011 MITM COG BELT AX46 for MI-T-M CD-1002-2MUH by MiTM 110011
$25.36
26
9-0005 Bushing for MiTM Pressure Washers 90005 9-0005 Bushing for MiTM Pressure Washers 90005
$60.12
27
27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015 27-0015 Bolt-With Bushing for MiTM Pressure Washers 270015
$5.93
28
851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348 851-0348 Beltguard Cover Assembly (Inc. 29-34) for MiTM Pressure Washers 8510348
$270.99
32
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197 33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
33
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500 34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
34
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M1 Air Compressor by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M1 Air Compressor by Mi-T-M 330001
$1.99
35
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501 34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
36
62-0086 Mi-T-M Logo for MiTM Pressure Washers 620086 62-0086 Mi-T-M Logo for MiTM Pressure Washers 620086
Call for Price call for price call for price
37
34-0416 Decal-White Die Cut 2505 for MiTM Pressure Washers 340416 34-0416 Decal-White Die Cut 2505 for MiTM Pressure Washers 340416
Call for Price call for price call for price
38
18-0035 Spray Nozzle- 0005.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180035 18-0035 Spray Nozzle- 0005.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180035
$20.94
38
18-0041 Spray Nozzle- 1505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180041 18-0041 Spray Nozzle- 1505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180041
$20.94
38
18-0062 Spray Nozzle- 2505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180062 18-0062 Spray Nozzle- 2505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180062
$20.94
38
18-0132 Spray Nozzle - 40055 for MiTM Pressure Washers 180132 18-0132 Spray Nozzle - 4005.5 for MiTM Pressure Washers 180132
Call for Price call for price call for price
39
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M1 Air Compressor by Mi-T-M 90017 9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M1 Air Compressor by Mi-T-M 90017
$21.01
40
10-0040 Sheave 2Ak104H for AC1-PE02-08M Air Compressor by Mi-T-M 100040 10-0040 Sheave 2Ak104H for AC1-PE02-08M Air Compressor by Mi-T-M 100040
$90.41
41
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HR45-05M Air Compressor by Mi-T-M 430048 43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HR45-05M Air Compressor by Mi-T-M 430048
$13.13
43
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-PH65-08M Air Compressor by Mi-T-M 30202 3-0202 Pump 5.5 Gpm 3500 Psi for AC1-PH65-08M Air Compressor by Mi-T-M 30202
$992.38
44
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161 30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
45
28-0030 Washer for MiTM Pressure Washers 280030 28-0030 Washer for MiTM Pressure Washers 280030
$7.65
46
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01 5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
47
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055 29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
48
27-8471 Bolt for MiTM Pressure Washers 278471 27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
49
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118 27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
50
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01 13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
51
27-0166 Bolt for MiTM Pressure Washers 270166 27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
52
30-0159 Locknut for ABS Air Compressor by Mi-T-M 300159 30-0159 Locknut for ABS Air Compressor by Mi-T-M 300159
$2.85
53
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
54
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576 27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
55
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024 15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
56
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HH04-05M Air Compressor by Mi-T-M 240105 24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HH04-05M Air Compressor by Mi-T-M 240105
$23.15
57
15-0035 Hose 3/4 Idx22"Bypass 250Psi for AC1-PE15-08M Air Compressor by Mi-T-M 150035 15-0035 Hose 3/4 Idx22"Bypass 250Psi for AC1-PE15-08M Air Compressor by Mi-T-M 150035
$18.00
58
23-0007 Hose Barb for MiTM Pressure Washers 230007 23-0007 Hose Barb for MiTM Pressure Washers 230007
$48.00
59
27-0116 Bolt for MiTM Pressure Washers 270116 27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
60
29-0008 Lockwasher for ABS Air Compressor by Mi-T-M 290008 29-0008 Lockwasher for ABS Air Compressor by Mi-T-M 290008
$1.99
61
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012 51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
62
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031 24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
63
25-0123 O-Ring 1/2 X 11/16 for AC1-HH04-05M Air Compressor by Mi-T-M 250123 25-0123 O-Ring 1/2 X 11/16 for AC1-HH04-05M Air Compressor by Mi-T-M 250123
$1.99
64
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
65
8-0032 Unloader for MiTM Pressure Washers 80032 8-0032 Unloader for MiTM Pressure Washers 80032
$553.40
66
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-SE05-60M Air Compressor by Mi-T-M 220005 22-0005 Valve-Thermal Relief 1/2M 145F for AC1-SE05-60M Air Compressor by Mi-T-M 220005
$31.02
67
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HH04-05M Air Compressor by Mi-T-M 230124 23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HH04-05M Air Compressor by Mi-T-M 230124
$32.05
68
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043 23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
69
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230012 23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HH04-05M Air Compressor by Mi-T-M 230012
Call for Price call for price call for price
70
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC2-PV09-08M Air Compressor by Mi-T-M 190206 19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC2-PV09-08M Air Compressor by Mi-T-M 190206
$68.57
71
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097 34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
72
851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007 851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007
Call for Price call for price call for price
73
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M1 Air Compressor by Mi-T-M 170006 17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M1 Air Compressor by Mi-T-M 170006
$22.62
74
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003 15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
75
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004 17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
76
851-0095 Gun, Black Wand Grip W/Qc for AC2-PV09-08M Air Compressor by Mi-T-M 8510095 851-0095 Gun, Black Wand Grip W/Qc for AC2-PV09-08M Air Compressor by Mi-T-M 8510095
$188.60
77
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HR45-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HR45-05M Air Compressor by Mi-T-M 170005
$16.25
78
16-0001 Gun for MiTM Pressure Washers 160001 16-0001 Gun for MiTM Pressure Washers 160001
$151.43
79
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01 16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
80
7-0002 Handle Grip For Wand for MiTM Pressure Washers 70002 7-0002 Handle Grip For Wand for MiTM Pressure Washers 70002
$20.40
81
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PV09-08M Air Compressor by Mi-T-M 170001 17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PV09-08M Air Compressor by Mi-T-M 170001
$19.94
83
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122 25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
-
34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017 34-9017 Safety Decal Kit (Inc. 2-3, 40-41, 49, 63) for MiTM Air Compressors by MiTM 349017
Call for Price call for price call for price
