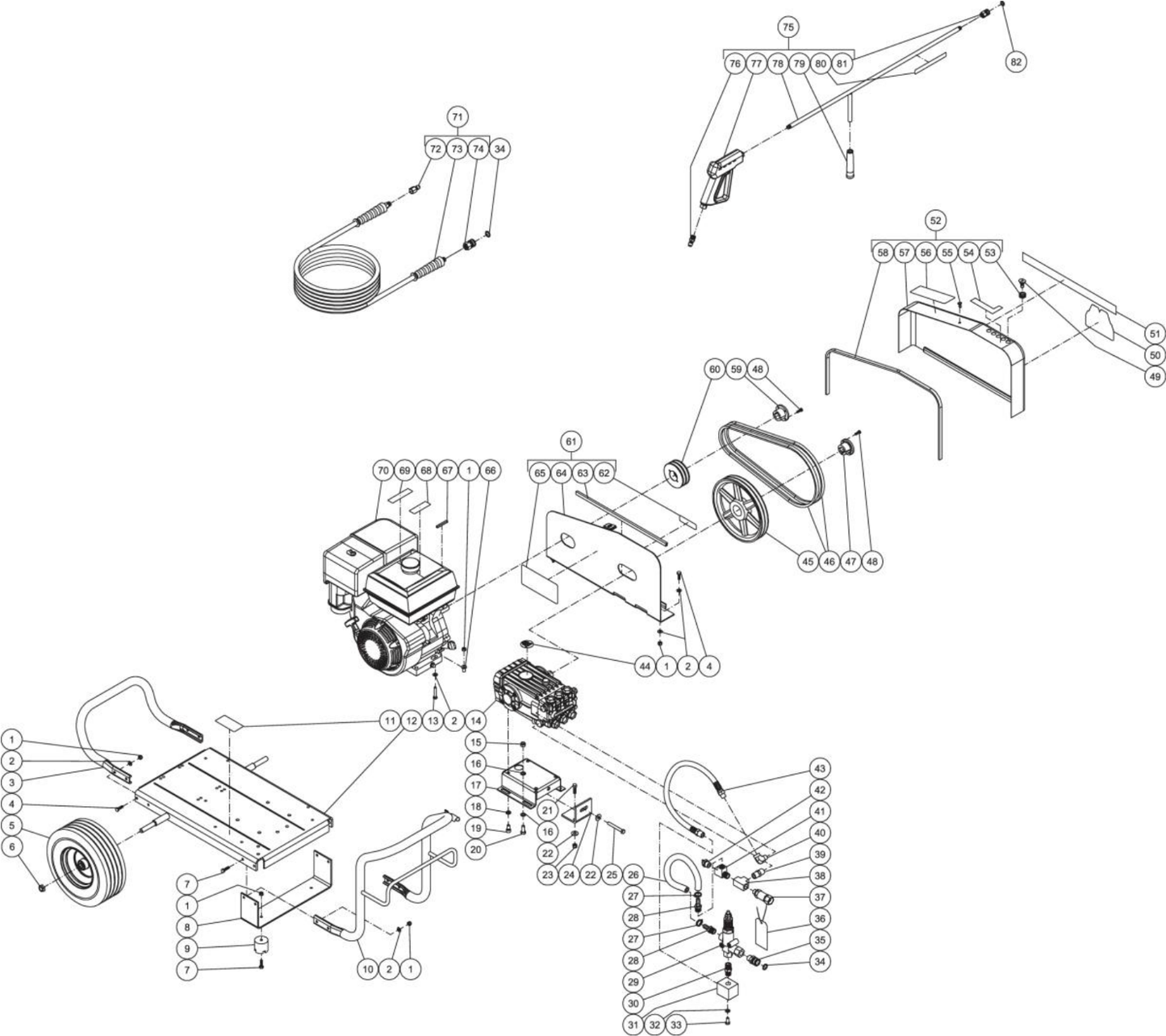

CW-2505-4MGR (sn:10552632-99999999) Frame Assembly Parts By Mi-T-M

CW-2505-4MGR (sn:10552632-99999999) Frame Assembly Parts By Mi-T-M

  • CW-2505-4MGR (sn:10552632-99999999) Frame Assembly Parts By Mi-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
30-0157 Locknut for MiTM Pressure Washers 300157 30-0157 Locknut for MiTM Pressure Washers 300157
$5.93
2
28-0003 Washer for ABS Air Compressor by Mi-T-M 280003 28-0003 Washer for ABS Air Compressor by Mi-T-M 280003
$1.99
4
27-0067 Bolt for MiTM Pressure Washers 270067 27-0067 Bolt for MiTM Pressure Washers 270067
$5.93
5
14-0127 Wheel for MiTM Pressure Washers 140127 14-0127 Wheel for MiTM Pressure Washers 140127
$191.66
6
30-0117 Nut for MiTM Air Compressors by MiTM 300117 30-0117 Nut for MiTM Air Compressors by MiTM 300117
$4.43
7
27-0068 Bolt for MiTM Air Compressors by MiTM 270068 27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
8
13-0137A01 Underbracket for MiTM Pressure Washers 130137A01 13-0137A01 Underbracket for MiTM Pressure Washers 130137A01
$119.60
9
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008 14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
10
7-0174A01 Handle for MiTM Pressure Washers 70174A01 7-0174A01 Handle for MiTM Pressure Washers 70174A01
$324.50
12
5-0078A01 Base Plate for MiTM Pressure Washers 50078A01 5-0078A01 Base Plate for MiTM Pressure Washers 50078A01
$634.35
13
27-0070 Screw for MiTM Air Compressors by MiTM 270070 27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
14
3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM 3-0202 BELTGUARD-PUMP (3-0202 PUMP ONLY) BY MITM
$80.00
15
30-0161 Locknut for MiTM Pressure Washers 300161 30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
16
28-0030 Washer for MiTM Pressure Washers 280030 28-0030 Washer for MiTM Pressure Washers 280030
$7.65
17
5-0101A01 PUMP BRACKET BY MITM 5-0101A01 PUMP BRACKET BY MITM
$73.29
18
29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055 29-0055 Lockwasher for ABS Air Compressor by Mi-T-M 290055
$1.99
19
27-8471 BOLT BY MITM 27-8471 BOLT BY MITM
$7.65
20
27-0166 BOLT BY MITM 27-0166 BOLT BY MITM
$2.55
21
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118 27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
22
28-0023 Washer for MiTM Pressure Washers by MiTM 280023 28-0023 Washer for MiTM Pressure Washers by MiTM 280023
$4.49
23
30-0159 LOCKNUT BY MITM 30-0159 LOCKNUT BY MITM
$0.68
24
13-0003A01 BRACKET BY MITM 13-0003A01 BRACKET BY MITM
$36.93
25
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576 27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
26
15-0035 Hose 3/4 Idx22"Bypass 250Psi for AC1-PE15-08M Air Compressor by Mi-T-M 150035 15-0035 Hose 3/4 Idx22"Bypass 250Psi for AC1-PE15-08M Air Compressor by Mi-T-M 150035
$18.00
27
42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011 42-0011 Hose Clamp for ABS Air Compressor by Mi-T-M 420011
Call for Price call for price call for price
28
23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045 23-0045 Barb 1/2Mp X 1/2 Hose Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230045
$11.46
29
8-0032 Unloader for MiTM Pressure Washers 80032 8-0032 Unloader for MiTM Pressure Washers 80032
$553.40
30
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031 24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
31
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012 51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
32
29-0008 LOCKWASHER BY MITM 29-0008 LOCKWASHER BY MITM
$2.55
33
27-0116 BOLT BY MITM 27-0116 BOLT BY MITM
$2.55
34
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123 25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
35
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029 17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
36
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097 34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
37
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206 19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
38
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043 23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
39
*23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012 *23-0012 Nipple 1/2M X 1/2M Hex Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230012
$11.07
40
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105 24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
41
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124 23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
42
22-0005 Thermal Relief Valve BY MITM 22-0005 Thermal Relief Valve BY MITM
$10.94
43
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024 15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
45
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040 10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
46
*11-0011 Cog Belt Ax46 for Mi-T-M CA-2703-8MRB by MiTM 110011 *11-0011 Cog Belt Ax46 for Mi-T-M CA-2703-8MRB by MiTM 110011
$25.36
47
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017 9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
48
27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015 27-0015 Bolt for ABS Air Compressor by Mi-T-M 270015
$1.99
49
18-0410 Nozzle 00055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180410 18-0410 Nozzle 00055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180410
$7.95
49
18-0411 Nozzle 15055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180411 18-0411 Nozzle 15055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180411
$7.95
49
18-0412 Nozzle 25055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180412 18-0412 Nozzle 25055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180412
$7.95
49
18-0413 Nozzle 40055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180413 18-0413 Nozzle 40055 Qc for AC1-HE02-05M1 Air Compressor by Mi-T-M 180413
$7.95
52
851-0348 BELTGUARD COVER ASSEMBLY (INC. 37-43) BY MITM 851-0348 BELTGUARD COVER ASSEMBLY (INC. 37-43) BY MITM
$180.66
53
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001 33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
54
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500 34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
55
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197 33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
58
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM 33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
63
33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM 33-0020 EDGING *(FOURTEEN FEET REQUIRED) BY MITM
$6.57
59
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005 9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
60
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067 10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
61
851-0349 Beltguard Back Assembly (Inc. 20-24) for MiTM Pressure Washers 8510349 851-0349 Beltguard Back Assembly (Inc. 20-24) for MiTM Pressure Washers 8510349
$228.77
66
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169 33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
67
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078 43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
70
1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086 1-0086 Engine Honda 13Hp Recoil for AC2-PH08-30M Air Compressor by Mi-T-M 10086
$1,902.75
70
1-0176 Engine - Robin (0Mrb) for MiTM Pressure Washers by MiTM 10176 1-0176 Engine - Robin (0Mrb) for MiTM Pressure Washers by MiTM 10176
$2,042.64
71
851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338 851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338
$534.65
72
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006 17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
73
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209 15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
74
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004 17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
75
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095 851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
76
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005 17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
77
16-0001 Gun for MiTM Pressure Washers 160001 16-0001 Gun for MiTM Pressure Washers 160001
$151.43
78
16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418 16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418
$38.88
79
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002 7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
81
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001 17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
82
25-0122 O-RING (REPLACEMENT ONLY) BY MITM 25-0122 O-RING (REPLACEMENT ONLY) BY MITM
$1.56
-
71-1032 DECAL SET BY MITM 71-1032 DECAL SET BY MITM
$15.53
3
Call for Price > call for price > call for price
