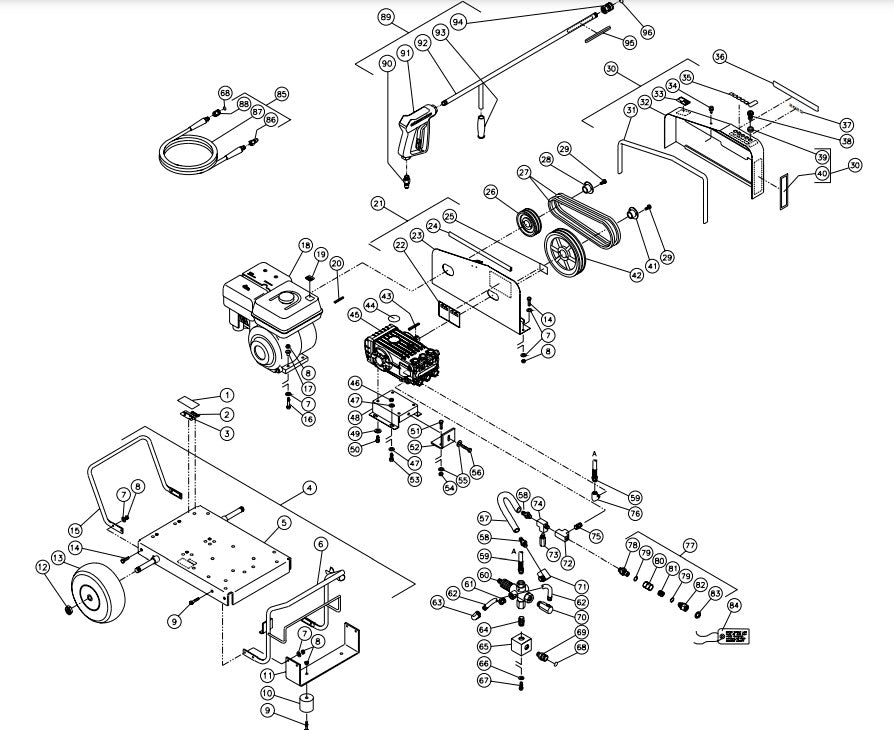

CW-2505-4UGH Frame Assembly Parts by MI-T-M

CW-2505-4UGH Frame Assembly Parts by MI-T-M

  • CW-2505-4UGH Frame Assembly Parts by MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
5-0078A01 Base Plate for MiTM Pressure Washers 50078A01
$634.35
2
7-0101A01 Front Handle for MiTM Pressure Washers 70101A01
$324.50
3
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
4
13-0042A01 Underbracket for MiTM Pressure Washers 130042A01
$92.19
5
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
6
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
7
7-0104A01 Rear Handle for MiTM Pressure Washers 70104A01
$126.84
8
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
9
33-0169 Shim Engine for AC1-PE03-08M Air Compressor by Mi-T-M 330169
$5.99
10
1-0039 Engine- 11.0 Hp Honda for MiTM Air Compressors by MiTM 10039
Call for Price call for price call for price
11
34-0588 Decal- Caution: Allow To Cool for MiTM Pressure Washers 340588
$25.50
12
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
13
851-0215 Beltguard Back for MiTM Pressure Washers 8510215
$303.21
14
34-0498 Decal- Warning/Caution for MiTM Pressure Washers 340498
Call for Price call for price call for price
15
33-0020 Edging *(Fourteen Feet Required) for MiTM Pressure Washers 330020
$19.71
16
10-0067 Sheave 2Ak41H (3.70 P.D.) for AM1-PH65-08M Air Compressor by Mi-T-M 100067
$55.22
17
851-0218 Beltguard Cover for MiTM Pressure Washers 8510218
$343.65
18
34-0130 Decal- Warning: Muffler Hot for MiTM Pressure Washers 340130
$5.93
19
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
20
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
21
34-0927 Decal- Stripe for MiTM Pressure Washers 340927
Call for Price call for price call for price
22
34-0416 Decal-White Die Cut 2505 for MiTM Pressure Washers 340416
Call for Price call for price call for price
23
18-0035 Spray Nozzle- 0005.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180035
$20.94
24
18-0041 Spray Nozzle- 1505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180041
$20.94
25
18-0062 Spray Nozzle- 2505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180062
$20.94
26
18-0132 Spray Nozzle - 40055 for MiTM Pressure Washers 180132
Call for Price call for price call for price
27
34-0499 Decal-Operating Instructions for MiTM Pressure Washers 340499
Call for Price call for price call for price
28
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
29
34-1036 Decal- Pump I.D. for MiTM Pressure Washers 341036
$9.95
30
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
31
30-0161 Locknut for MiTM Pressure Washers 300161
$7.65
32
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
33
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
34
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
35
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
36
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
37
30-0159 LOCKNUT BY MITM
$0.68
38
15-0022 Hose *(Two Feet Required) for MiTM Pressure Washers 150022
$20.88
39
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
40
15-0024 Hose 3/8X24" 3500Psi R2 Black for AC1-PE02-08M Air Compressor by Mi-T-M 150024
$32.65
41
8-0270 Unloader for MiTM Pressure Washers 80270
$597.20
42
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
43
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
44
24-0031 Nipple 1/2M X 1/2M Hex Steel for MI-T-M 3004-0ME1 CW Series by MiTM 240031
$7.89
45
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
46
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
47
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
48
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
49
22-0146 Easy Start Valve for MiTM Pressure Washers 220146
$110.16
50
23-0035 Elbow 1/2M X 1/2F 90 Str Brass for MiTM Pressure Washers by MiTM 230035
$36.27
51
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
52
22-0005 Thermal Relief Valve BY MITM
$10.94
53
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
54
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
55
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
56
25-0517 O-Ring 10 13/16" X 1/16" for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 250517
$4.85
57
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
58
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
59
851-0007 Pressure Hose Assembly (Inc. 31-33) for MiTM Air Compressors by MiTM 8510007
Call for Price call for price call for price
60
15-0003 Pressure Hose (3000 Psi) for MiTM Air Compressors by MiTM 150003
Call for Price call for price call for price
61
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
62
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
63
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
64
16-0001 Gun for MiTM Pressure Washers 160001
$151.43
65
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
66
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
67
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
68
34-0572 Decal- Warning: Risk Of Injection for MiTM Pressure Washers 340572
$15.30
69
25-0122 O-Ring (Replacement Only) for MiTM Pressure Washers 250122
$4.68
