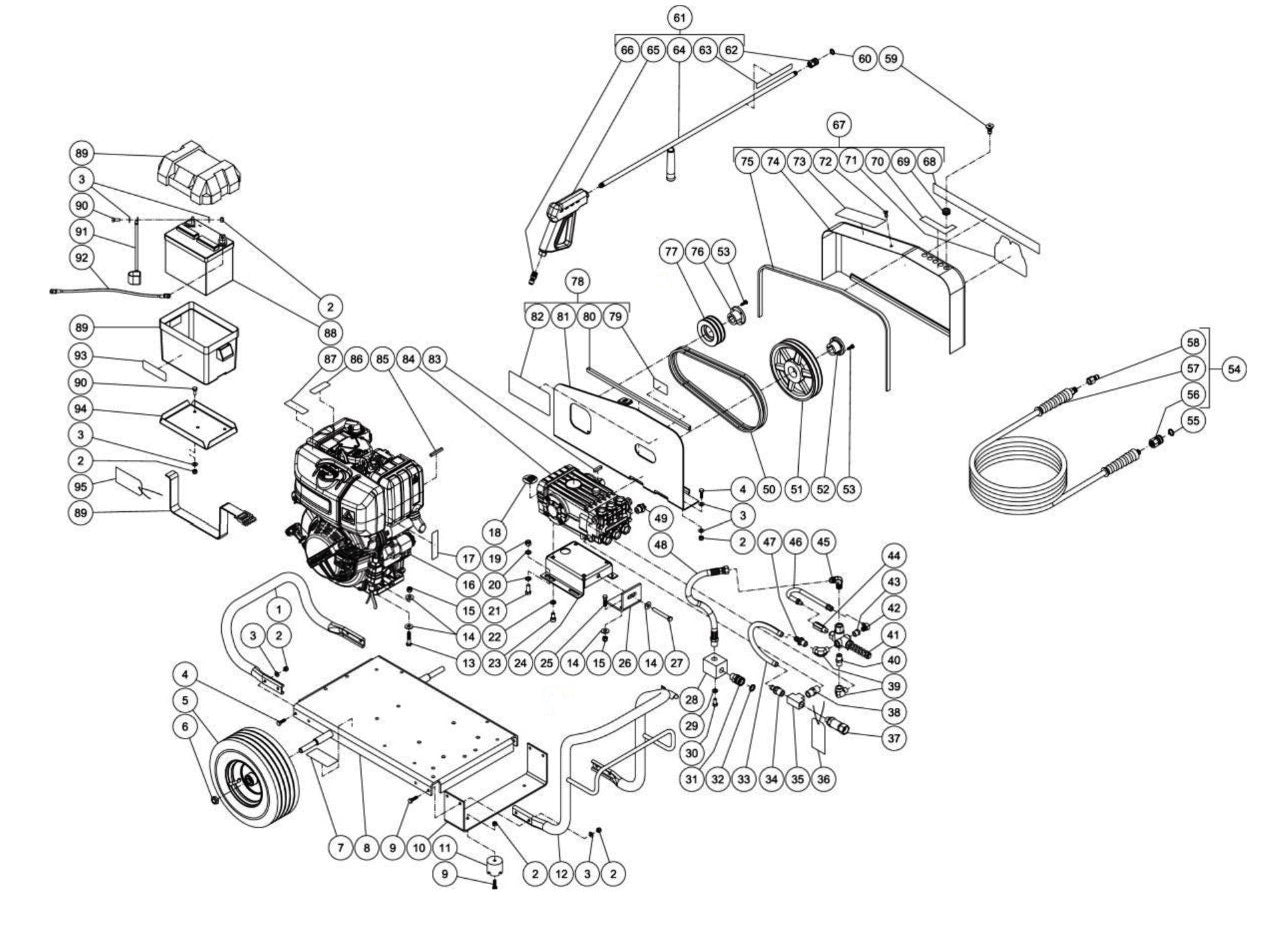

CW-3004-0MKD (sn:0-10823804) Frame Assembly Parts By MI-T-M

CW-3004-0MKD (sn:0-10823804) Frame Assembly Parts By MI-T-M

  • CW-3004-0MKD (sn:0-10823804) Frame Assembly Parts By MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
001211253 Bolt for MVC88 Plate Tamper by Multiquip Mikasa
$5.20
2
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
3
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
5
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
6
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
8
5-0117A01 Baseplate for MiTM Pressure Washers 50117A01
$550.98
9
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
10
13-0137A01 Underbracket for MiTM Pressure Washers 130137A01
$119.60
11
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
12
7-0174A01 Handle for MiTM Pressure Washers 70174A01
$324.50
13
27-0120 Bolt for MiTM Pressure Washers 270120
$10.49
19
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
20
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
21
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
23
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
24
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
26
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
28
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
30
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
31
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
32
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
55
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
33
15-0022 Hose *(Two Feet Required) for MiTM Pressure Washers 150022
$20.88
34
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
35
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
36
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
37
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
38
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
39
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
41
8-0634 Unloader for MiTM Pressure Washers 80634
$276.21
43
23-0017 Bushing 1/4F X 3/8M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230017
$5.99
44
22-0242 Valve-Easy Start 6000 Psi for AC1-PE03-20M Air Compressor by Mi-T-M 220242
$36.28
46
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
47
23-0140 Barb 3/8Mp X 1/2 Lock Brass for AC1-PE15-20M1 Air Compressor by Mi-T-M 230140
$8.44
48
15-0141 Hose for MiTM Pressure Washers 150141
$73.16
50
11-0017 Cog Belt Ax44 for AC1-PH65-20M Air Compressor by Mi-T-M 110017
$37.79
51
10-0007 Sheave 2Ak84H for AC2-SV11-30M Air Compressor by Mi-T-M 100007
$124.92
54
851-0338 Assy Hose W/Qc 3000 Psi (Inc. 21-24) for MiTM Pressure Washers 8510338
$534.65
56
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
57
15-0209 Hose 3/8X50' 4000Psi R1 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150209
$151.52
59
18-0402 Nozzle 00045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180402
$7.95
59
18-0403 Nozzle 15045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180403
$7.95
59
18-0404 Nozzle 25045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180404
$7.95
59
18-0405 Nozzle 40045 Qc for AC1-PE03-20M Air Compressor by Mi-T-M 180405
$7.95
60
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
61
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
62
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
64
16-0418 Wand-36" W/Handle Chrome for AC2-PR09-30M Air Compressor by Mi-T-M 160418
$38.88
66
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
67
851-0216 Beltguard Cover Assembly (Inc. 30-37) for MiTM Pressure Washers 8510216
$265.04
72
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
74
6-0064A01 Beltguard Cover for MiTM Pressure Washers 60064A01
$187.11
77
10-0074 Sheave 2Ak39H for AC2-SH11-30M Air Compressor by Mi-T-M 100074
$73.82
78
851-0271 Beltguard Back Assy. (24-27) for MiTM Pressure Washers 8510271
$387.03
81
6-0083A01 Beltguard Back for MiTM Pressure Washers 60083A01
$222.06
83
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
84
3-0203 Pump 4.0 Gpm At 3500 Psi for MiTM Pressure Washers 30203
$1,944.18
85
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
88
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
89
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
91
32-9112 Cable for MiTM Pressure Washers 329112
$81.18
92
32-9111 Cable for MiTM Pressure Washers 329111
$70.34
94
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
95
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
-
71-1035 Decal Set for MiTM Pressure Washers 711035
$66.42
4
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
14
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
15
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
22
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
25
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
29
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
40
23-0027 Nipple 3/8M X 3/8M Hex Brass for AC1-HE02-05M1 Air Compressor by Mi-T-M 230027
$7.76
42
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
45
24-0092 Elbow-3/8M X #8Jic M 90 Steel for AC1-HE02-05M by Mi-T-M 240092
$13.46
49
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
52
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
53
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
58
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
65
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
69
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
76
9-0005 Bushing for ABS Air Compressor by Mi-T-M 90005
$21.01
75
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
80
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
90
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
27
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
