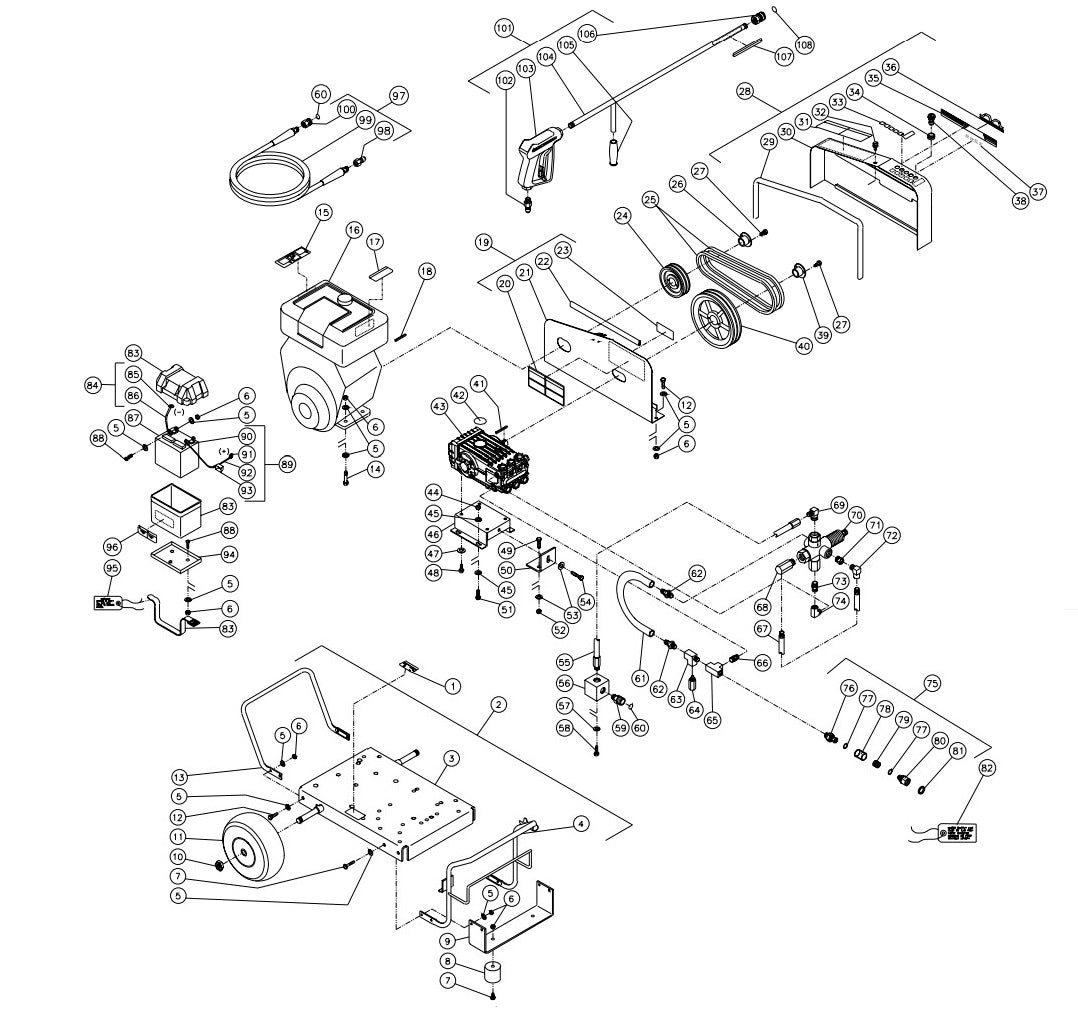

CW-3255-4MV0 (sn:0-10070000) Frame Assembly Parts By MI-T-M

CW-3255-4MV0 (sn:0-10070000) Frame Assembly Parts By MI-T-M

  • CW-3255-4MV0 (sn:0-10070000) Frame Assembly Parts By MI-T-M
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
851-0235 Base Plate Assembly (Inc. 5-15) for MiTM Pressure Washers 8510235
Call for Price call for price call for price
3
5-0078A01 Base Plate for MiTM Pressure Washers 50078A01
$634.35
4
7-0101A01 Front Handle for MiTM Pressure Washers 70101A01
$324.50
5
28-0003 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280003
$1.99
6
30-0157 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300157
$2.85
7
27-0068 Bolt for MiTM Air Compressors by MiTM 270068
$4.43
8
14-0008 Isolator 2" Od X 1.75 for AC2-PR09-30M Air Compressor by Mi-T-M 140008
$11.49
9
13-0042A01 Underbracket for MiTM Pressure Washers 130042A01
$92.19
10
30-0117 Jam Nut for MiTM Pressure Washers 300117
$5.93
11
14-0006 Wheel-13 White-Super Duty for MiTM Air Compressors by MiTM 140006
$128.67
13
7-0111A01 Handle for MiTM Pressure Washers 70111A01
$117.90
14
27-0070 Screw for MiTM Air Compressors by MiTM 270070
Call for Price call for price call for price
15
34-0598 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340598
$5.93
16
851-0099 Engine Assembly for MiTM Pressure Washers 8510099
$6,078.48
17
34-0599 Decal- Caution: Allow To Cool (E/S for MiTM Pressure Washers 340599
$5.93
18
43-0078 Key 1/4 Sq X 2-1/8 for MiTM Air Compressors by MiTM 430078
$17.49
19
851-0215 Beltguard Back for MiTM Pressure Washers 8510215
$303.21
20
34-0812 Decal - Warning (See 71-1040) for MiTM Pressure Washers 340812
$30.60
23
34-0826 Decal- Warning: Beltguard In Place (E/S) for MiTM Pressure Washers 340826
$15.30
24
10-0025 Sheave 2Ak44H for Mi-T-M CA-2403-0MRB by MiTM 100025
$55.76
26
9-0005 Bushing H 1 Motor for AC1-HE15-05M Air Compressor by Mi-T-M 90005
$21.01
28
851-0216 Beltguard Cover Assembly (Inc. 30-37) for MiTM Pressure Washers 8510216
$265.04
31
34-0813 Decal- Warning: Muffler Hot (E/S) for MiTM Pressure Washers 340813
$20.40
32
33-0197 Fastener 1/4 Turn Slotted Stud for AC1-PE03-20M Air Compressor by Mi-T-M 330197
$6.66
33
34-0500 Decal- Nozzles 0, 15, 25, 40 for MiTM Air Compressors by MiTM 340500
Call for Price call for price call for price
35
34-0501 Decal- Mi-T-M Stripe for MiTM Pressure Washers 340501
Call for Price call for price call for price
36
62-0086 Decal- Mi-T-M Small Logo for MiTM Air Compressors by MiTM 620086
Call for Price call for price call for price
37
34-0365 Decal- Die Cut 3255 for MiTM Pressure Washers 340365
Call for Price call for price call for price
38
18-0035 Spray Nozzle- 0005.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180035
$20.94
38
18-0041 Spray Nozzle- 1505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180041
$20.94
38
18-0062 Spray Nozzle- 2505.5 (Cd-1504-0Mhb/Vb) for MiTM Pressure Washers 180062
$20.94
38
18-0132 Spray Nozzle - 40055 for MiTM Pressure Washers 180132
Call for Price call for price call for price
40
10-0040 Sheave 2Ak104H for AC1-HR45-05M Air Compressor by Mi-T-M 100040
$90.41
41
43-0048 Pump Key 7Mm X 8Mm X 35Mm for AC1-HE15-05M Air Compressor by Mi-T-M 430048
$13.13
43
3-0202 Pump 5.5 Gpm 3500 Psi for AC1-HR45-05M Air Compressor by Mi-T-M 30202
$992.38
44
30-0161 Locknut for MiTM Pressure Washers by MiTM 300161
$4.49
45
28-0030 Washer for MiTM Pressure Washers 280030
$7.65
46
5-0101A01 Pump Bracket for MiTM Pressure Washers 50101A01
$120.93
48
27-8471 Bolt for MiTM Pressure Washers 278471
$15.30
50
13-0003A01 Brace Tightener for MiTM Pressure Washers 130003A01
$60.93
51
27-0166 Bolt for MiTM Pressure Washers 270166
$7.65
55
15-0141 Hose for MiTM Pressure Washers 150141
$73.16
56
51-0012 Manifold Block Cw 2X2X2-3/8 for MI-T-M 3004-0ME1 CW Series by MiTM 510012
$21.03
58
27-0116 Bolt for MiTM Pressure Washers 270116
$7.65
59
17-0029 Qc 1/2M X 3/8 Socket-Brass for MI-T-M 3004-0ME1 CW Series by MiTM 170029
$17.66
60
25-0123 O-Ring 1/2 X 11/16 for AC1-HE15-05M Air Compressor by Mi-T-M 250123
$1.99
61
15-0022 By-Pass Hose for MiTM Pressure Washers 150022
$20.88
62
23-0005 Barb 1/2Mp X 1/2 Lock Brass for AC1-PE15-08M Air Compressor by Mi-T-M 230005
$12.39
63
23-0124 Tee 1/2Mx1/2Fx1/2F Street-Br for AC1-HE15-05M Air Compressor by Mi-T-M 230124
$32.05
65
23-0043 Tee 1/2" All Female Brass for MI-T-M 3004-0ME1 CW Series by MiTM 230043
$25.06
66
23-0012 Nipple 1/2M X 1/2M Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230012
$12.87
67
15-0140 Bypass Hose 1/4X10" 250Psi Blk for AC1-PE03-20M Air Compressor by Mi-T-M 150140
$28.94
68
22-0146 Easy Start Valve for MiTM Pressure Washers 220146
$110.16
70
8-0270 Unloader for MiTM Pressure Washers 80270
$597.20
71
23-0056 Reducer 1/2M X 1/4 Hex Brass for AC1-HE15-05M Air Compressor by Mi-T-M 230056
$7.40
73
24-0024 Nipple 1/2Mpx3/8Mp Hex Steel for AC1-HE15-05M Air Compressor by Mi-T-M 240024
$12.52
74
24-0105 Elbow-3/8Mx3/8F Steel Forge 90 for AC1-HE15-05M Air Compressor by Mi-T-M 240105
$23.15
75
19-0206 Filter-Inlet 1/2Mx3/4F Garden for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190206
$45.71
77
25-0517 O-Ring 10 13/16" X 1/16" for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 250517
$4.85
78
19-0208 Screen-Strainer 304 Ss 60 Mesh for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190208
$5.99
79
19-0209 Sight Glass Filter for AC1-PH55-08M (After S/N 20000951) Air Compressor by Mi-T-M 190209
$8.69
81
26-0001 Garden Hose Gasket for AC1-HE15-05M Air Compressor by Mi-T-M 260001
$1.99
82
34-0097 Tag- Water Inlet Supply for MiTM Pressure Washers 340097
$5.93
83
33-0092 Battery Box-U1 11X7-1/2X8-3/4 for AC1-HH04-05M Air Compressor by Mi-T-M 330092
$34.70
84
851-0344 Battery Cable Assembly (Inc. 78-79) for MiTM Pressure Washers 8510344
$73.79
85
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
90
32-0097 Terminal 4Ga 5/16 Ring for AC1-PE03-20M Air Compressor by Mi-T-M 320097
$5.99
86
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
92
32-0065 Cable #4 Welding-Neop for AC1-HE15-05M Air Compressor by Mi-T-M 320065
$13.46
87
32-0058 Battery Sm Bci#Vi 165Cca for AC1-HH04-05M Air Compressor by Mi-T-M 320058
$112.31
89
851-0082 Battery Cable Assembly (Inc. 89, 90) for MiTM Pressure Washers 8510082
$87.35
91
32-0098 Terminal 4Ga 1/4 Ring for AC1-HE15-05M Air Compressor by Mi-T-M 320098
$5.99
93
33-0004 Battery Cable Cover Red for AC1-PE03-20M Air Compressor by Mi-T-M 330004
$5.99
94
20-0264A01 Battery Retainer for MiTM Pressure Washers 200264A01
$79.64
95
34-0096 Tag- Battery for MiTM Pressure Washers 340096
Call for Price call for price call for price
96
34-0848 Decal- Caution: Disconnect Battery (E/S) for MiTM Pressure Washers 340848
$35.67
97
851-0006 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 8510006
$263.34
99
15-0004 Hose 3/8X50' 4500Psi R2 Gray for AC1-HE15-05M Air Compressor by Mi-T-M 150004
$203.08
100
17-0004 Qc 3/8F X 3/8 Socket Brass for AC1-HE15-05M Air Compressor by Mi-T-M 170004
$16.25
101
851-0095 Gun, Black Wand Grip W/Qc for AC2-PR09-30M Air Compressor by Mi-T-M 8510095
$188.60
102
17-0005 Qc 3/8M X 3/8 Plug Ss for AC1-HE15-05M Air Compressor by Mi-T-M 170005
$16.25
104
16-0120A01 Wand for MiTM Air Compressors by MiTM 160120A01
$54.74
105
7-0002 Handle Grip For Wand for MiTM Air Compressors by MiTM 70002
$8.67
106
17-0001 Qc 1/4F X 1/4 Socket Brass for AC2-PR09-30M Air Compressor by Mi-T-M 170001
$19.94
107
34-1253 Decal- Warning: Risk Of Injection (E/S) for MiTM Pressure Washers 341253
$15.30
108
25-0122 O-Ring 3/8 X 9/16 for AC2-PR09-30M Air Compressor by Mi-T-M 250122
$2.99
12
27-0067 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270067
$1.99
22
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
29
33-0020 Edging *(Six Feet Required) for ABS Air Compressor by Mi-T-M 330020
$5.99
25
11-0011 MITM COG BELT AX46 for MI-T-M CD-1002-2MUH by MiTM 110011
$25.36
27
27-0015 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270015
$1.99
34
33-0001 Grommet 1/2Id X 3/4Gd-1/8Gw for AC1-HE02-05M by Mi-T-M 330001
$1.99
39
9-0017 Pump Bushing H24Mm Spc for AC1-HE02-05M by Mi-T-M 90017
$21.01
47
29-0055 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290055
$1.99
49
27-0118 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270118
$1.99
52
30-0159 Locknut for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 300159
$2.85
53
28-0023 Washer for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 280023
$1.99
54
27-0576 Bolt for ABS Air Compressor by Mi-T-M 270576
Call for Price call for price call for price
57
29-0008 Lockwasher for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 290008
$1.99
64
22-0005 Valve-Thermal Relief 1/2M 145F for AC1-HE02-05M by Mi-T-M 220005
$20.68
69
24-0074 90° Elbow Fitting for ABS Air Compressor by Mi-T-M 240074
$16.62
72
23-0237 Elbow 1/4M X 1/4 45Deg Flare for AC1-HE02-05M by Mi-T-M 230237
$12.39
88
27-0066 Bolt for AAS-23105-80H AAS-23105-80V AAS-20305-80H AAS-20305-80V AAS-23305-80H AAS-23305-80V AAS-46305-80H AAS-46305-80V Air Compressor by Mi-T-M 270066
$1.99
98
17-0006 Qc 3/8F X 3/8 Plug Ss for AC1-HE02-05M by Mi-T-M 170006
$22.62
103
16-0001 Trigger Gun 5000 Psi for AC1-HE02-05M by Mi-T-M 160001
$63.36
